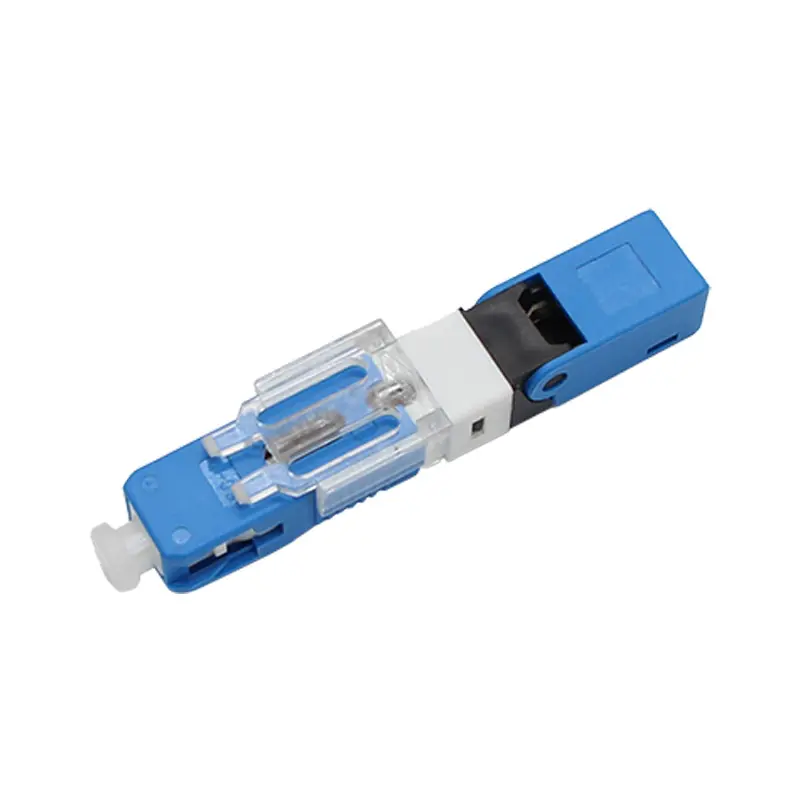

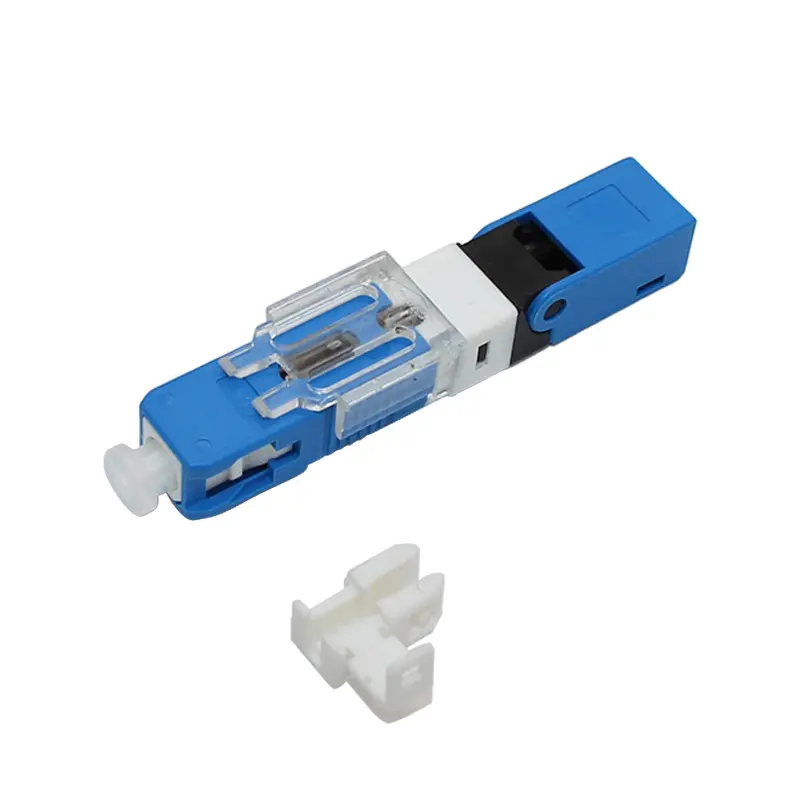

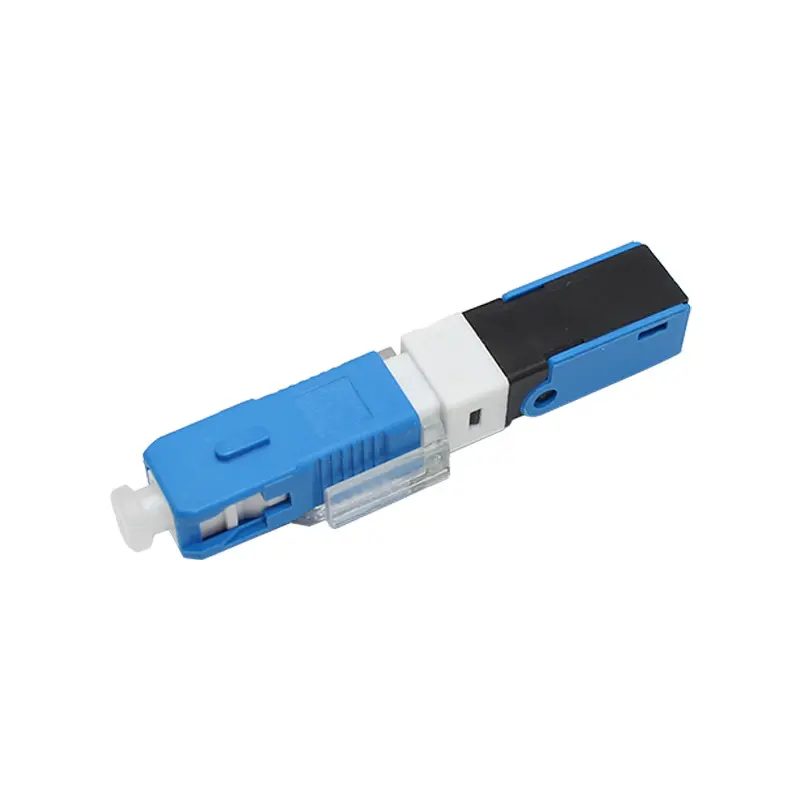

SC UPC Fiber Optic Fast Field Connector
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
The SC UPC Fast Field Connector is designed for fast, stable, and repeatable fiber termination in FTTH access networks and indoor optical installations.
Using a pre-polished UPC ferrule and mechanical splicing structure, this connector allows technicians to complete fiber termination in about 15 seconds, without epoxy, curing, or fusion splicing. It is fully compatible with bow-type FTTH drop cables (3.0 × 2.0 mm / 1.6 × 2.0 mm) and single-mode fibers (G.652 / G.657).
With low insertion loss (≤0.2 dB typical) and a return loss of ≥50 dB, the SC UPC fast connector delivers reliable optical performance for fiber outlets, termination boxes, and customer premises equipment where ease of installation and signal stability are required.
| Connector Type | SC UPC | Applicable Cable | 3.0 × 2.0 mm / 1.6 × 2.0 mm Bow-type Drop Cable |
| Fiber Type | Single-mode (G.652 / G.657) | Fiber Diameter | 125 μm |
| Coating Diameter | 250 μm | Size | 51 × 9 × 7.55 mm |
| Installation Time | ≈ 15 seconds (excluding fiber presetting) | Insertion Loss | ≤ 0.2 dB, Max ≤ 0.4 dB (1310 nm & 1550 nm) |
| Return Loss | ≥ 50 dB | Success Rate | >98% |
| Reusable Times | >10 times | Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N | Operating Temperature | -40 ~ +85 °C |
| Online Tensile Strength Test (20 N) | IL ≤ 0.3 dB | Mechanical Durability (500 times) | IL ≤ 0.3 dB |
| Drop Test (4 m concrete floor) | IL ≤ 0.3 dB |
Product Information
FAQ
What is SC UPC fast field connector mainly used for?
Does this connector require fusion splicing or epoxy?
How long does installation usually take?
Can this fast connector be reused?
