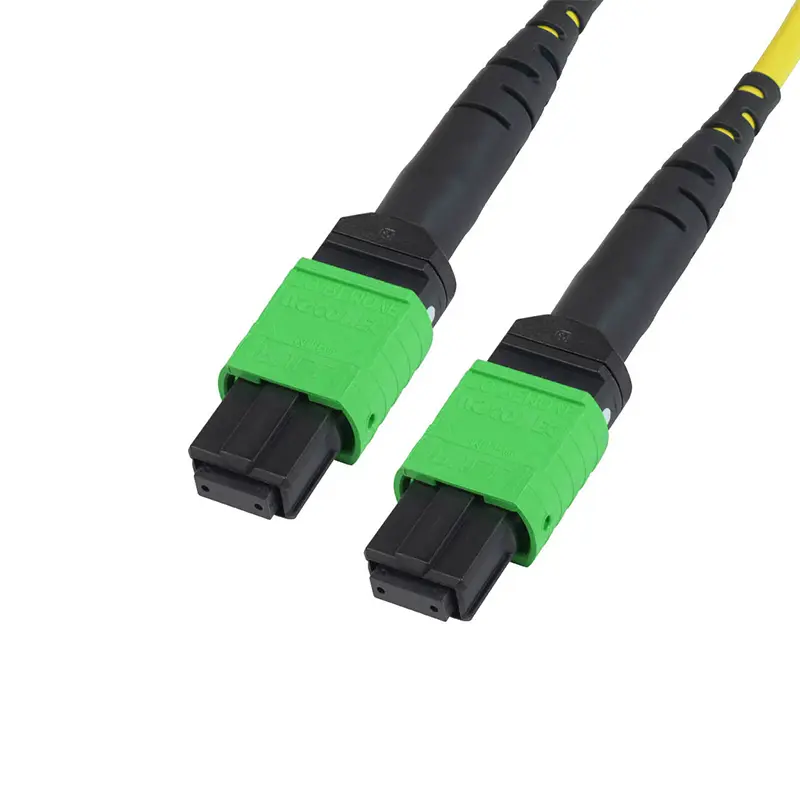

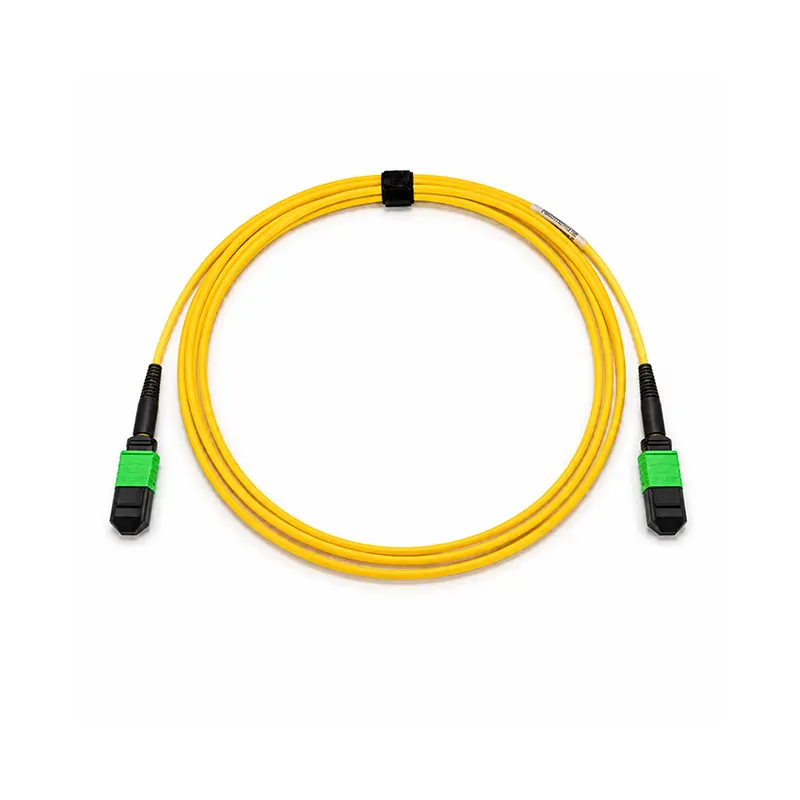

MTP-Compatible 12F Patch Cable SingleMode APC
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
This MTP-compatible 12F patch cable is designed for single-mode high-density cabling where MTP-style connector compatibility and precise fiber alignment are required. It can be used in data centers, telecom rooms, cassettes, patch panels and high-performance fiber distribution systems. The APC polished interface and bend-insensitive single-mode fiber help support stable low-loss performance in compact cable pathways. YingFeng provides custom length, polarity, cable jacket, labeling and packaging options for OEM and project orders. Testing can include insertion loss, return loss, polarity and end-face inspection before shipment.
| Connector A | MTP-Compatible / APC | Connector B | MTP-Compatible / APC |
| Fiber Mode | Single Mode 9/125um | Wavelength | 1310 / 1550nm |
| Glass Fiber | G.657.A1, G.657.A2 optional | Fiber Count | 12 Fibers |
| Cable Type | Patch Cable | Polish Type | APC to APC |
| Polarity | Type A, Type B, Type C optional | Cable Jacket Material | LSZH |
| Cable Outside Diameter | 3.0mm | Insertion Loss | ≤ 0.35dB |
| Return Loss | ≥30dB | Long-term Tensile Load | 150N |
| Short-term Tensile Load | 400N | Operating Temperature | -10 to +60°C |
| Storage Temperature | -10 to +70°C |
Product Information
FAQ
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
