MPO-24 to 3x MPO-8 Breakout Cable Single Mode APC
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

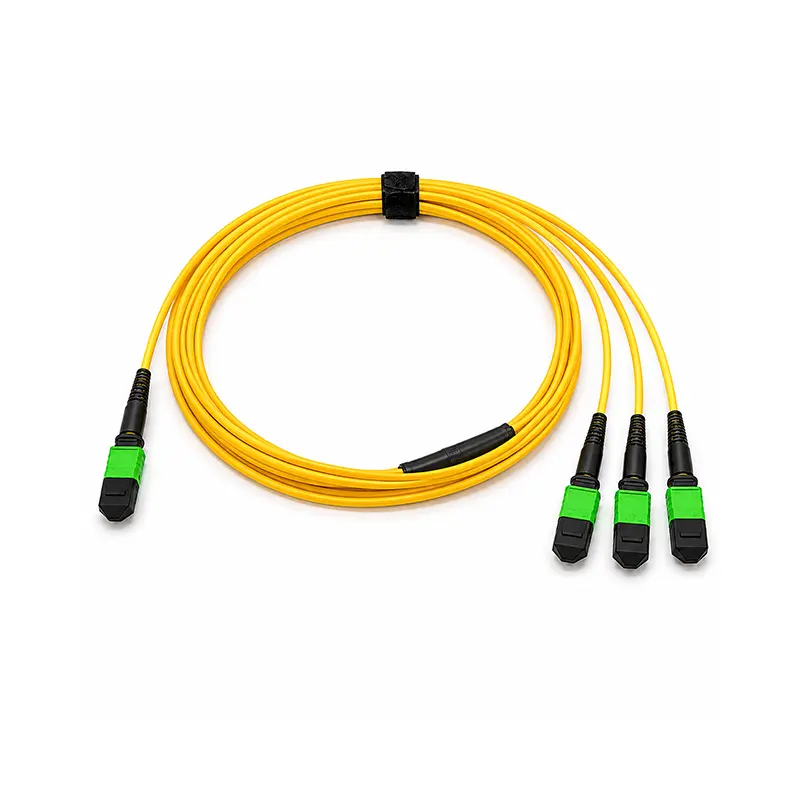

This MPO-24 to 3x MPO-8 breakout cable is used to split a 24-fiber MPO connection into three 8-fiber MPO branches for migration, distribution and high-density cabling projects. It is suitable for data center equipment rooms, fiber cassettes, patch panels, distribution frames and structured cabling systems where flexible fanout routing is required. The single-mode APC design helps support stable return loss and reliable transmission performance. YingFeng can customize branch length, total cable length, polarity, fanout structure, labeling and packaging according to project requirements. Each cable can be tested for insertion loss, return loss, polarity and end-face quality before shipment.
| Connector A | MPO-24 / APC | Connector B | 3x MPO-8 / APC |
| Fiber Mode | Single Mode 9/125um | Wavelength | 1310 / 1550nm |
| Glass Fiber | G.657.A1, G.657.A2 optional | Fiber Count | 24 Fibers |
| Cable Type | Breakout Cable | Breakout Structure | 1x MPO-24 to 3x MPO-8 |
| Polish Type | APC to APC | Polarity | LSZH |
| Type B standard, custom polarity optional | 3.0mm | Insertion Loss | ≤ 0.35dB |
| Return Loss | ≥30dB | Long-term Tensile Load | 150N |
| Short-term Tensile Load | 400N | Operating Temperature | -10 to +60°C |
| Storage Temperature | -10 to +70°C |
Product Information
FAQ
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
