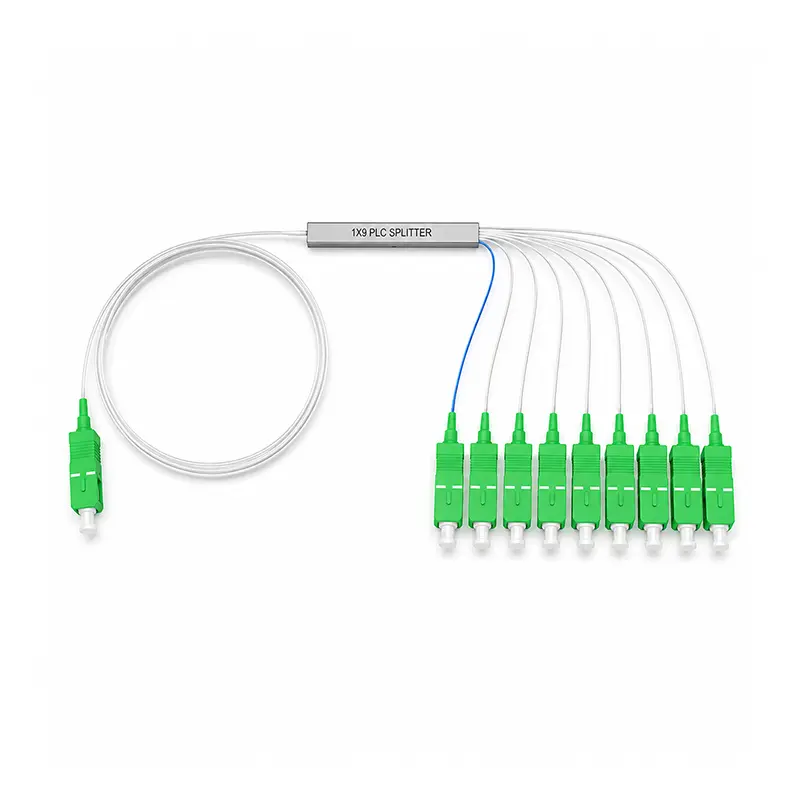

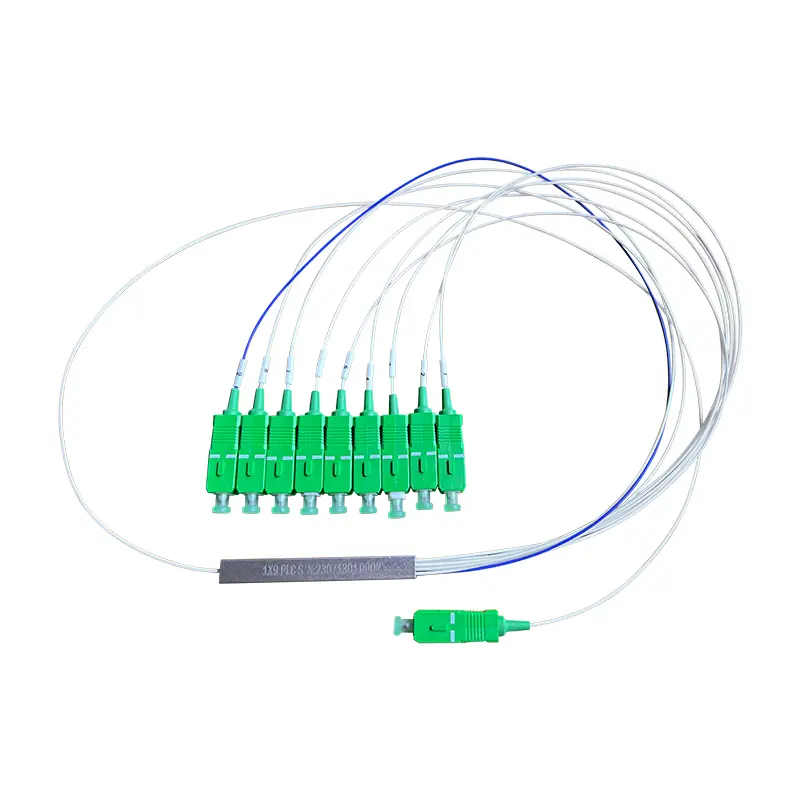

1×9 Unequal PLC Splitter SC/APC Single Mode
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
The 1×9 Unequal PLC Splitter SC/APC is designed for FTTH, PON, and optical distribution networks requiring customized signal splitting ratios. Unlike standard equal split PLC splitters, this uneven splitter distributes optical power according to specific network requirements, making it ideal for hierarchical fiber distribution systems, cascaded ODN architectures, and customized FTTH deployments.
This splitter adopts PLC (Planar Lightwave Circuit) technology to ensure stable optical performance, low insertion loss, and reliable signal transmission over the 1310nm and 1550nm wavelength ranges. Equipped with SC/APC connectors, it provides high return loss performance and reduced back reflection, making it suitable for sensitive optical transmission environments.
The compact structure allows flexible installation in splice closures, fiber distribution boxes, optical cabinets, and telecom access systems. Manufactured with strict quality control standards, the splitter also passes mechanical reliability testing including vibration, drop, fiber tension, and temperature cycling tests for long-term network stability.
YingFeng supports OEM and ODM customization including split ratios, connector types, cable lengths, labeling, and packaging according to different FTTH and telecom project requirements.
| Product Type | Unequal PLC Splitter | Split Ratio | 1x9 |
| Connector Type | SC/APC | Fiber Mode | Single Mode |
| Split Type | Uneven Split | Operating Wavelength | 1310nm / 1550nm |
| Insertion Loss (30%) | ≤16.5dB | Insertion Loss (70%) | ≤2.3dB |
| Uniformity Loss | ≤1.0dB | PDL | ≤0.3dB |
| Return Loss | ≥55dB | Directivity | ≥55dB |
| Application | FTTH / PON / ODN | Installation Type | Mini Module |
| Optical Technology | PLC | Fiber Type | G657A Fiber |
| Operating Environment | Indoor | Compliance Standard | GR-1209 / GR-1221 |
