1×8 Module PLC Splitter SC/APC Single Mode G657A2
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

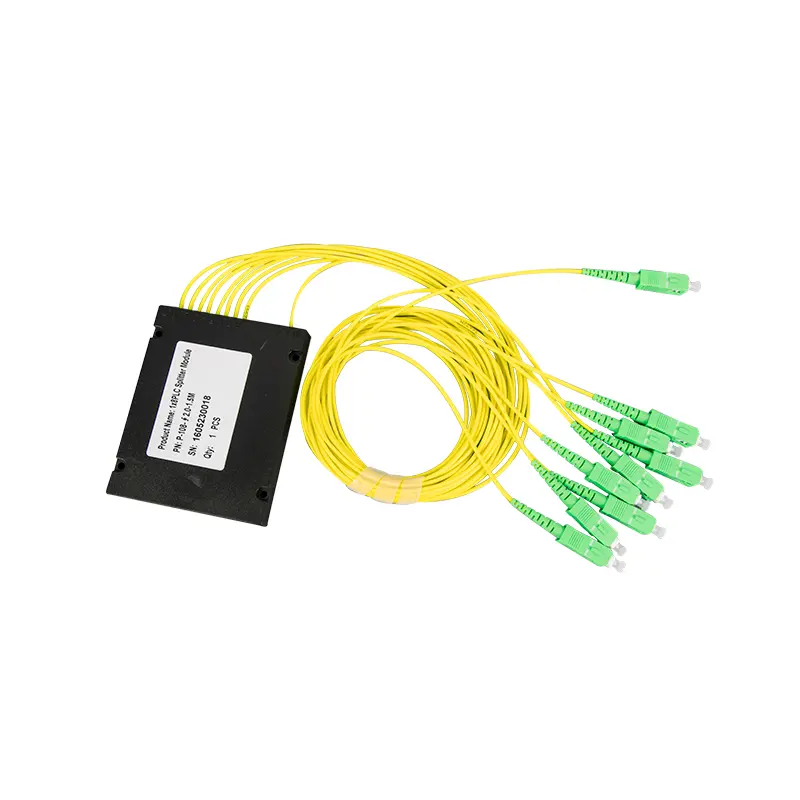

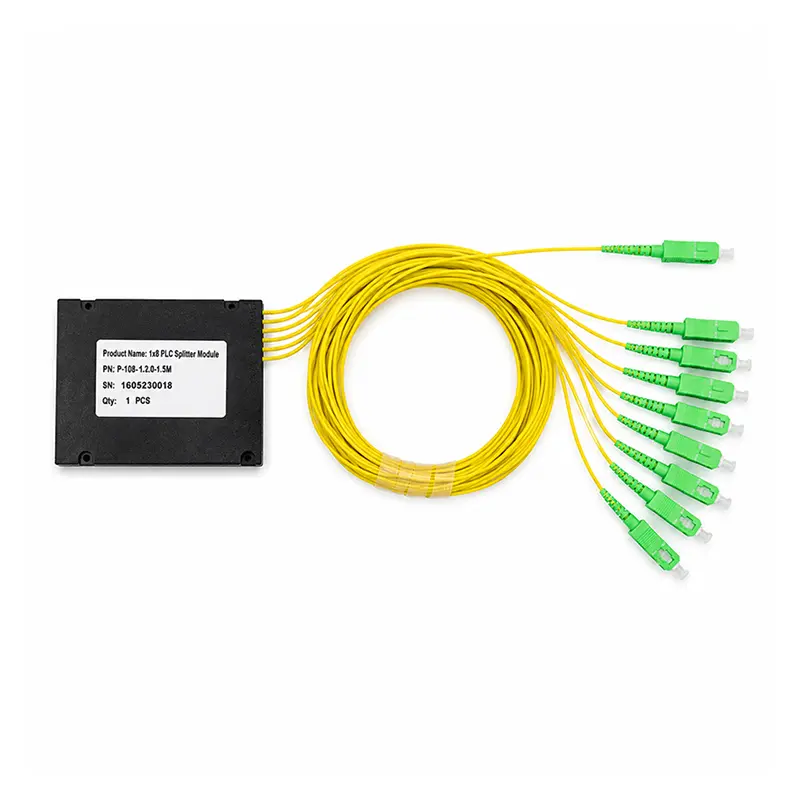

The 1×8 Module PLC Splitter SC/APC is designed for FTTH, PON, CATV, and fiber access networks requiring stable optical signal distribution and compact installation. Built using PLC (Planar Lightwave Circuit) technology, the splitter delivers low insertion loss, high return loss, and reliable optical transmission performance across the full 1260–1650nm wavelength range.
This box-type PLC splitter adopts SC/APC connectors and G657A2 bend-insensitive fiber with LSZH 2.0mm cable protection, making it suitable for indoor optical distribution systems, wall-mounted fiber boxes, telecom cabinets, and optical distribution frames. The compact module structure helps improve cable organization while simplifying installation and maintenance in high-density fiber environments.
The splitter complies with Telcordia GR-1209-CORE, GR-1221-CORE, and YD/T2000.1-2014 standards. It also passes strict environmental and mechanical reliability tests including vibration, drop, fiber tension, humid-heat storage, and temperature cycling tests to ensure long-term network stability.
YingFeng provides OEM and ODM customization services including connector type, cable length, split ratio, labeling, and packaging according to different FTTH and telecom deployment requirements.
| Product Type | Module PLC Splitter | Split Ratio | 1x8 |
| Connector Type | SC/APC | Fiber Type | G657A2 |
| Operating Wavelength | 1260~1650nm | Insertion Loss | ≤10.7dB |
| Return Loss | ≥55dB | Uniformity | ≤0.8dB |
| PDL | ≤0.3dB | Directivity | ≥55dB |
| Cable Diameter | 2.0mm | Cable Material | LSZH |
| Fiber Length | 1m | Module Size | 100×80×10mm |
| Installation Size | 70×73.5mm | Application | FTTH / PON / CATV |
| Compliance Standard | GR-1209 / GR-1221 |
