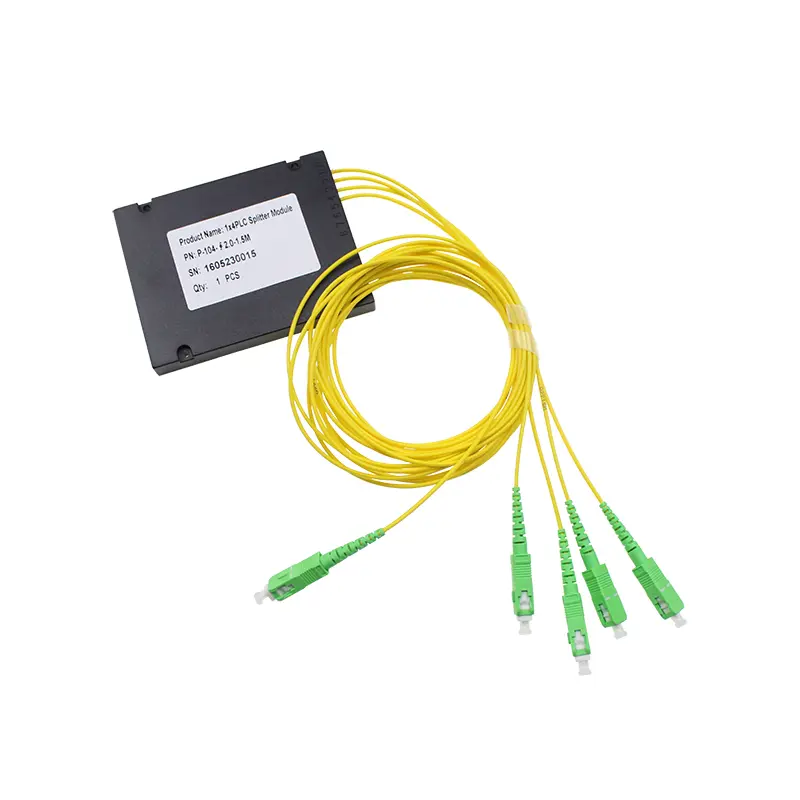

1×4 Module PLC Splitter SC/APC Single Mode G657A2

The 1×4 Module PLC Splitter SC/APC is designed for FTTH, PON, CATV, and fiber distribution applications requiring compact installation and stable optical signal splitting. Manufactured using PLC (Planar Lightwave Circuit) technology, the splitter provides low insertion loss, high return loss, and excellent transmission stability across the full 1260–1650nm wavelength range.

This box-type PLC splitter adopts SC/APC connectors and G657A2 bend-insensitive fiber with LSZH 2.0mm cable protection, making it suitable for indoor fiber management systems, optical distribution boxes, wall-mounted cabinets, and telecom access networks. The compact module design allows convenient installation in limited spaces while improving cable organization and maintenance efficiency.

The splitter complies with Telcordia GR-1209-CORE, GR-1221-CORE, and YD/T2000.1-2014 standards. It also passes strict environmental and mechanical reliability testing including temperature cycling, vibration, fiber tension, and humid-heat storage tests to ensure long-term stable performance in demanding network environments.

YingFeng supports OEM and ODM customization services including connector type, cable length, splitter ratio, labeling, and packaging to meet different FTTH deployment requirements.
