12 Port Outdoor Fiber Optic Distribution Box B01
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
This 12-port outdoor fiber optic distribution box is designed for FTTx fiber termination and distribution applications, supporting up to two incoming fiber optic cables and twelve fiber terminations. With tube-type splitter compatibility and enhanced electrical protection, it provides a stable and cost-effective solution for outdoor fiber access networks.
- 2 In / 12 Out Configuration: Supports termination of up to 2 feeder fiber cables and distribution to 12 output ports for FTTx access networks.
- High-Capacity Splicing Space: Provides internal space for up to 12 fiber splices, suitable for medium-capacity distribution points.
- Splice and Patch Separation Structure: Independent routing areas for fiber splicing and patch cords allow easy capacity expansion and simplified maintenance.
- SC Adapter Compatibility: Supports installation of up to 12 SC adapters for standardized and reliable fiber connections.
- Tube-Type Splitter Support: Compatible with tube-type optical splitters, offering flexible splitter installation options for different network designs.

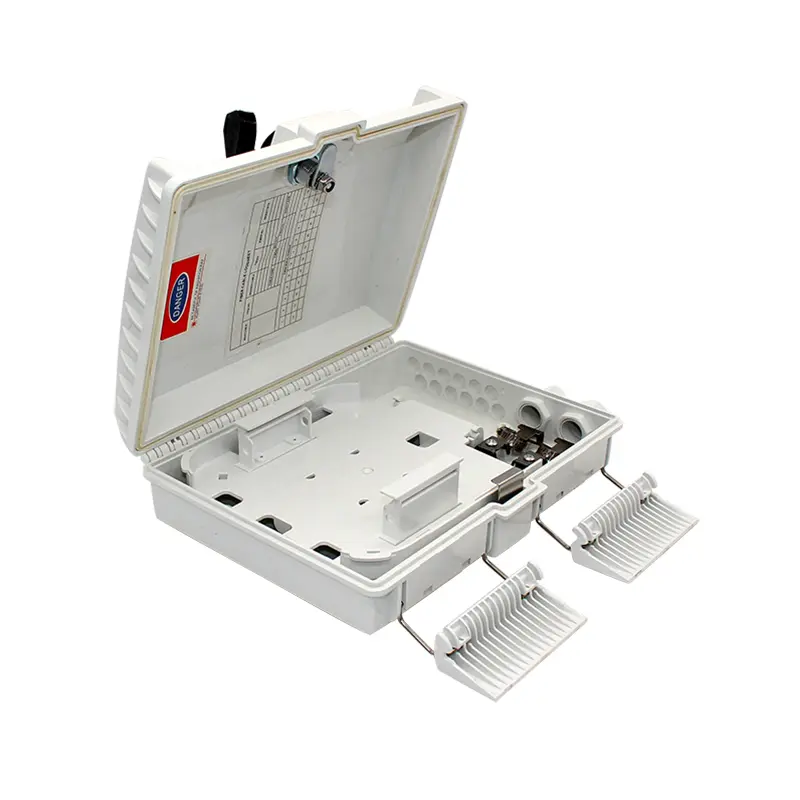

- Internal Turnover Structure: Flip-style internal design allows quick access to internal components during installation and routine maintenance.
- Durable Plastic Enclosure: Made of high-quality plastic with a clean appearance, designed for long-term outdoor use.

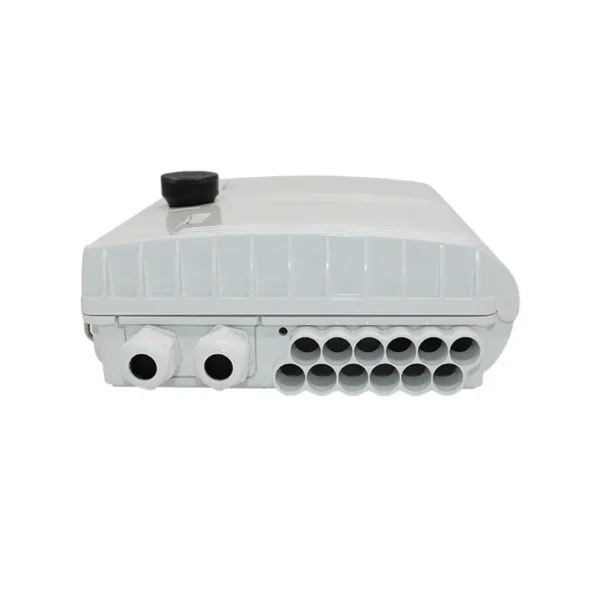

- Multiple Drop Cable Exits: Supports up to 12 drop cable outlets for organized fiber routing.
- IP55 Outdoor Protection: Provides protection against dust and water splashes in outdoor environments.
-
Enhanced Electrical Safety Design:
Insulation resistance ≥ 1000 MΩ at 500V (DC)
Withstand voltage ≥ 3000V (DC) for 1 minute
Integrated grounding design helps improve safety in outdoor installations.
| Product Type: | 12 Cores | Material: | ABS |
| Dimensions(H*W*D): | 267mm*208mm*96mm | Weight: | 1kg |
| Adapter Capacility | 12 PCs | Splitter Type | 1:12 module type splitter |
| Number of Cable Entrance(s) and Exit(s) | 2:12 | Cable Inlet Caliber: | 13 |
| Working Temperature | -40°C～+65°C | Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set | Package Material | Carton box |
Product Information
FAQ
What makes this distribution box different from standard 12-port models?
How many fiber cables and connections does this box support?
Is this box suitable for outdoor deployment?
Is maintenance convenient after installation?
