If you’re just stepping into the world of fiber optics, all the technical terms and abbreviations can feel overwhelming. That’s why I created this fiber glossary series — to help you understand what these terms really mean, in the simplest way possible.

I’ll explain everything from an industry insider’s point of view, using real photos whenever I can (not just fancy renders). I also avoid overly complex explanations, keeping the language clear and direct, so you can be confident you’ll understand the real meaning of these terms after reading.

Today, we’re going to talk about: ODN (Optical Distribution Network)

TABLE OF CONTENTS

What Is an Optical Distribution Network (ODN)?

When people talk about fiber internet, most imagine a straight line running from the service provider directly into your home. But in reality, there’s a whole “middle layer” that makes this possible — and that’s the Optical Distribution Network (ODN).

The ODN is basically everything in between: the physical network of cables and passive components that carry optical signals from the provider’s OLT (Optical Line Terminal) all the way to your ONU/ONT (the devices inside your home or office).

In other words:

  • The ODN is the “middle mile” of the fiber network.
  • It connects the central brain (OLT) with the user-side devices (ONU/ONT).
  • It includes fiber cables, splitters, connectors, adapters, patch panels, and distribution boxes.

Think of the ODN as the highway system of the fiber world. Without it, data would have no way to travel from the central office to individual homes and businesses.

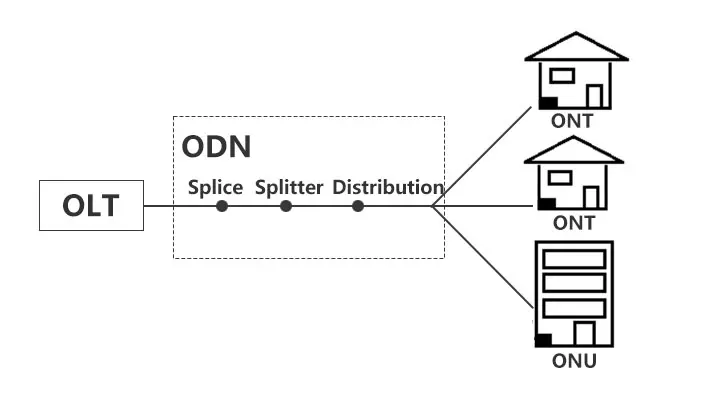

optical distribution network (ODN) schematic diagram

Components of an ODN

The ODN is not a single device — it’s a collection of many passive parts working together. Each of these components has a specific role in ensuring smooth and reliable fiber optic transmission. In addition, Our factory manufactures almost all of these products, which means we provide a complete one-stop solution for building your ODN network.

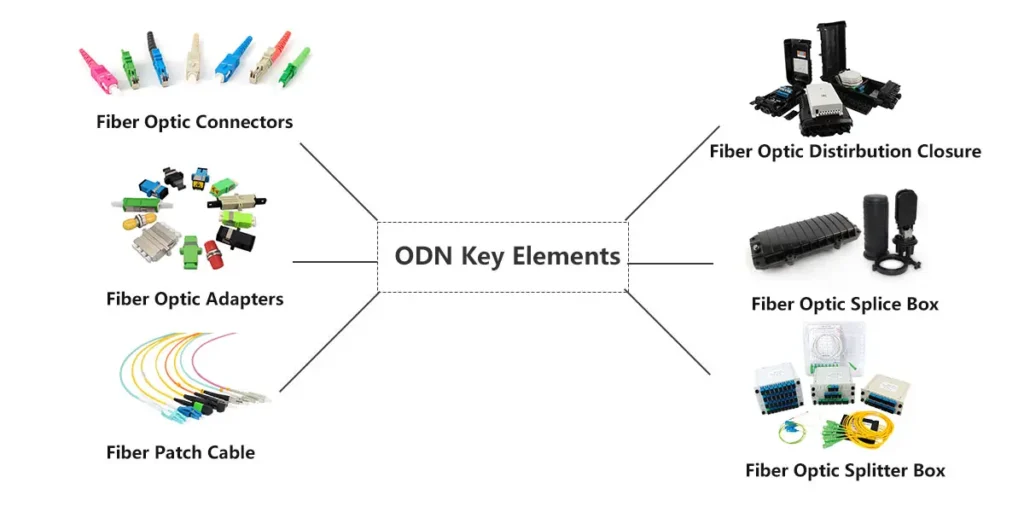

odn key elementors-fiber connector, fiber adapter, fiber patch cable, fiber sppliter, fiber distribution box, fiber splice box

Here are the key elements:

  • Optical Fiber Connectors – These are the “plugs” that allow fibers to be joined or disconnected quickly. High-quality connectors ensure low signal loss and stable performance.
  • Fiber Optic Adapters – Think of these as the “sockets” where connectors meet. They align two connectors precisely so light can pass through smoothly.
  • Fiber Optic Splice Closures – These protective housings secure fiber splices against environmental damage (like water, dust, or stress). They are vital for outdoor and underground installations.
  • Fiber Distribution Boxes / Splitter Boxes – These are like mini-distribution hubs, organizing multiple fibers and often housing optical splitters that divide signals to different users.
  • Fiber Optic Patch Cords – Also called fiber jumpers, these short cables connect your ODN components to active devices like ONUs, ONTs, or switches. Reliable patch cords mean stable end-user connectivity.

Together, these components make up the “backbone” of the ODN. By choosing quality parts from one manufacturer, network operators can save time, reduce costs, and ensure consistent performance across the entire system.

How Does an ODN Work?

Here’s a step-by-step breakdown of how an ODN delivers fiber internet to your home:

  1. From OLT to Feeder Fiber
    The journey starts at the OLT in the service provider’s central office. Light signals are transmitted into feeder fibers — the main optical cables leaving the central hub.
  2. Distribution Stage
    These feeder fibers connect to optical distribution frames and splitters. Here, the single optical signal is divided into multiple paths, allowing one central system to serve many users.
  3. Drop Fiber Connection
    From the distribution points, smaller “drop fibers” run closer to individual homes or buildings.
  4. Termination at ONU/ONT
    Finally, the ODN delivers the optical signal into the ONU or ONT at the customer’s premises, where it gets converted into usable data.

In short, the ODN is the bridge infrastructure that ensures optical signals can be reliably carried from one central point to hundreds or even thousands of end-users.

ODN in Telecom: Why It Matters

You might hear the term ODN meaning in telecom a lot. Simply put, in telecom networks, the ODN is crucial because:

  • It determines how efficiently the network can be deployed.
  • It impacts the signal quality that reaches your devices.
  • It defines how easily the network can be scaled to serve more users.

Without a properly designed ODN, even the fastest OLT or the smartest ONT would be useless, because the “middle layer” of the network would block or weaken the signal.

Key Features and Advantages of ODN

The Optical Distribution Network is designed with simplicity and scalability in mind. Since it is mostly made up of passive components (no active electronics in the middle), it offers some clear benefits:

  • Low Maintenance – No active power supply is needed in the field.
  • Cost-Effective – Passive components like splitters and closures are cheaper and easier to deploy.
  • Highly Reliable – Fewer active devices mean fewer chances of failure.
  • Scalable – Easy to add more users simply by extending fibers or adding splitters.
  • Flexible Deployment – ODN can be tailored for FTTH, FTTB, FTTC, or FTTO depending on network needs.

ODN vs Active Distribution Networks

In telecom, you may hear the comparison between ODN (Optical Distribution Network) and active distribution networks. The difference mainly comes down to whether the middle part of the network uses passive components or active devices.

Here’s a simple comparison table:

Aspect ODN (Optical Distribution Network) Active Distribution Network
Core Components
Passive parts (fiber cables, splitters, closures, adapters, etc.)
Active devices (switches, amplifiers, repeaters)
Power Requirement
No power needed in the field
Requires continuous power supply
Maintenance
Low – fewer points of failure
Higher – active devices need monitoring & replacement
Cost
Lower (mostly passive parts)
Higher (due to active equipment)
Scalability
Easy to expand with splitters and fibers
More complex – scaling needs additional powered units
Typical Use Case
PON networks (FTTH, FTTB, FTTC, FTTO)
Legacy systems, or where signal boosting is necessary

FAQ: Common Questions About ODN

What does ODN mean in telecom?

In telecom, ODN (Optical Distribution Network) refers to the passive fiber network that connects the OLT in the central office to the ONU/ONT at the customer’s side. It includes all cables, splitters, connectors, and boxes in between.

ODN is a passive network. It does not contain active devices that require power. Instead, it relies on optical splitters, connectors, and fibers to deliver signals.

An ODN typically consists of fiber optic cables, splitters, splice closures, distribution boxes, patch panels, connectors, adapters, and patch cords — all of which play a role in signal routing and protection.

The ODN is the backbone of a PON. Without a properly designed ODN, the OLT cannot efficiently serve multiple users, and the optical signals may suffer from loss or poor distribution.

Yes. ODNs are designed to be scalable. By upgrading splitters, fibers, and connecting equipment, ODNs can support next-generation technologies such as 10G PON or even NG-PON2.

In Summary

The Optical Distribution Network (ODN) is the unsung hero of fiber broadband. It forms the “middle mile” between the operator’s central office and the customer’s home or office, carrying optical signals reliably and efficiently.

Made up of passive components such as connectors, adapters, splice closures, distribution boxes, patch cords, and patch panels, the ODN ensures that high-speed data travels smoothly from the provider to the end-user.

With its low maintenance, high reliability, and easy scalability, the ODN remains a cornerstone of modern telecom infrastructure. Whether you’re building FTTH, FTTB, or FTTC systems, a well-designed ODN is the foundation for success.
