In modern optical communication, single mode fiber (SMF) is the silent backbone that carries vast amounts of data across cities, oceans, and continents. It’s the reason we can enjoy fast internet, seamless video calls, and global connectivity. But not all single mode fibers are the same — in fact, there are several standardized types, each optimized for specific distances, wavelengths, and network environments.

If you’ve ever come across labels like G.652, G.655, or G.657A2 on fiber cable specifications, you’re looking at international standards defined by the ITU-T (International Telecommunication Union – Telecommunication Standardization Sector). These standards describe the optical characteristics, performance, and application scope of each fiber type.

For beginners, all these codes may seem confusing — but once you understand the meaning behind them, you’ll find that each fiber type has a clear purpose.

single mode fiber optic types complete guide

TABLE OF CONTENTS

What Is Single Mode Fiber?

A single mode optical fiber is designed to carry light in a single transmission mode — meaning the light travels straight down the core without multiple reflections. The core diameter is typically around 8–10 micrometers, and the cladding is 125 micrometers.

Because light follows a single path, single mode fibers can transmit data over longer distances and at higher bandwidths than multimode fibers. That’s why they’re used in backbone networks, long-haul telecommunications, and high-speed data center links.

Common transmission wavelengths are 1310 nm, 1550 nm, and 1625 nm, depending on the fiber type and network design.

single mode fiber cable schematic

Why Are There Different Types of Single Mode Fibers?

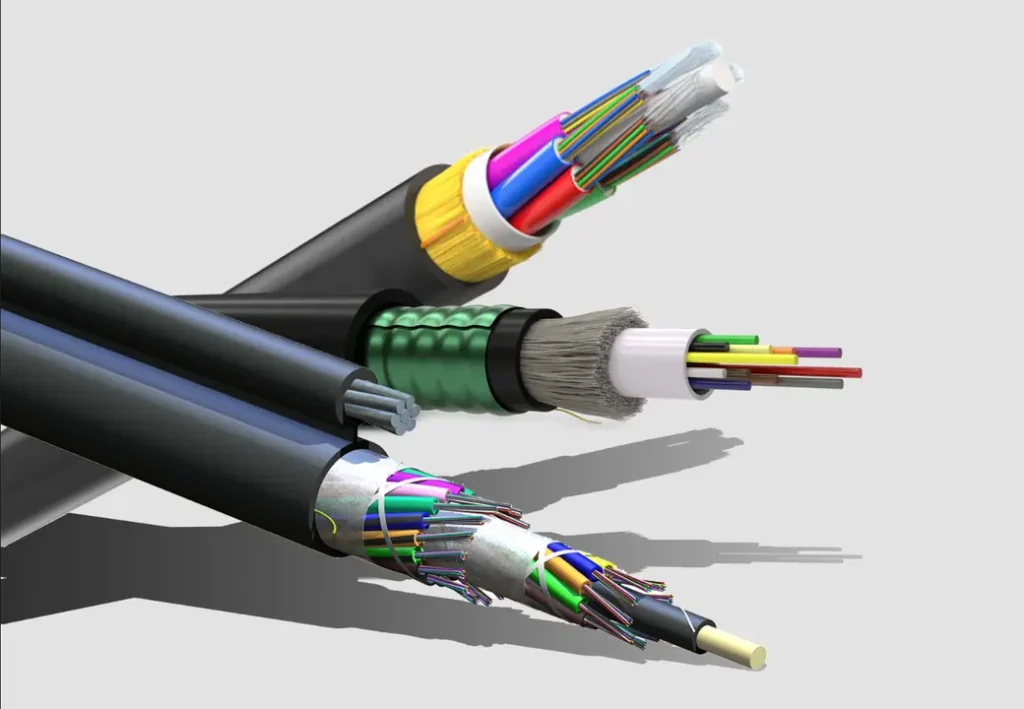

single mode fiber cable

Not all networks are built the same. Some are short and dense (like data centers), while others stretch for hundreds of kilometers (like submarine cables). Over time, engineers developed various single mode fiber standards to address different needs — minimizing loss, dispersion, and bending sensitivity.

The ITU-T created a series of recommendations — G.652, G.653, G.654, G.655, G.656, and G.657 — each representing a different single mode fiber design.

For example:

  • G.652 is the standard single mode fiber used in most networks.
  • G.655 is optimized for long-distance, high-speed transmission.
  • G.657 is bend-insensitive, ideal for indoor or compact installations.

Let’s explore the most commonly used types in detail.

Quick Overview: Comparison of Common Single Mode Fiber Types

Before diving into each type in detail, here’s a quick comparison table showing the key differences among the most common single mode optical fiber types. This overview helps you see how each standard is positioned in terms of wavelength, application, and performance.

Fiber Type ITU-T Standard Optimized Wavelength(s) Main Feature Typical Application
G.652D
Standard SMF
1310–1625 nm
Low loss, zero water peak
Metro & access networks
G.655
NZ-DSF
1550–1625 nm
Controlled dispersion for DWDM
Long-haul transmission
G.656
Wideband SMF
1460–1625 nm
Broad wavelength range
DWDM/CWDM backbone systems
G.657A1/A2/B3
Bend-Insensitive SMF
1310–1625 nm
Low bending loss
FTTH, data centers, indoor use

This table gives a quick snapshot: G.652D remains the standard for general-purpose use, G.655 and G.656 excel in long-distance or multi-wavelength systems, while G.657 fibers are designed for flexibility and compact installation.

G.652: The “Standard” Single Mode Fiber

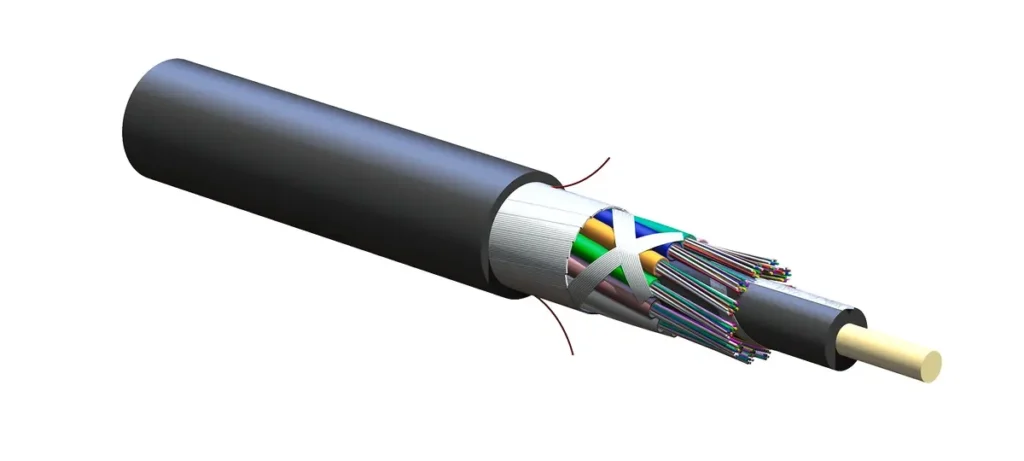

G652d Fiber image

Image Source: Corning

The G.652 fiber, often called the standard single mode fiber, is the most widely used and recognized optical fiber type. It was first defined in the 1980s and remains the foundation for modern fiber networks today.

G.652 fibers are optimized for operation at 1310 nm, with very low attenuation and dispersion around this wavelength. They are also compatible with 1550 nm, though chromatic dispersion is higher at that point.

Over time, different subcategories of G.652 have emerged — G.652A, G.652B, G.652C, and G.652D — each improving performance slightly. Among them, G.652D is the most popular and widely deployed version.

G.652D fiber supports zero water peak performance, meaning it allows smooth transmission across 1310 nm to 1625 nm, covering both traditional telecom bands and newer broadband applications.

In other words:

  • G.652D = improved G.652 with extended wavelength support and lower water absorption loss.
  • Commonly used in: metro networks, access networks, and backbone systems.

G.655: The “Non-Zero Dispersion” Fiber

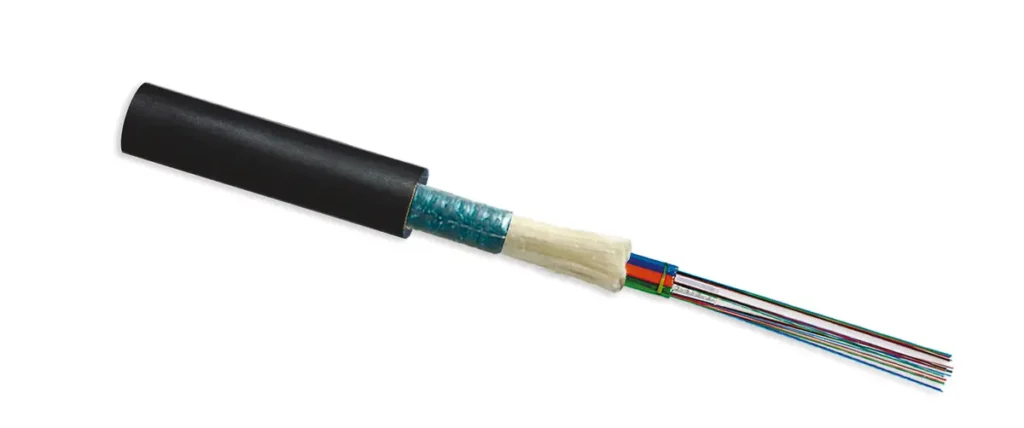

G655 Fiber image

Image Source: Corning

As transmission distances increased and data rates climbed into tens of gigabits per second, engineers faced a new challenge — dispersion. This is the spreading of light pulses over distance, which blurs data signals and limits performance.

To solve this, G.655 fiber, also known as Non-Zero Dispersion Shifted Fiber (NZ-DSF), was developed. Unlike older “zero-dispersion” fibers, G.655 intentionally maintains a small but controlled amount of dispersion at 1550 nm to avoid nonlinear effects during long-distance DWDM (Dense Wavelength Division Multiplexing) transmission.

Key features of G.655 fiber:

  • Optimized for 1550 nm and 1625 nm wavelengths.
  • Allows DWDM transmission with minimal signal interference.
  • Used in long-haul and high-capacity backbone networks.

Compared to G.652D, G.655 performs better over hundreds of kilometers but is less flexible in terms of bending, making it less suitable for indoor use.

G.656: The “Wideband” Single Mode Fiber

Next came G.656, designed to support a wider transmission window for high-capacity systems. It covers the 1460–1625 nm range, providing better performance for DWDM and CWDM (Coarse Wavelength Division Multiplexing) systems.

In short, G.656 was introduced for multi-wavelength long-haul networks where spectral efficiency and distance both matter. It helps maintain a balance between low attenuation and controlled dispersion across a broad range of wavelengths.

Applications:

  • Long-distance DWDM networks.
  • Optical backbone systems carrying multiple high-speed channels.

G.657: The “Bend-Insensitive” Fiber

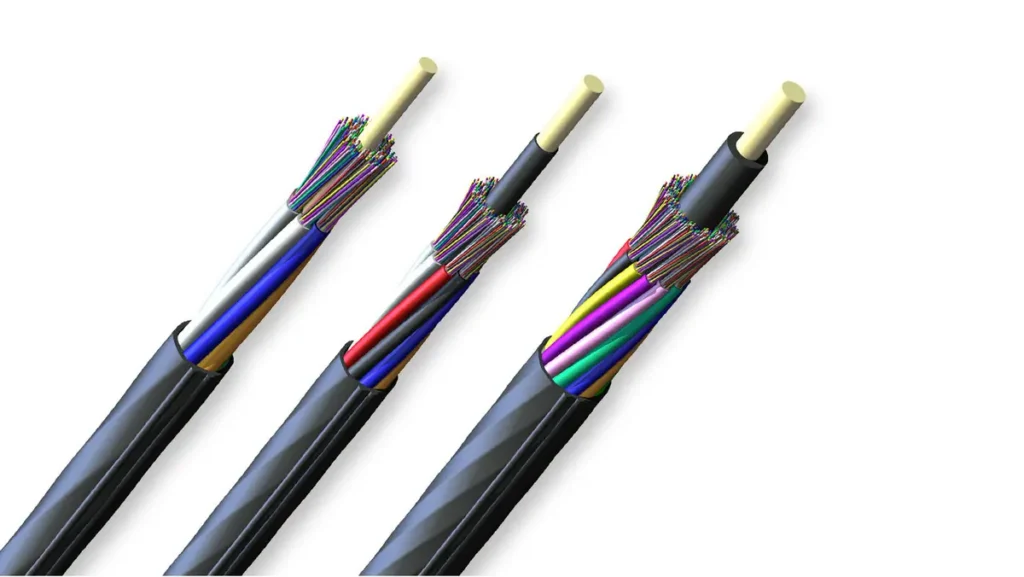

g657A1/A2/B3 fiber optic

Image Source: Corning

While G.652 and G.655 are designed for open, wide cable routes, modern installations — like apartment buildings and data centers — often require fibers that can bend around tight corners. That’s where G.657 fiber comes in.

G.657 is known as the bend-insensitive single mode fiber, engineered to maintain low loss even when bent sharply. Its core design includes a modified refractive index profile that traps light more efficiently, preventing leakage under bending stress.

There are several subtypes of G.657 fibers, including G.657A1, G.657A2, and G.657B3, each with different flexibility levels and compatibility with G.652D.

Let’s take a closer look at them in the next section.

G.657 Subtypes: A1, A2, and B3 Explained

Among all the single mode fiber standards, G.657 has evolved the most — it was specifically designed to solve a very modern problem: tight-space installation. While all G.657 fibers are bend-insensitive, each subtype (A1, A2, B3) offers different flexibility and backward compatibility with standard G.652D fiber.

Subtype Bend Radius (Typical) Compatibility Main Feature Common Applications
G.657A1
≥10 mm
Fully compatible with G.652D
Moderate bend tolerance
FTTH, access networks
G.657A2
≥7.5 mm
Fully compatible with G.652D
Higher flexibility for tight routing
Indoor wiring, wall outlets
G.657B3
≥5 mm
Partial compatibility
Maximum bend tolerance
Patch cords, data centers

In simple terms:

  • G.657A1 is the most general-purpose bend-insensitive fiber — a direct upgrade from G.652D.
  • G.657A2 offers tighter bending performance, perfect for building wiring and compact enclosures.
  • G.657B3 is extremely flexible, suitable for ultra-tight applications such as fiber patch cords, terminal boxes, and optical faceplates.

The smaller the minimum bend radius, the greater the design freedom for installers — especially in FTTH (Fiber to the Home) and data center environments where space is limited.

A Brief Note on OS1 and OS2

When selecting single mode fibers, you may also see terms like OS1 and OS2. These are not ITU-T designations but ISO/IEC classifications that describe performance under different conditions.

  • OS1: Designed for indoor applications, such as patch cords or tight-buffered cables. It typically supports distances up to 10 km at 1310 nm with an attenuation of ≤1.0 dB/km.
  • OS2: Used for outdoor or long-distance applications, such as loose-tube or blown fibers. It features much lower attenuation — around 0.4 dB/km at 1310 nm, supporting up to 200 km in some systems.

In short, OS1 is best for short runs and indoor cabling, while OS2 is optimized for long-haul or outdoor networks.
Most G.652D and G.657 fibers fall into the OS2 category because of their extended wavelength support and low-loss performance.

Single Mode Fiber Transmission Distance

Different single mode fiber types are optimized for different distances and wavelength windows. Here’s a simplified view:

Fiber Type Operating Wavelength(s) Typical Distance Range Application
G.652D
1310–1625 nm
Up to 80 km
Metro & access networks
G.655
1550–1625 nm
Up to 200 km+
Long-haul DWDM systems
G.656
1460–1625 nm
80–150 km
Multi-wavelength systems
G.657A1/A2/B3
1310–1625 nm
10–60 km
FTTH, FTTB, indoor routing

Of course, actual transmission distance depends on many factors — optical power budget, splicing quality, connector loss, and equipment sensitivity. But these general figures give a sense of how each fiber type fits different network layers:

  • G.652D → the all-rounder
  • G.655/G.656 → the long-distance specialists
  • G.657 → the flexible, bend-tolerant option for the “last mile”

Choosing the Right Fiber Type

Selecting the right single mode fiber type isn’t just about distance — it’s also about installation environment and network design.

differenet fiber connector types

For instance:

  • In metro and backbone networks, G.652D remains the universal standard thanks to its balance of performance and cost.
  • For long-distance DWDM systems, G.655 or G.656 fibers are ideal, reducing nonlinear effects and dispersion over hundreds of kilometers.
  • For FTTH, indoor routing, and high-density racks, G.657A2 or B3 fibers shine — offering flexibility and minimal bending loss.

At YingFeng Communication, we understand how each fiber type interacts with optical components such as connectors, adapters, closures, and patch cords. Our expertise lies in designing and manufacturing fiber connectivity solutions that ensure optimal performance — whether your network uses G.652D for long runs or G.657A2 for tight installations.

FAQ: Single Mode Fiber Types

What’s the most common type of single mode fiber?

The most widely used type today is G.652D, due to its low attenuation and zero water peak performance across 1310–1625 nm.

G.652 is optimized for metro and short-haul networks, while G.655 is designed for long-haul transmission with controlled dispersion for DWDM systems.

It means the fiber can be bent into tighter curves without significant signal loss — a feature of G.657A1/A2/B3 fibers used in indoor and FTTH applications.

Not exactly. OS1 and OS2 refer to general performance classifications (mainly attenuation and application), while G.652, G.655, etc., are ITU-T standards that define fiber design and optical parameters.

Yes, but compatibility depends on mode field diameter and dispersion characteristics. G.652D and G.657A1/A2 are fully compatible, but mixing G.652 with G.655 or G.656 requires careful engineering to avoid performance mismatch.

In Summary

From G.652D to G.657B3, each single mode fiber type represents a carefully engineered balance between distance, dispersion, and flexibility. Understanding their differences helps network planners and installers choose the right fiber for the right job — whether it’s a long-haul backbone connection, an urban metro link, or the final drop to a home or office.

The evolution from standard single mode fibers to bend-insensitive designs has made fiber optics more adaptable and accessible than ever before. And while YingFeng Communication doesn’t focus on producing raw optical fiber, our expertise lies in the connectivity layer — ensuring that every connector, adapter, and patch cord in your network delivers the performance your fiber is designed for.

By combining the right fiber type with reliable passive components, you can build a network that’s not only fast and stable but also future-ready.
