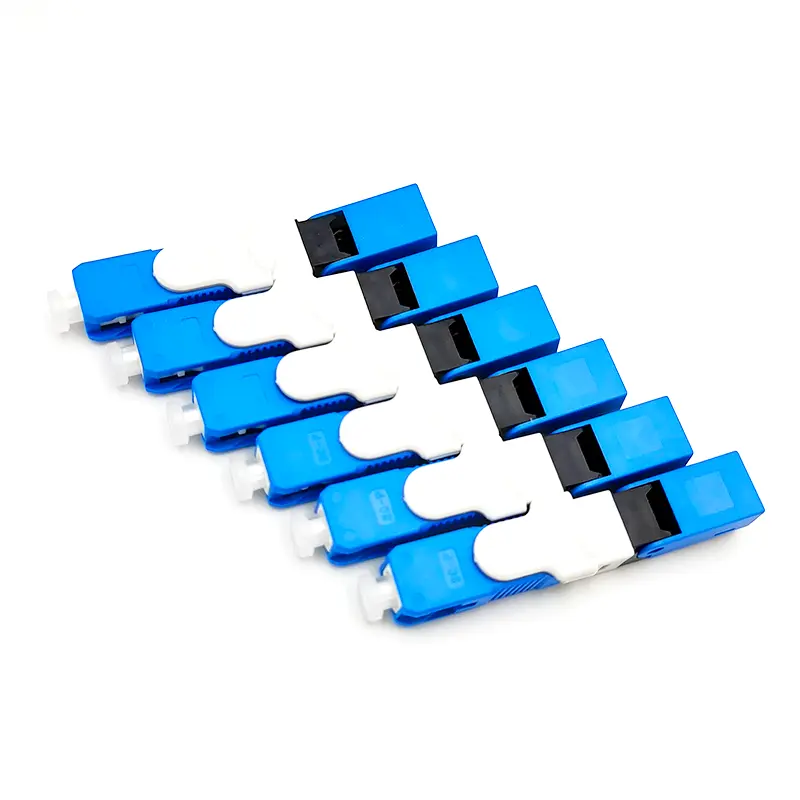

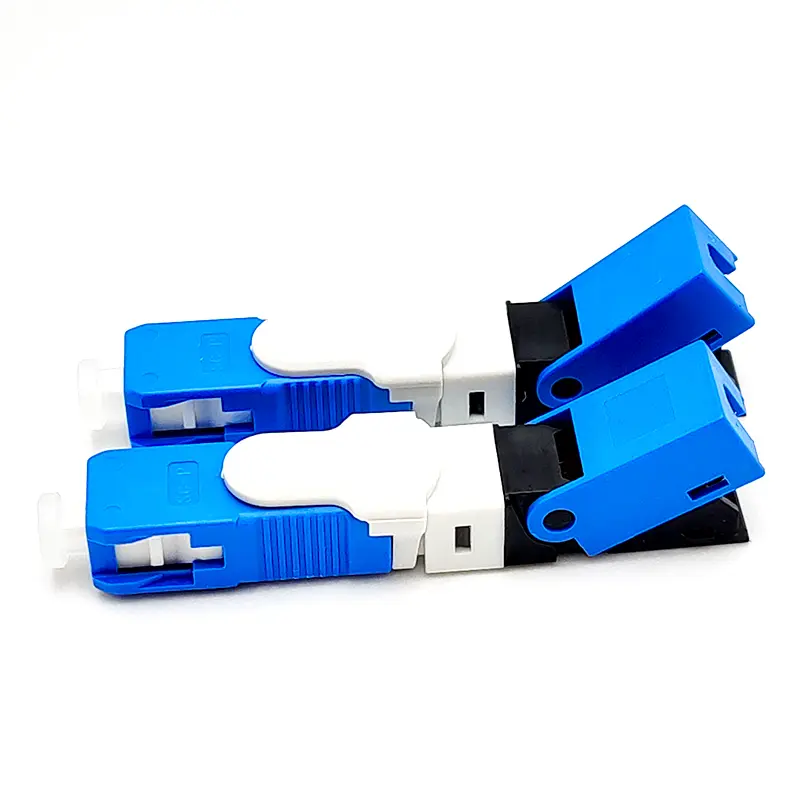

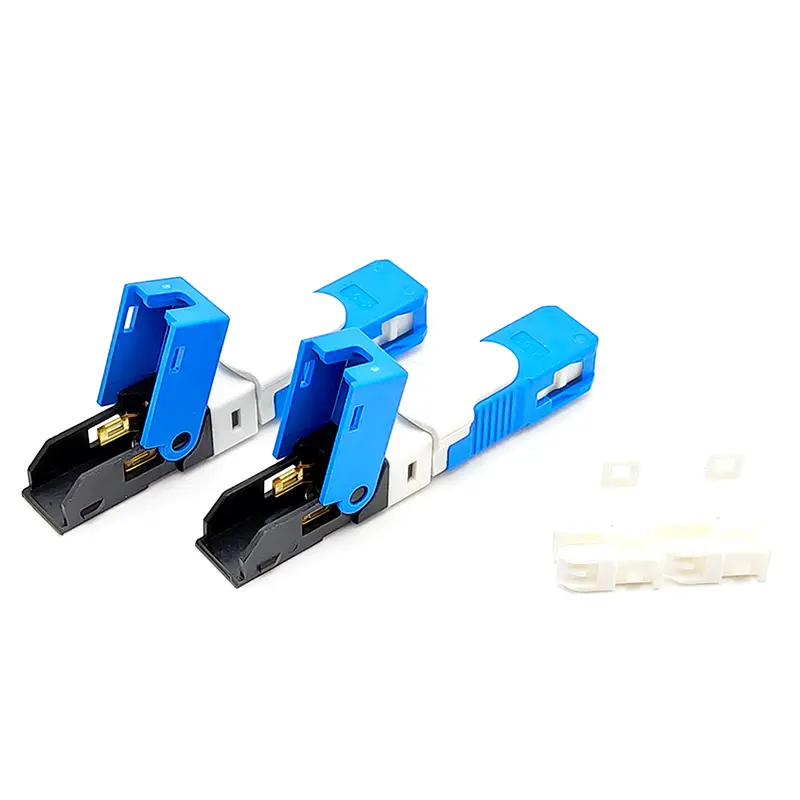

SC UPC Fiber Optic Quick Field Connector
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
Designed for fast and reliable field termination, the SC UPC Fast Field Connector is an ideal solution for FTTH and access network installations where speed, stability, and repeatability matter.
This connector features a pre-polished UPC ferrule and mechanical splicing structure, allowing technicians to complete fiber termination in approximately 15 seconds without epoxy, curing, or complex tools. It is fully compatible with bow-type drop cables (3.0 × 2.0 mm / 1.6 × 2.0 mm) and single-mode fibers (G.652 / G.657).
With low insertion loss and high return loss performance, the SC UPC fast connector is widely used in indoor FTTH outlets, fiber termination boxes, and customer premises installations where signal stability and ease of installation are critical.
Product Specifications
| Connector Type | SC UPC | Applicable Cable | 3.0 × 2.0 mm / 1.6 × 2.0 mm Bow-type Drop Cable |
| Fiber Type | Single-mode (G.652 / G.657) | Fiber Diameter | 125 μm |
| Coating Diameter | 250 μm | Size | 51 × 9 × 7.55 mm |
| Installation Time | ≈ 15 seconds (excluding fiber presetting) | Insertion Loss | ≤ 0.2 dB (Max ≤ 0.4 dB @ 1310 / 1550 nm) |
| Return Loss | ≥ 50 dB | Reusability | >10 times |
| Tensile Strength | >50 N | Operating Temperature | -40°C to +85°C |
| Drop Test | IL ≤ 0.3 dB (500 times) |
FAQ
Where is SC UPC fast connector commonly used?
Does this connector require fusion splicing tools?
Can the connector be reused after removal?
Is it suitable for bend-insensitive fibers?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
