SC/UPC 0.9mm Connector
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
SC/UPC 0.9mm Fiber Optic Connector – High-Precision, Multi-Color, Simplex Type
The SC/UPC 0.9mm connector is a high-performance simplex fiber optic connector designed for quick and reliable terminations in single-mode fiber networks. Engineered for durability and low insertion loss, this connector offers a high return loss (≥55dB) with UPC polish type for stable signal performance.

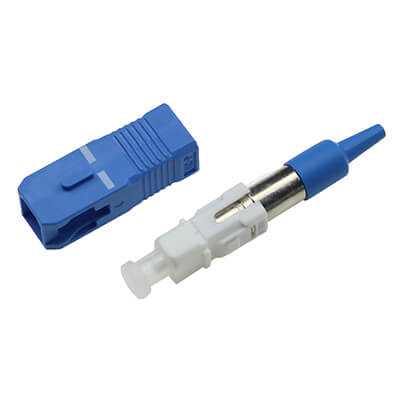

This connector features a standard 0.9mm boot – suitable for different network coding and management applications. Its internal components include a precision ceramic ferrule, spring, stopper, boot, and protective housing, ensuring consistent optical performance and >1000 mating cycles.
Widely used in fiber patch cables, pigtails, and field-termination kits, the SC/UPC connector provides easy installation, stable performance, and color-coded convenience in data centers, FTTx deployments, and telecom networks.
Product Specifications
| Connector Parts: | Dust Cap, Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Boot | Fiber Count: | Simplex |
| Insertion Loss: | ≤0.25dB | Fiber Mode: | Single Mode |
| Return Loss: | ≥55dB (UPC) | Polish Type: | UPC |
| Durability: | >1000times | Cable Diameter: | 0.9mm |
| Operating Temp: | -20~70°C |
FAQ
How many times can the connector be plugged in and out?
What are the available colors?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
