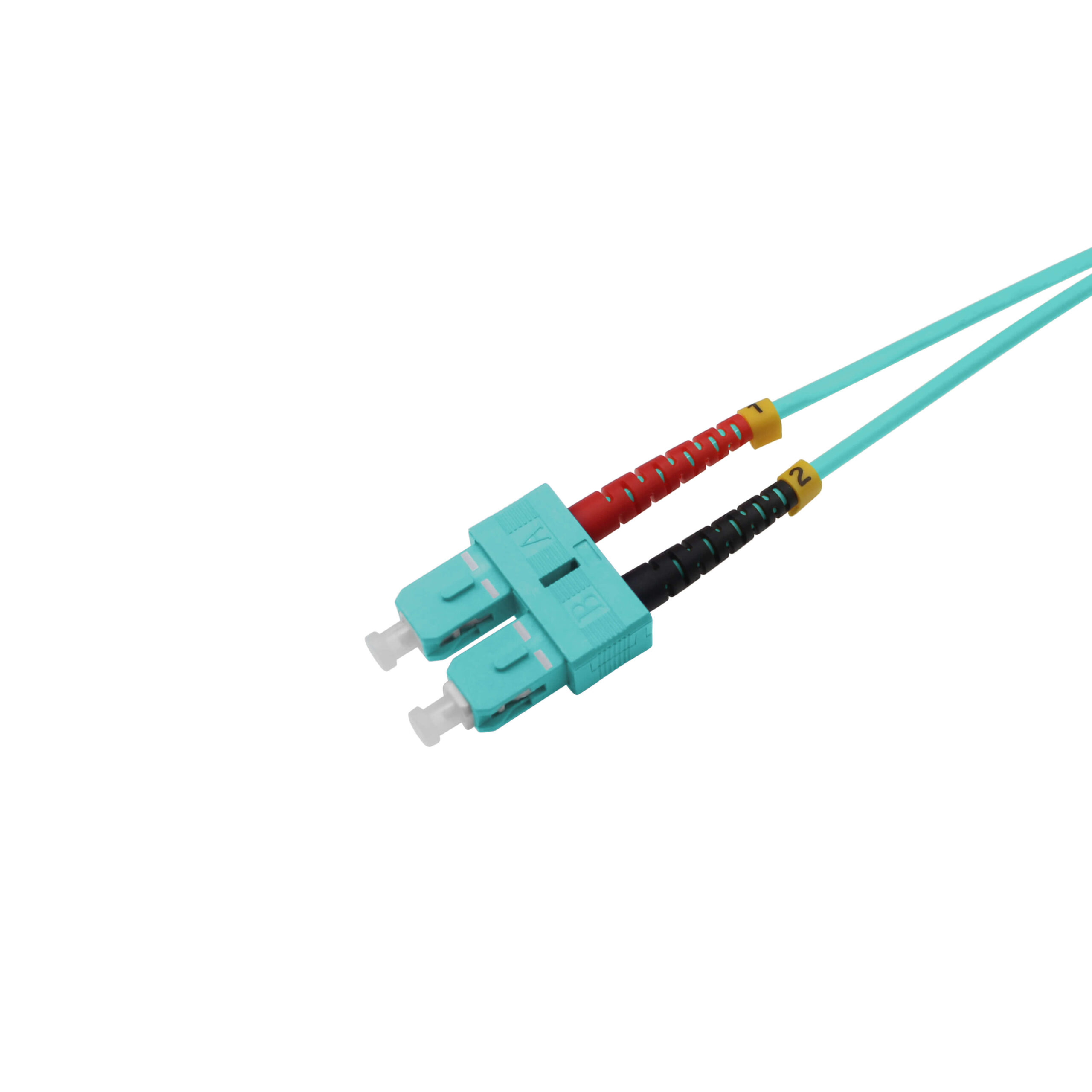

SC UPC to SC UPC Multimode Fiber Patch Cable, OM3, Duplex
This SC UPC to SC UPC OM3 multimode duplex fiber patch cable is designed for high-speed short-distance data transmission, making it ideal for 10G/40G/100G Ethernet in data centers, enterprise networks, and storage area networks. OM3 50/125µm fiber supports distances up to 300m at 10G and is optimized for use with VCSEL lasers at 850nm.
- Duplex design supports bi-directional transmission
- SC UPC connectors ensure low insertion loss and stable connection
- OM3 multimode fiber optimized for high-speed short-distance applications
- Aqua-colored jacket for quick OM3 identification
- Available with PVC or LSZH jacket for versatile installation environments
Product Specifications
| Connector A: | SC UPC | Connector B: | SC UPC |
| Fiber Count: | Duplex | Fiber Grade: | Bend Insensitive |
| Fiber Mode: | Multimode OM3 50/125μm | Wavelength: | 850/1300nm |
| Cable Outside Diameter (OD): | 3.0 mm | Min. Bend Radius (Optical Fiber): | 30mm |
| Cable Jacket: | PVC/LSZH | Jacket Color: | Blue |
| Connector Durability: | >1000 times | Insertion Loss: | ≤0.25 dB |
| Return Loss: | ≥30dB | Interchangeability: | ≤0.2 dB |
| Vibration: | ≤0.2 dB | RoHS Compliancy Status: | Compliant |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~85℃ |
FAQ
What is the maximum transmission distance for OM3 fiber?
OM3 supports up to 300m for 10G Ethernet, 100m for 40G/100G Ethernet.
Can this cable be used with older multimode equipment?
Yes, OM3 is backward compatible with OM1 and OM2 systems, but performance is optimized when both ends use OM3-rated components.
Why use UPC connectors for multimode fiber?
UPC connectors provide lower insertion loss than standard PC connectors, ensuring better performance in high-speed links.
