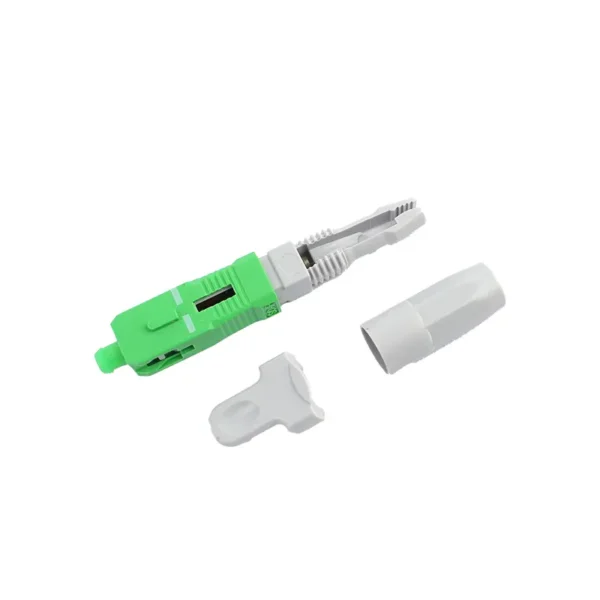

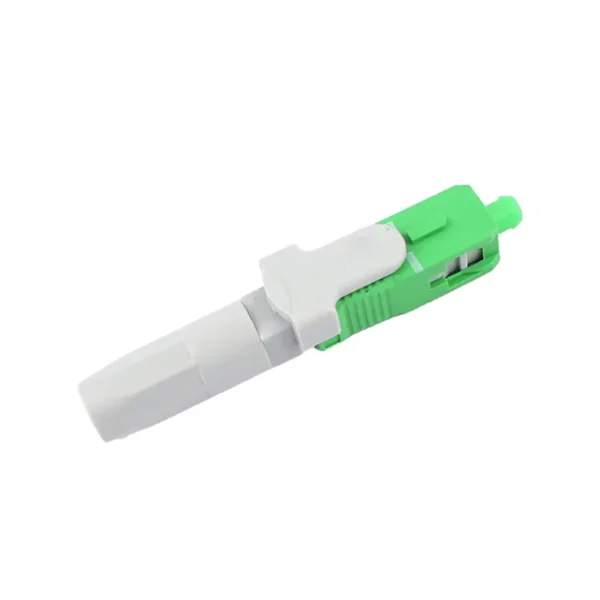

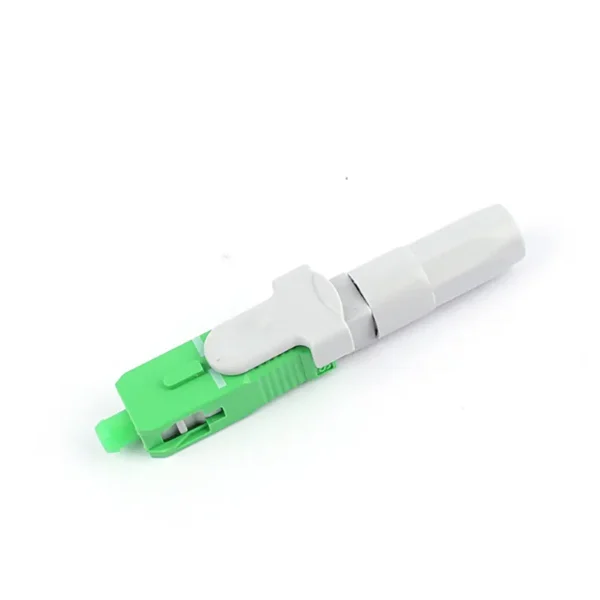

SC APC Fiber Quick Field Connector-2
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
The SC APC Fast Field Connector is engineered for applications that require strict optical reflection control, such as PON, CATV, and long-distance single-mode fiber networks.
Featuring an 8° angled APC ferrule, this connector significantly reduces back reflection and ensures a return loss of ≥55 dB, making it suitable for high-performance optical transmission environments. The tool-free mechanical termination design enables fast on-site installation while maintaining stable optical performance.
Compatible with common FTTH drop cables and G.652/G.657 fibers, the SC APC fast connector is an excellent choice for outdoor cabinets, splitter boxes, and optical distribution points where signal quality is especially critical.
Product Specifications
| Connector Type | SC APC (8° Angled Ferrule) | Applicable Cable | 3.0 × 2.0 mm / 1.6 × 2.0 mm Bow-type Drop Cable |
| Fiber Type | Single-mode (G.652 / G.657) | Fiber Diameter | 125 μm |
| Coating Diameter | 250 μm | Size | 51 × 9 × 7.55 mm |
| Installation Time | ≈ 15 seconds (excluding fiber presetting) | Insertion Loss | ≤ 0.2 dB (Max ≤ 0.4 dB @ 1310 / 1550 nm) |
| Return Loss | ≥ 55 dB | Reusability | >10 times |
| Tensile Strength | >50 N | Operating Temperature | -40°C to +85°C |
| Drop Test | IL ≤ 0.3 dB (4 m concrete floor) |
FAQ
Why choose APC instead of UPC fast connectors?
Is the connector suitable for outdoor environments?
Can APC fast connectors be used in FTTH networks?
Does the angled ferrule affect installation complexity?
