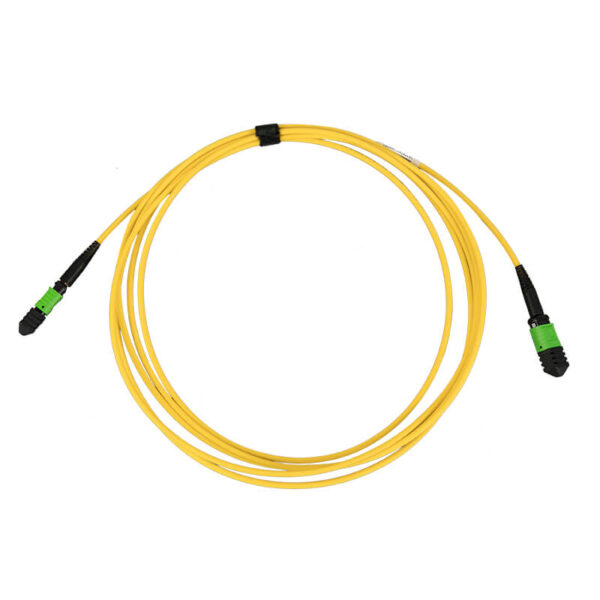

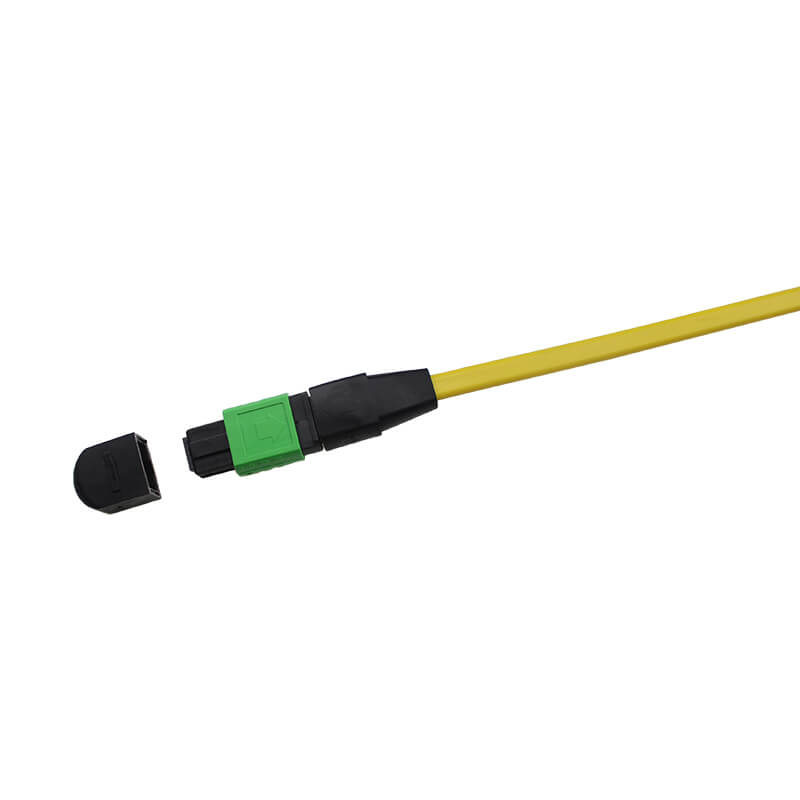

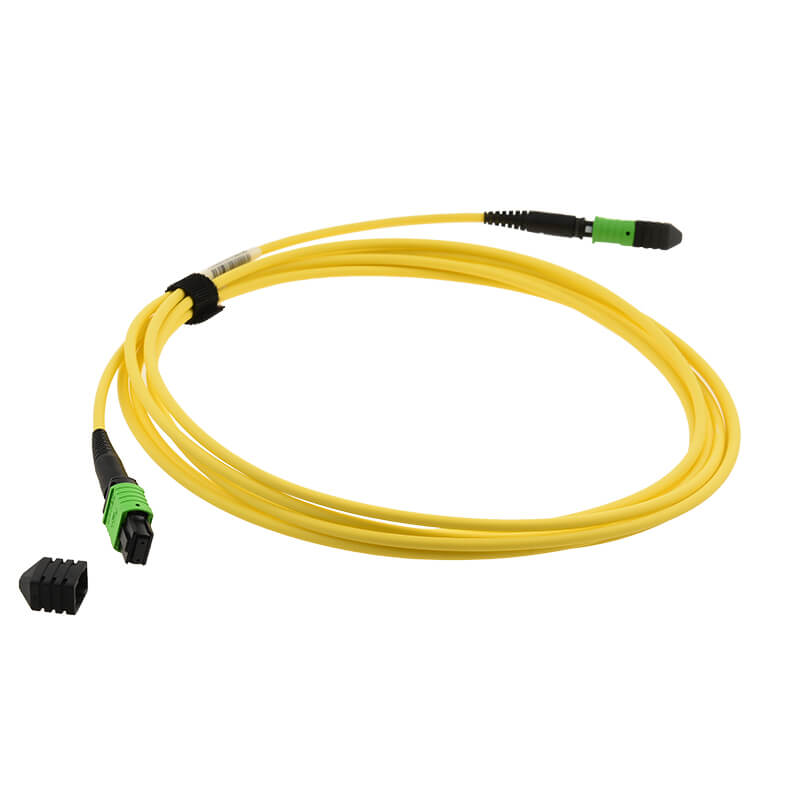

High-Density MPO-MPO Fiber Patch Cord for Fast, Reliable Backbone Connections

Yingfeng’s MPO to MPO fiber optic patch cords are engineered for high-density fiber network environments such as data centers, enterprise LANs, and telecommunication rooms. Designed for fast and efficient plug-and-play installation, these patch cords offer superior performance in signal transmission, making them ideal for backbone cabling and high-speed optical switching.

Built with precision-aligned ferrules and low insertion loss, our MPO patch cords support both G.652D and G.657A2 fiber grades for enhanced flexibility and bend resistance. Whether you’re upgrading your infrastructure or building a new one, these high-performance MPO patch cables ensure consistent optical performance, durability, and excellent compatibility with various MPO-based systems.

Product Specifications

Connector A:	MPO Female/Male	Connector B:	MPO Female/Male
Polish Type	UPC/APC	Fiber Count:	simplex
Fiber Mode	9/125 μm	Wavelength:	1310 nm/1550 nm
Fiber Grade:	G.652D/G.657A2	Cable Jacket:	PVC/LSZH
Jacket Color:	Yellow	Durability:	>1000 Times
Insertion Loss:	≤0.25 dB	Interchangeability:	≤0.2 dB
Return Loss:	≥55 dB	Vibration:	≤0.2 dB
Operating Temperature:	-40~85°C	Storage Temperature:	-40~85°C

FAQ

What applications are MPO-MPO patch cords typically used for?

These patch cords are commonly used in data centers, high-density wiring systems, and backbone fiber networks, where space-saving and high-speed connections are critical.

Are these MPO patch cords compatible with all MPO modules or cassettes?

Yes, our MPO connectors follow industry-standard specifications and are compatible with most MPO-based modules and enclosures available on the market.

Can I request custom lengths or specific fiber counts?

Absolutely. We offer OEM/ODM services and support customization in cable length, fiber count, jacket type, and more to meet different project requirements.

What’s the difference between G.652D and G.657A2 fiber grades?

G.657A2 has better bend resistance compared to G.652D, making it more suitable for tight installation spaces without performance loss.

Is this patch cord suitable for outdoor or harsh environments?

This particular model is designed for indoor use. For outdoor or armored versions, we recommend reaching out for a tailored solution.
