MPO APC Connector
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

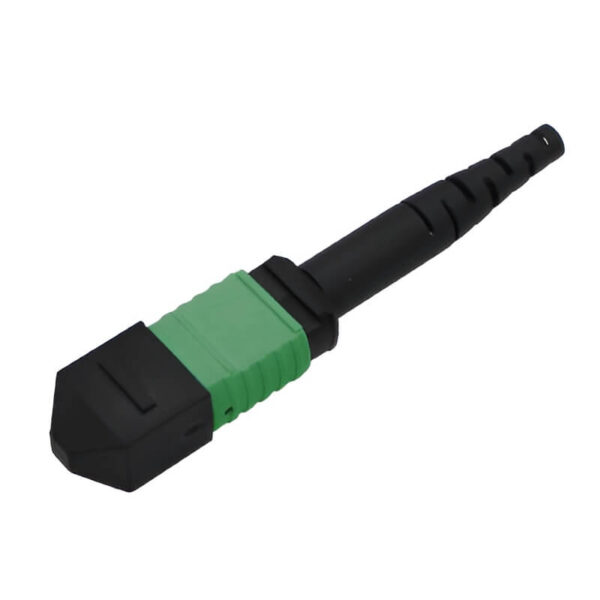

The MPO APC Connector is designed for high-density single-mode fiber applications, supporting 8, 12, or 24 cores in a compact, multi-fiber interface. It features an APC-polished ferrule for superior optical performance with typical insertion loss as low as 0.15dB, and return loss ≥60dB.
With a durable build including ferrule A/B assembly, riveting ring, and spring-loaded alignment, the connector delivers over 1000 mating cycles. Its 3.0mm round cable structure and black boot ensure easy handling and stable installation in data centers, FTTx backbones, and high-speed interconnects.

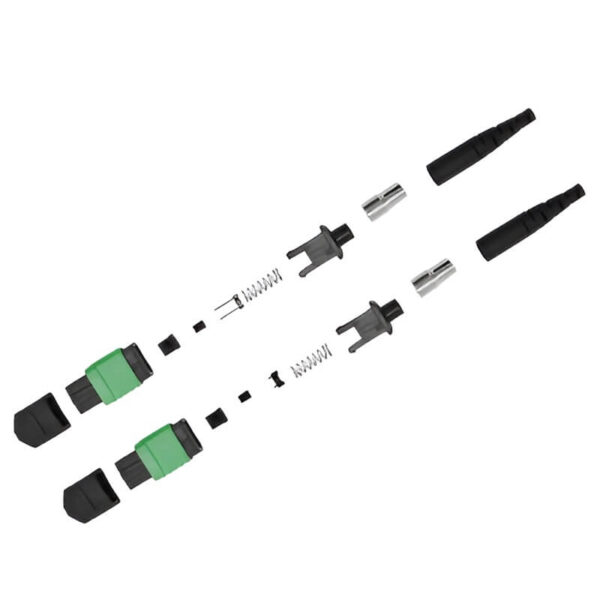

Connector Parts: Dust Cap, Outer Housing, Ferrule Assembly(A/B), Spring, Stopper, Riveting Ring, Black Boot
Product Specifications
| Fiber Count: | 8/12/24 Cores | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Fiber Mode: | Single Mode | Return Loss: | ≥60dB |
| Polish Type: | APC | Durability: | >1000times |

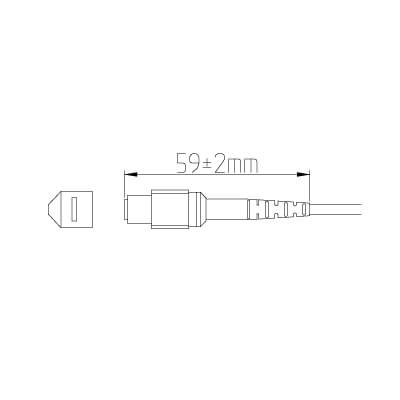

| Cable Diameter: | 3.0mm | Operating Temp: | -40~85°C |
| Color: | Green | Customize: | Contact Us |
FAQ
What’s the difference between typical and maximum insertion loss for this MPO connector?
Can I use this MPO APC connector with multi-mode systems?
What core counts are available for this connector?
Where is this connector commonly used?
