LC Uniboot Connector With Switch Polarity-2
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

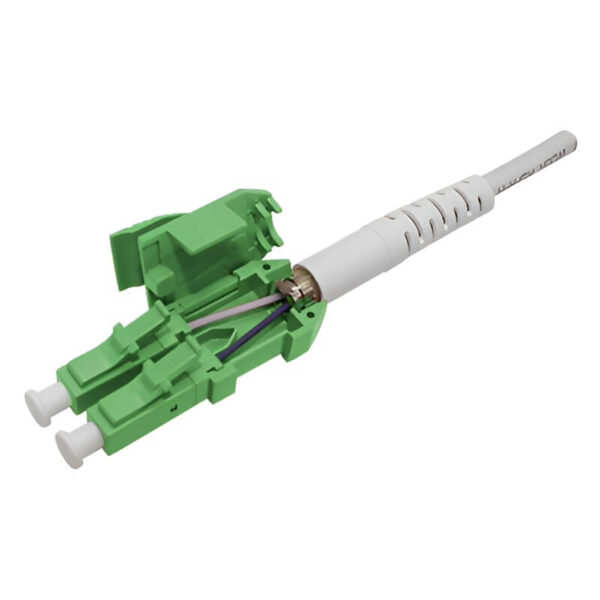

The LC APC Uniboot Connector with Switchable Polarity (Type-2) offers a compact and efficient solution for duplex single-mode fiber connections. Its tool-free polarity switch design simplifies installation and ensures correct signal routing in high-density systems.
Engineered with a reinforced inner frame, heat shrink protection, and riveting ring, this connector enhances cable strain relief and long-term durability. With insertion loss ≤0.25dB and return loss ≥60dB, it ensures stable signal performance in FTTx, telecom rooms, and data center cabinets.
Product Specifications
| Fiber Count: | Duplex | Insertion Loss: | ≤0.25dB |
| Fiber Mode: | Single Mode | Return Loss: | ≥60dB (APC) |
| Polish Type: | APC | Durability: | >1000times |
| Cable Diameter: | 3.0mm | Operating Temp: | -40~85°C |
| Colr: | Green | Customize: | Contact Us |
FAQ
What’s the difference between this Type-2 model and other LC uniboot connectors?
Can the polarity be switched without removing the boot?
What kind of applications is this connector best suited for?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
