LC to SC Multimode OM4 Fiber Patch Cable
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

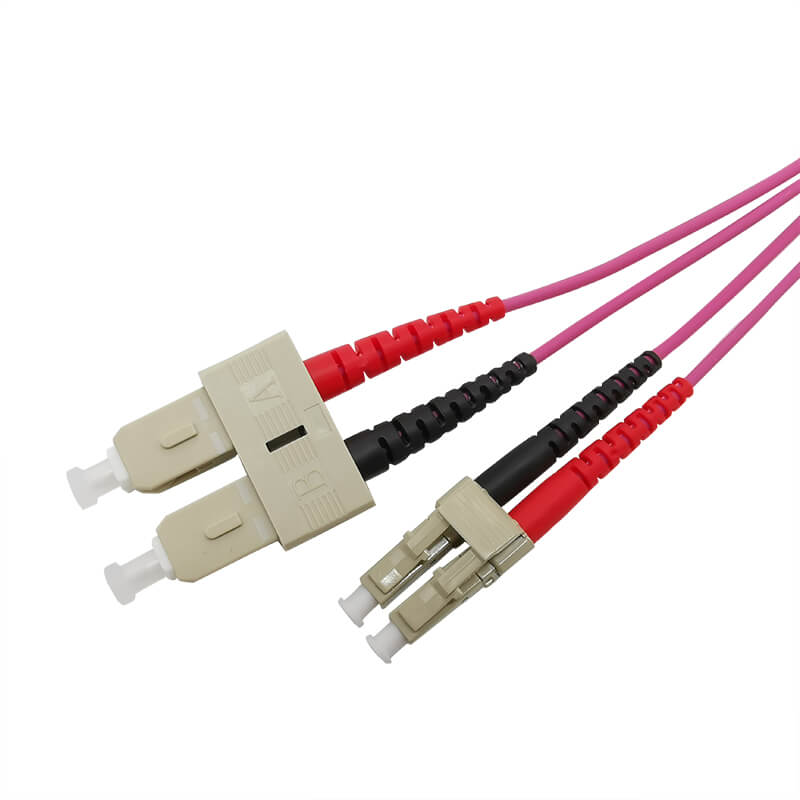

LC UPC to SC UPC Multimode Fiber Patch Cable, OM4, Duplex
This LC UPC to SC UPC OM4 multimode duplex fiber patch cable is designed for ultra-high-speed short-distance transmission, supporting 40G and 100G Ethernet in modern data centers, enterprise networks, and storage systems. OM4 50/125µm fiber provides extended reach compared to OM3 — up to 550m at 10G — and is optimized for use with VCSEL lasers at 850nm.
- Duplex design supports simultaneous bi-directional communication
- LC UPC and SC UPC connectors ensure precise alignment and low insertion loss
- OM4 multimode fiber for extended high-speed transmission distances
- Violet-colored jacket for quick OM4 identification
- Available with PVC or LSZH jacket to meet different installation needs
Product Specifications
| Connector A: | LC UPC | Connector B: | SC UPC |
| Fiber Count: | Duplex | Fiber Grade: | Bend Insensitive |
| Fiber Mode: | Multimode OM4 50/125μm | Wavelength: | 850/1300nm |
| Cable Outside Diameter (OD): | 3.0 mm | Min. Bend Radius (Optical Fiber): | 30mm |
| Cable Jacket: | PVC/LSZH | Jacket Color: | Violet |
| Connector Durability: | >1000 times | Insertion Loss: | ≤0.25 dB |
| Return Loss: | ≥30dB | Interchangeability: | ≤0.2 dB |
| Vibration: | ≤0.2 dB | RoHS Compliancy Status: | Compliant |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~85℃ |
FAQ
What is the main difference between OM3 and OM4 fiber?
OM4 offers higher bandwidth and longer transmission distance — up to 550m at 10G — compared to OM3’s 300m.
Can I use OM4 cables with OM3 equipment?
Yes, OM4 is fully backward compatible with OM3, OM2, and OM1 systems.
