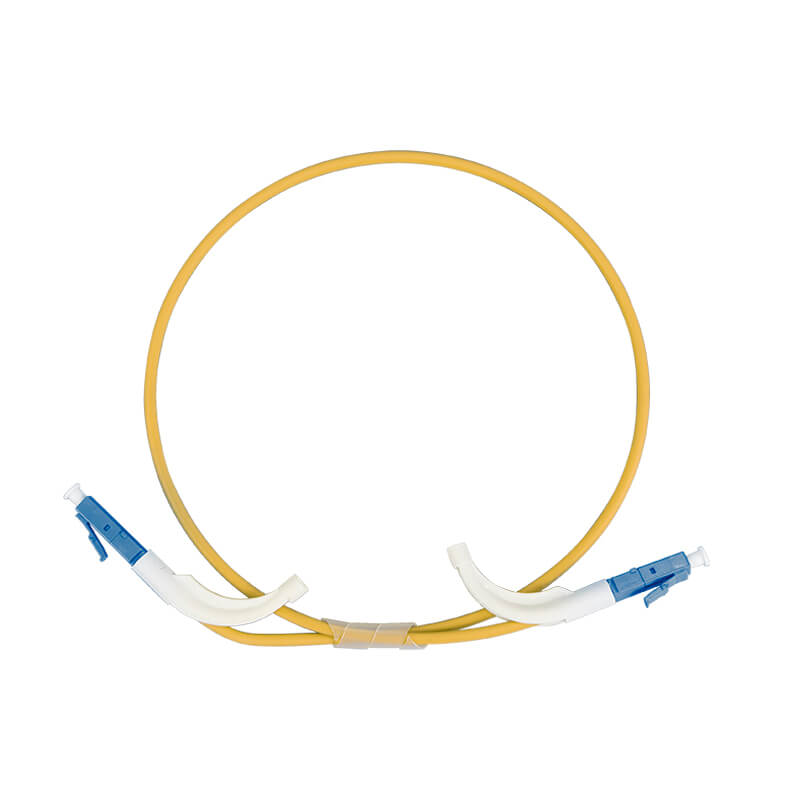

LC to LC Multimode 90° Bend Boot UPC Simplex Fiber Patch Cable
The LC to LC Multimode 90° Bend Boot UPC Simplex Fiber Patch Cable is designed for high-density environments where space optimization and organized cable management are essential. Its 90-degree bend boot enables a cleaner and more unified layout, reducing strain on the fiber and ensuring smooth routing in confined spaces.
This patch cable is available in OM1, OM2, OM3, and OM4 fiber types to meet different transmission requirements. It uses premium-grade materials for stable performance and low insertion loss, making it ideal for data centers, enterprise networks, and high-performance communication systems.
- 90° Bend Boot Design – Optimized for high-density layouts and tight installation spaces
- Customizable Fiber Types – OM1, OM2, OM3, and OM4 options available
- Connector Type – LC UPC to LC UPC, Simplex configuration
- Low Insertion Loss – Ensures stable and efficient signal transmission
- High Durability – >1000 mating cycles for long-term reliability
- Cable Jacket – PVC or LSZH for safety and flexibility
Product Specifications
| Connector A: | LC UPC | Connector B: | SC UPC |
| Fiber Count: | Simplex | Fiber Grade: | G.652D/G.657A2, Bend Insensitive |
| Fiber Mode: | Multimode 9/125 μm, OM1/OM2, OM3, OM4 | Wavelength: | 1310 nm/1550 nm 850nm, 1300nm |
| Cable Outside Diameter (OD): | 3.0 mm | Min. Bend Radius (Optical Fiber): | 30mm |
| Cable Jacket: | PVC/LSZH | Jacket Color: | ellow/ Orange/ Beige / Aqua/ Violet |
| Connector Durability: | >1000 times | Insertion Loss: | ≤0.25 dB |
| Return Loss: | ≥30dB | Interchangeability: | ≤0.2 dB |
| Vibration: | ≤0.2 dB | RoHS Compliancy Status: | Compliant |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~85℃ |
FAQ
What is the advantage of the 90° bend boot design?
Can this 90° bend boot fiber patch cable be made in different multimode types?
