LC to LC 0.9mm APC Fiber Patch Cable
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

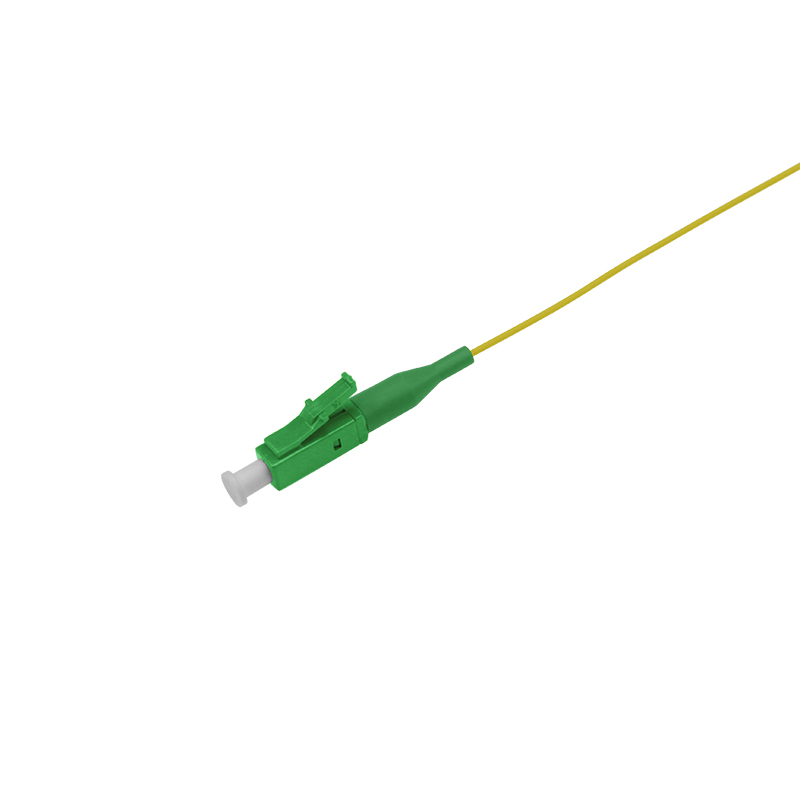

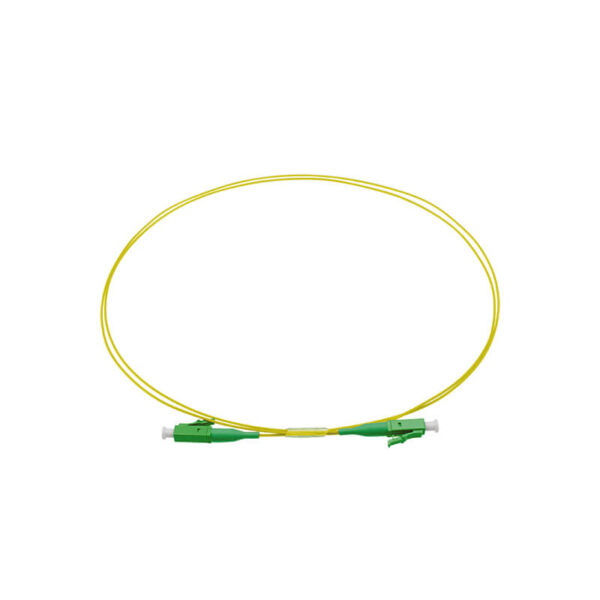

LC APC to LC APC Fiber Patch Cable, Simplex, OS2, 0.9mm
This LC APC to LC APC fiber patch cable is designed for high-performance single-mode fiber optic connections, enabling reliable and low-loss signal transmission across telecom rooms, data centers, and enterprise networks. With a slim 0.9mm diameter and bend-insensitive G.657A2 fiber, it offers flexibility in tight routing environments while ensuring stability and durability.
- Compatible with OS2 9/125μm for long-distance data transmission at 1310nm and 1550nm
- Bend-insensitive fiber for reduced signal attenuation and easier cable management
- Pre-terminated and factory-tested connectors for quick deployment and stable performance
- Low insertion loss and high return loss ensure consistent connectivity
- Available in PVC or LSZH jacket to meet different installation standards
- Ideal for point-to-point fiber interconnects, patching panels, and high-density routing
Product Specifications
| Connector A: | LC APC | Connector B: | LC APC |
| Fiber Count: | 1 fiber | Fiber Grade: | G.652D/G.657A2 |
| Fiber Mode: | OS2 9/125μm | Wavelength: | 1310 nm/1550 nm |
| Cable Outside Diameter (OD): | 0.9mm | Min. Bend Radius (Optical Fiber): | 30mm |
| Cable Jacket: | PVC/LSZH | Jacket Color: | Yellow |
| Connector Durability: | >1000 times | Insertion Loss: | ≤0.25 dB |
| Return Loss: | ≥55 dB | Interchangeability: | ≤0.2 dB |
| Vibration: | ≤0.2 dB | RoHS Compliancy Status: | Compliant |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~85℃ |
FAQ
What’s the difference between G.652D and G.657A2 fiber?
G.652D is standard single-mode fiber for long-distance transmission, while G.657A2 is bend-insensitive, offering better performance in tight routing or confined spaces. This patch cable supports both.
Can this patch cord be used in indoor data centers?
Yes, it’s well-suited for indoor use in telecom rooms, rack patching, and data centers — especially with its compact 0.9mm outer diameter and low-bend radius.
Is this LC to LC cable APC or UPC?
This model features LC APC (Angled Physical Contact) connectors on both ends, minimizing return loss and reflection.
Is the cable jacket flame-retardant?
Yes, both PVC and LSZH versions are available to suit different building code requirements.
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
