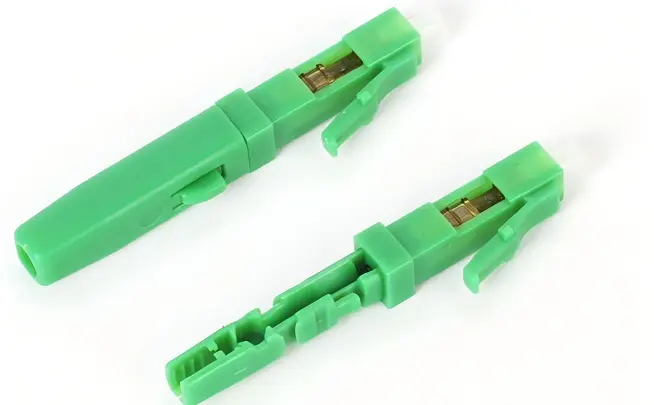

LC APC Fast Fiber Optic Connector for Drop Cable
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
The LC APC Fast Fiber Optic Connector is designed for high-density fiber networks where compact size and low back reflection are critical. By combining LC connector form factor with APC angled polishing, this fast connector provides reliable optical performance for FTTH, FTTx, and data communication applications.
Using fiber pre-embedded mechanical splicing technology, the connector enables fast on-site termination without epoxy, polishing, or fusion splicing. After termination, both optical and mechanical performance meet patch cord standards, making it suitable for field-made patch cords and rapid network deployment.
With low insertion loss and high return loss, the LC APC fast connector is widely used in optical equipment rooms, fiber distribution frames, and access networks where space efficiency and signal stability are required.
- Compact LC connector design, ideal for high-density installations
- APC angled end-face polishing for reduced back reflection
- Fiber pre-embedded mechanical splicing technology
- No epoxy, no polishing, no fusion splicing required
- Short operation time and easy field installation
- Optical performance comparable to factory-made patch cords
Product Specifications
| Connector Type | LC APC | Applicable Cable | 3.0 × 2.0 mm / 1.6 × 2.0 mm Bow-type Drop Cable |
| Fiber Type | Single-mode Fiber | End Face Polish | APC |
| Insertion Loss | Avg. ≤ 0.25 dB, Max ≤ 0.4 dB | Return Loss | Min. ≥ 45 dB, Typ. ≥ 55 dB (SM APC) |
| Return Loss (Flat Cleaver) | Min. ≥ 55 dB, Typ. ≥ 55 dB | Fiber Retention Force | < 30 N (IL ≤ 0.2 dB under pressure) |
| Twist Test | 7 N load, 5 cycles | Pull Test | 10 N load, 120 seconds |
| Drop Test | 1.5 m height, 10 repetitions | Durability Test | 200 mating cycles |
| Vibration Test | 3 axes, 2 h/axis, 10–55 Hz | Thermal Aging | +85°C ±2°C, 96 hours |
| Humidity Test | 90–95% RH at 75°C, 168 hours | Thermal Cycle | -40°C to +85°C, 21 cycles / 168 hours |
FAQ
Why choose LC APC fast connectors instead of SC types?
What is the benefit of APC polishing for LC connectors?
Can this connector be used to make patch cords on site?
Does this LC APC fast connector require polishing or epoxy?
