Horizontal 48 Cores Fiber Splice Closure
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

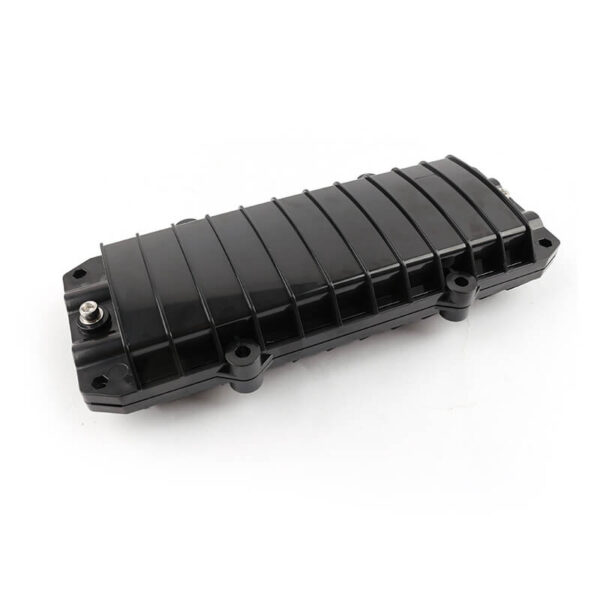

The GJS-H048-04a Horizontal Fiber Splice Closure is designed for outdoor cable splicing and protection, supporting up to 48 fiber cores via 2 splice trays (24 cores each). It provides secure and weather-resistant connections between distribution and drop cables in aerial, wall-mounted, or underground installations.

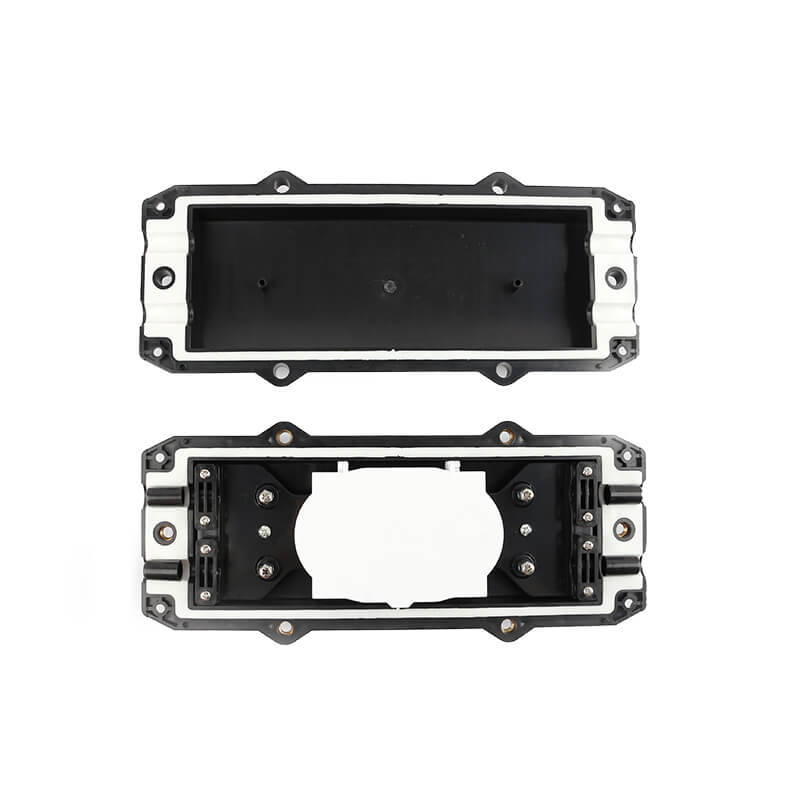

Made of high-strength engineering plastic, the closure offers excellent sealing, impact resistance, and fiber-friendly routing design to ensure minimal bending loss and sufficient storage. Ideal for FTTx networks, optical cable systems, and CATV infrastructure.
Product Specifications
| Model No: | GJS-H048-04a | Color： | Black |
| Capacity: | 48 cores | Number of fiber fusion splicing trays: | 24core*2PCS |
| Protection Level: | IP68 | Material: | ABS,PC+ABS |
| Inlet/outlet: | 2+2 | Sealing Method For Inlets: | Screw mechanical |
| Inlet cable port: | Ф12 | Outlet cable port: | Ф12 |
| Dimension(MM): | 319*135*66 | using temperature range: | -20-70℃ |
FAQ
What is the maximum fiber capacity of this closure?
Can it be used for underground installations?
Is the material UV and impact resistant?
What cable types is it suitable for?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
