6 Port Outdoor Fiber Optic Distribution Box
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

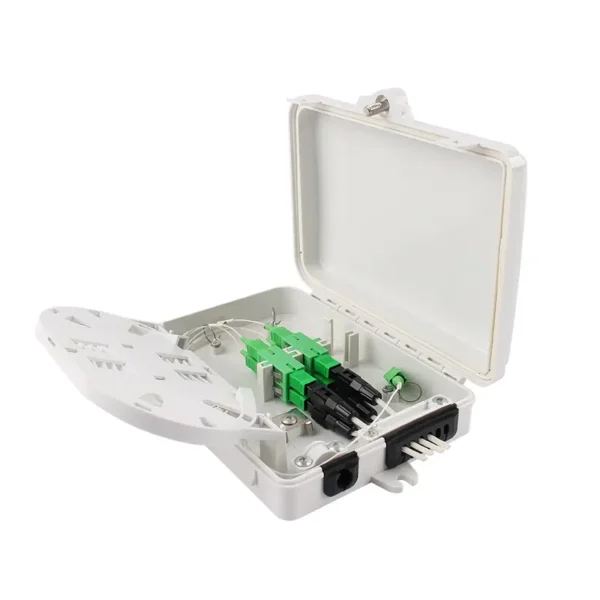

This 6-port outdoor fiber optic distribution box is designed for FTTx network termination and distribution applications. It supports one incoming fiber cable, integrated splitter installation, and up to six fiber terminations, providing a compact and cost-effective solution for last-mile fiber deployment. Made of high-quality plastic, it ensures stable performance and long-term protection in outdoor environments.
- 1 In / 6 Out Configuration: Designed with 1 fiber cable input and 6 output ports, suitable for FTTH and FTTx distribution scenarios.
- Integrated Splitter Support: Compatible with 1×6 mini type optical splitter, enabling efficient fiber signal distribution inside a compact enclosure.

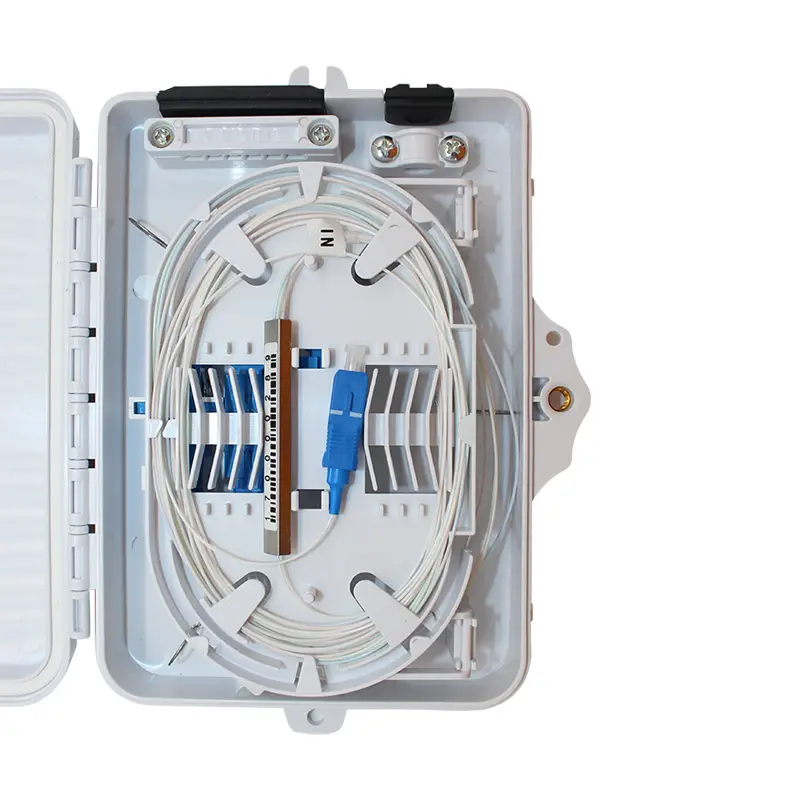

- Splice and Patch Separation Structure: Independent areas for splicing and patching improve fiber management, making capacity expansion and maintenance easier.
- SC Adapter Compatibility: Supports installation of up to 6 SC adapters for standardized and reliable fiber connections.

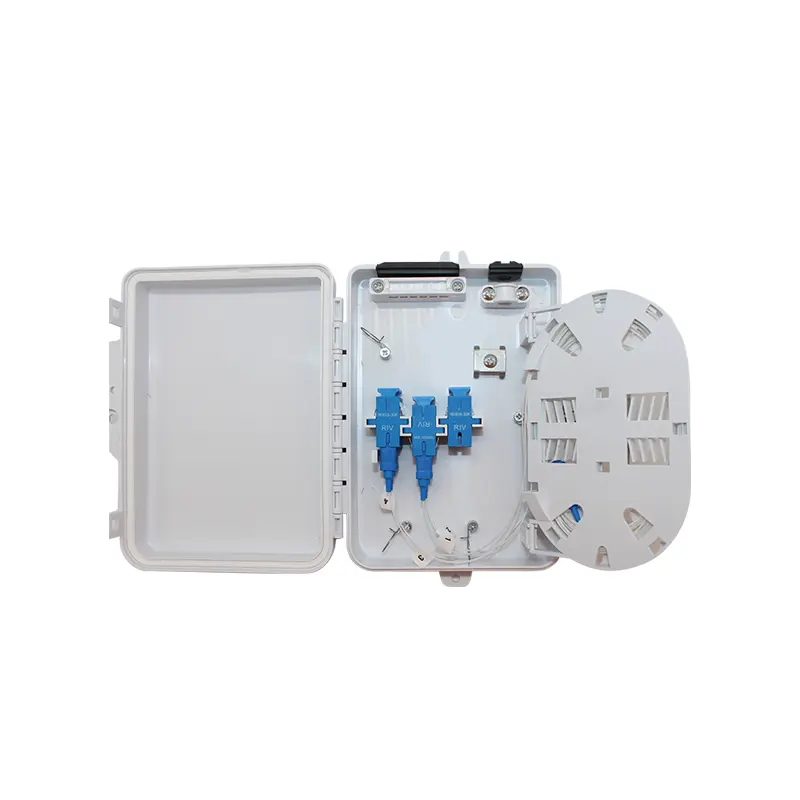

- Easy Maintenance Design: Internal turnover structure allows quick access to internal components during installation and servicing.

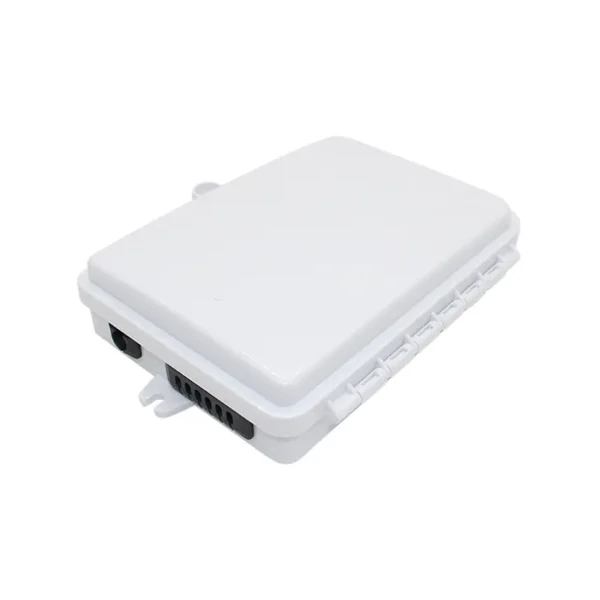

- Durable Plastic Housing: Made from high-quality plastic with a clean appearance, lightweight (0.25 kg), and suitable for long-term outdoor use.
- Multiple Drop Cable Exits: Supports up to 6 drop cable outlets for flexible field deployment.
- Outdoor Protection Level: IP65-rated enclosure provides effective protection against dust and water ingress.
Product Specifications
| Product Type: | 6 Cores | Material: | ABS |

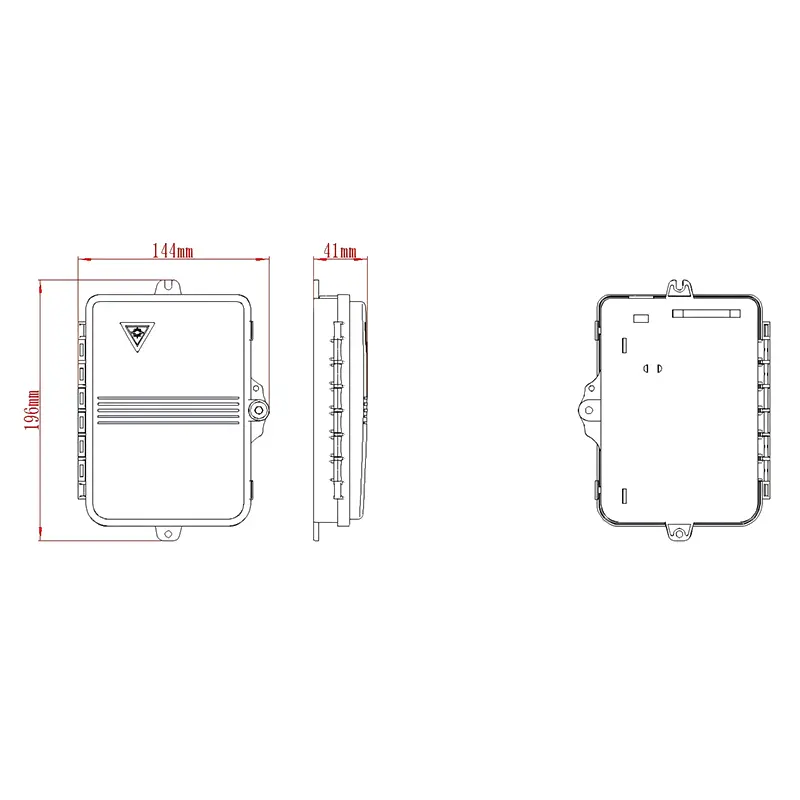

| Dimensions(H*W*D): | 196mm*144mm*41mm | Weight: | 0.25 KG |
| Adapter Type | SC Simplex/LC Duplex | Splitter Type | 1*6 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 1:6 | Cable Inlet Caliber: | 9mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter | Working Temperature | -40°C～+65°C |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set | Package Dimensions(W*H*D) | 200mm*150mm*56mm |
| Package Material | Carton box | Totle Weight | 0.3 KG |
FAQ
Is this fiber distribution box suitable for outdoor installation?
Yes. The enclosure is rated IP65, offering reliable protection against dust and water, making it suitable for outdoor environments.
What type of optical splitter can be installed inside this box?
This box supports a 1×6 mini type optical splitter, which can be neatly installed inside the enclosure.
How many fiber connections does this box support?
It supports 1 incoming fiber cable, up to 6 fiber splices, and installation of 6 SC adapters for outgoing connections.
Is the box easy to maintain after installation?
Yes. The internal turnover structure and separated splicing/patching areas make maintenance and future expansion convenient.
