FAT-8X Fiber Termination Box with Micro PLC Splitter

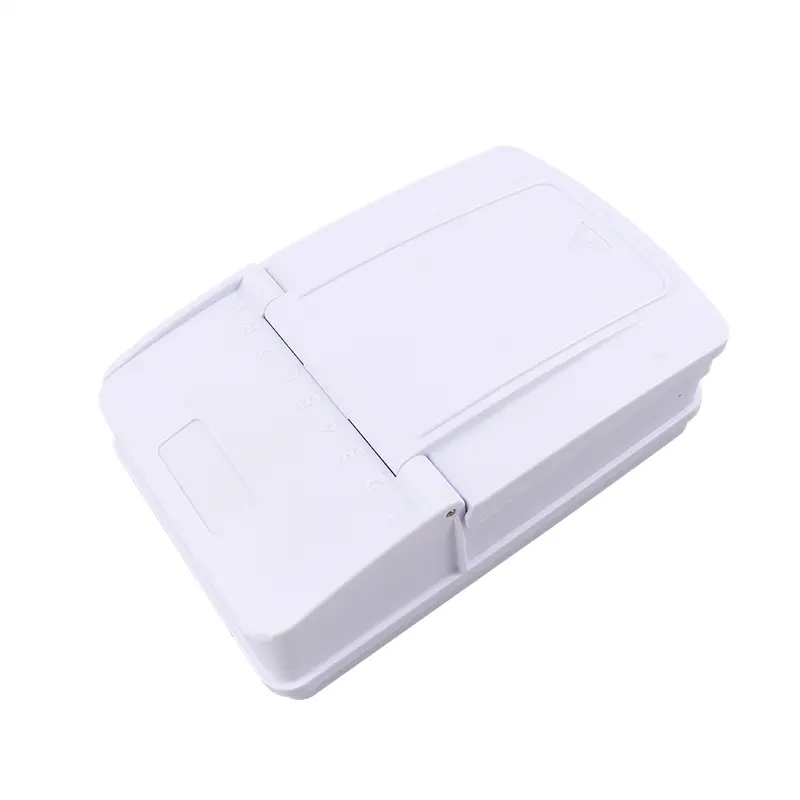

fiber terminal box fat 8x front view

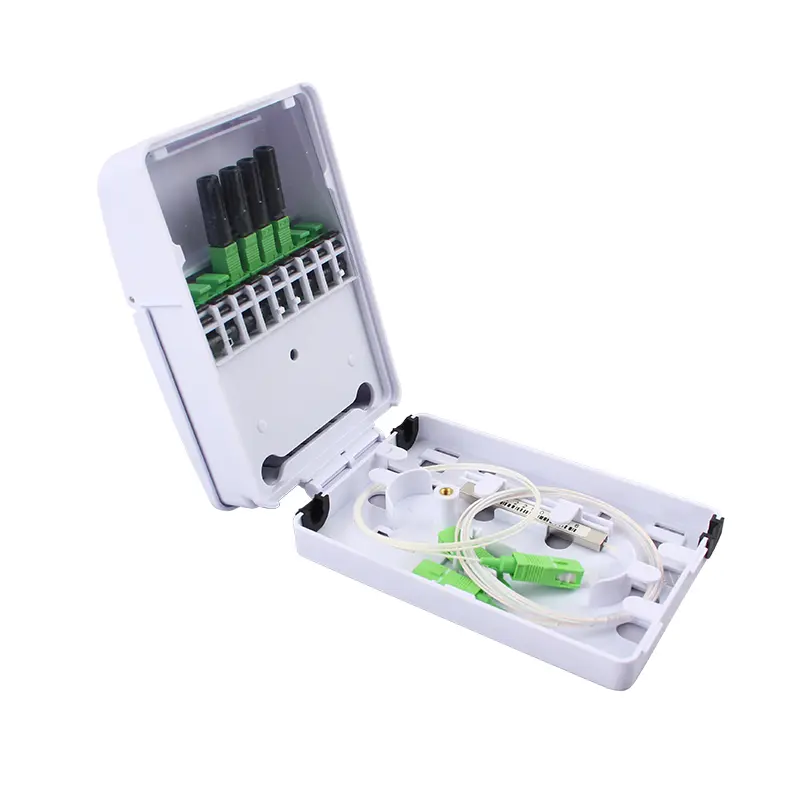

fiber terminal box fat 8x inner view-3

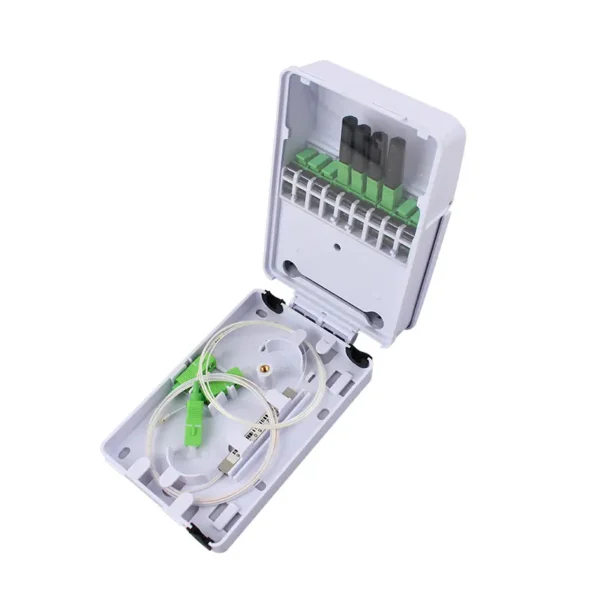

fiber terminal box fat 8x inner view-2

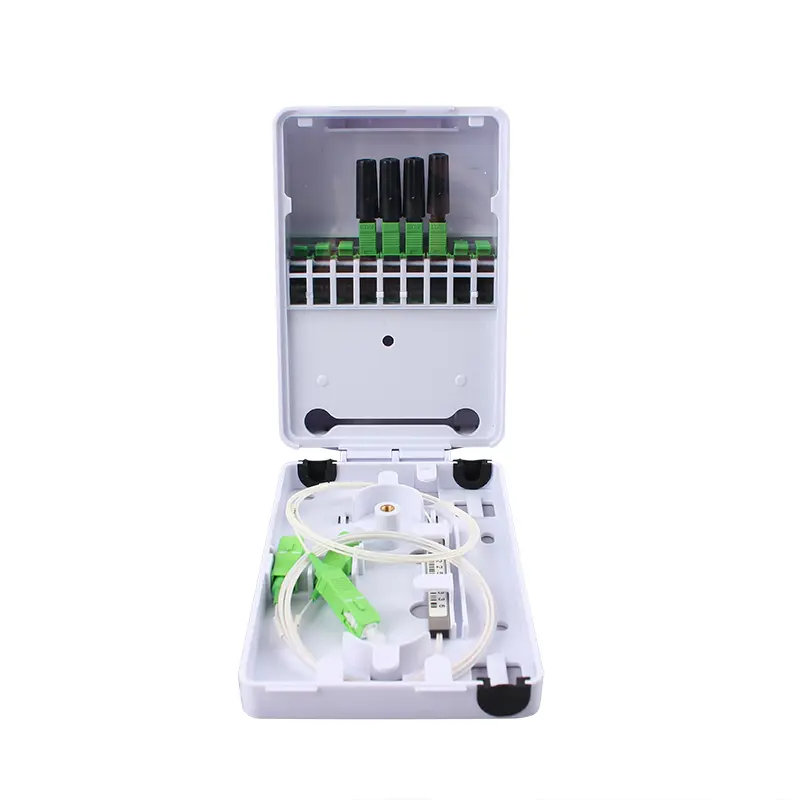

fiber terminal box fat 8x inner view
fiber terminal box fat 8x side view
fiber terminal box fat 8x front view
fiber terminal box fat 8x inner view-3
fiber terminal box fat 8x inner view-2
fiber terminal box fat 8x inner view
fiber terminal box fat 8x side view

Product Inquiry

Kindly send us your product you want or project details. We will quote for you within 24 hours!

The FAT-8X fiber termination box is designed as a termination and distribution point between feeder cables and drop cables in FTTx communication networks. It integrates fiber splicing, splitting, and distribution in one enclosure, while providing reliable protection and organized fiber management for both indoor and outdoor network deployments.

  • Non-Cutting Fiber Installation: Optical fibers can be installed without cutting, reducing installation time and minimizing signal loss risks.
  • All-in-One Fiber Management: Supports feeder cable clamping, drop cable entry, fiber splicing, fixation, storage, and distribution within a single box.
  • Independent Cable Routing Design: Feeder cables, pigtails, and patch cords run through separate paths to avoid interference and ensure neat fiber management.
  • Micro PLC Splitter Compatibility: Supports installation of 1×8 Micro PLC splitter or 1×9 Micro PLC splitter (unequal spectral), suitable for flexible FTTx network designs.
  • Flip-Up Distribution Panel: The internal distribution panel can be flipped up, allowing easy access to feeder cables through the expression port for fast installation and maintenance.
  • Flexible Mounting Options: Can be wall-mounted or pole-mounted, suitable for both indoor and outdoor applications.
  • Reliable Protection Level: IP55-rated enclosure provides protection against dust and water splashes, ensuring stable performance in various environments.

Product Specifications

Product Type: 8 Cores Material: ABS
Dimensions(H*W*D): 148*95*50mm Weight: 0.2 KG
Adapter Type SC Simplex/LC Duplex Splitter Type 1*8/1*9 mini type splitter
Number of Cable Entrance(s) and Exit(s) 3:8 Cable Inlet Caliber: 6-10mm
Working Temperature -40°C～+65°C Standard Accessories Cable ties, fiber protective sleeves, wall mounted tapped screws, rubber grommets for cable inlets&outlets(pre-installed), manual instruction.

FAQ

What type of splitter can be installed in the FAT-8X termination box?
It supports one 1×8 Micro PLC splitter or one 1×9 Micro PLC splitter with unequal spectral distribution.
Yes. The FAT-8X allows optical fibers to be installed without cutting, which helps reduce installation complexity and potential signal loss.
The box supports both wall-mounted and pole-mounted installation, offering flexibility for different deployment scenarios.
