SC UPC Fast Field Connector with Locking

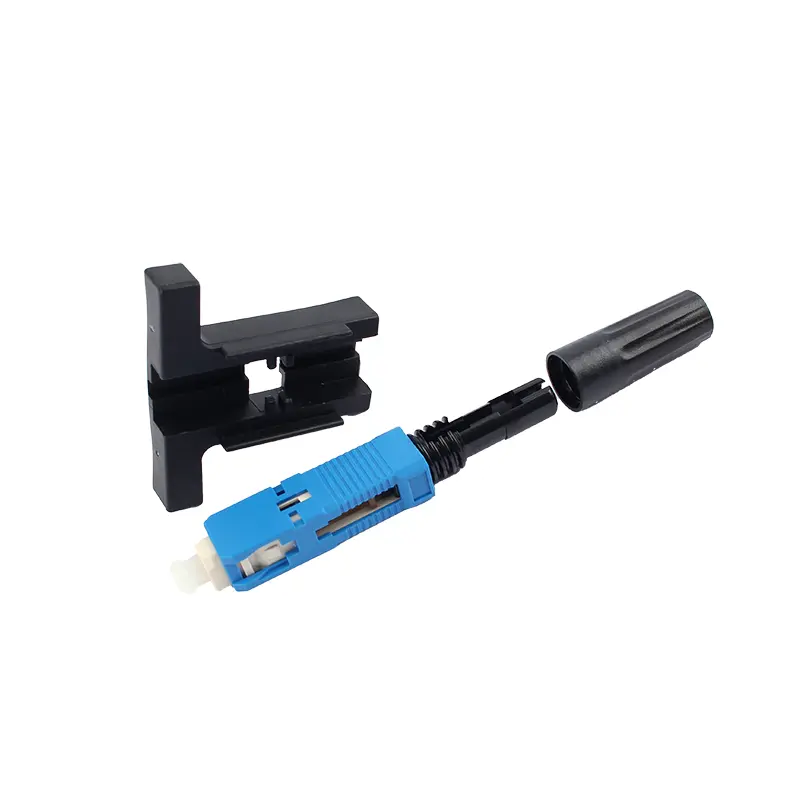

fast connector with mechanical lock-assembly view

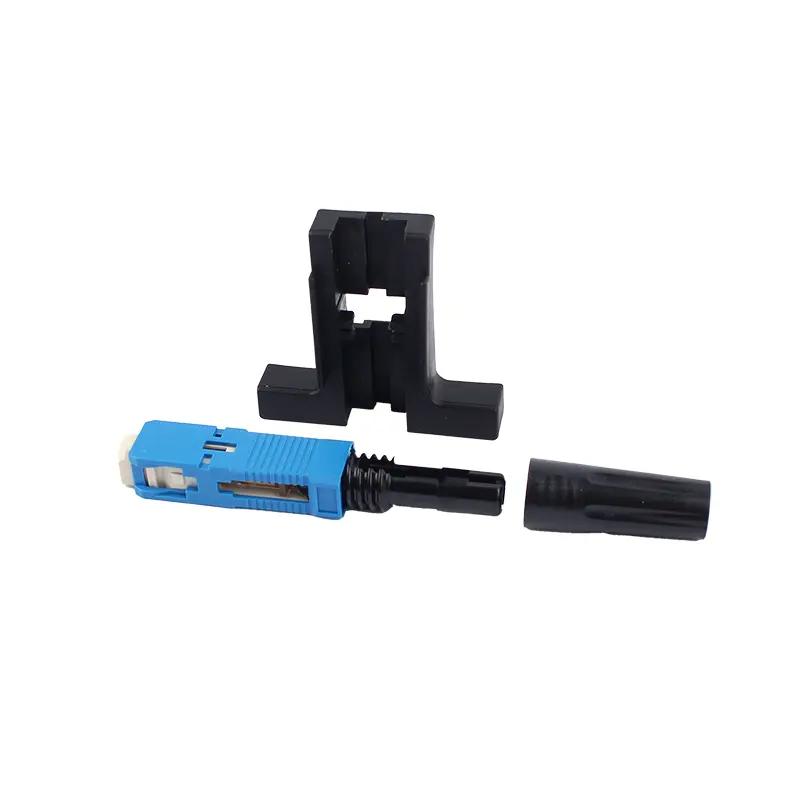

fast connector with mechanical lock -2

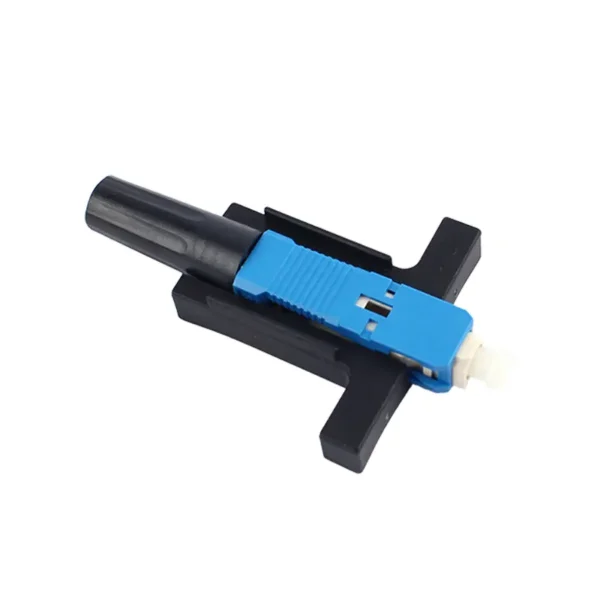

sc fast connector with mechanical lock front view

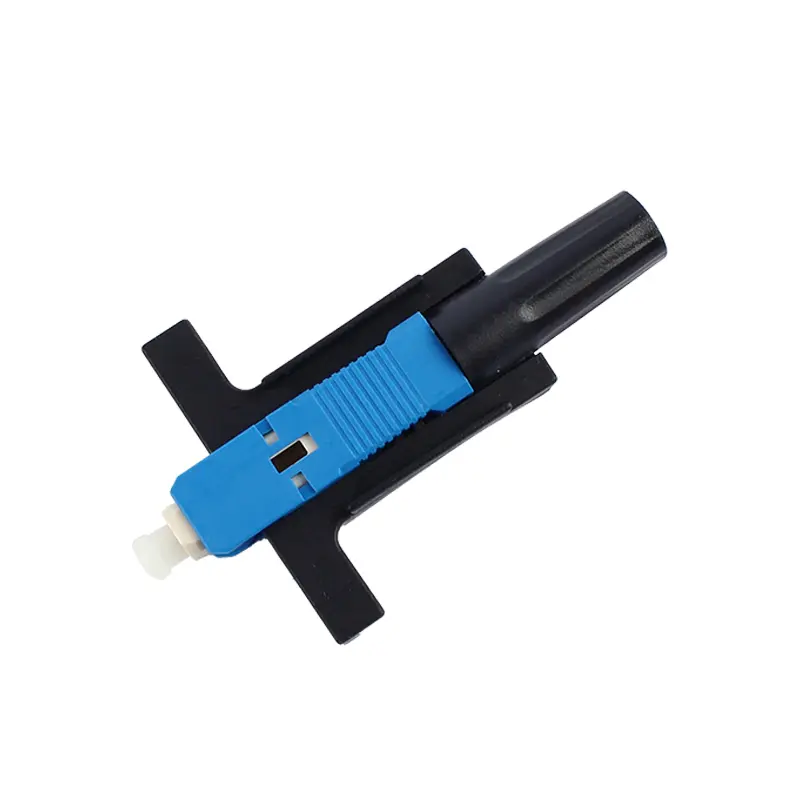

fast connector with mechanical lock-3
fast connector with mechanical lock-assembly view
fast connector with mechanical lock -2
sc fast connector with mechanical lock front view
fast connector with mechanical lock-3

Product Inquiry

Kindly send us your product you want or project details. We will quote for you within 24 hours!

The SC UPC Fast Field Connector with Mechanical Locking Mechanism is an upgraded solution designed to provide more stable fiber fixation and improved installation reliability during field termination.

This connector features an external locking sleeve that securely fixes the bare fiber after insertion, preventing fiber movement during pulling, vibration, or long-term use. Compared with standard fast connectors, the locking structure enhances mechanical stability while maintaining simple tool-free installation.

Using a pre-polished UPC ferrule and fiber pre-embedded technology, this connector supports fast on-site termination for FTTH drop cables (3.0 × 2.0 mm / 1.6 × 2.0 mm) and G.652 / G.657 single-mode fibers. It is well suited for applications where stable fiber positioning and consistent optical performance are required.

Product Specifications

Connector Type SC UPC Locking Structure External Mechanical Locking Sleeve
Cable Scope 3.0 × 2.0 mm / 1.6 × 2.0 mm Bow-type Drop Cable Length 58 mm
Fiber Type Single-mode (G.652 & G.657) Fiber Diameter 125 μm
Coating Diameter 250 μm Mode SM
Operation Time ≤ 3 min Insertion Loss ≤ 0.2 dB, Max ≤ 0.4 dB (1310 nm & 1550 nm)
Return Loss ≥ 40 dB (UPC / PC) Success Rate ≥ 97%
Reusable Times ≥ 5 times Tighten Strength of Naked Fiber > 5 N
Tensile Strength > 30 N (3.0 × 2.0 mm Drop Cable) Operating Temperature -40 ~ +85 °C
Online Tensile Strength Test (20 N) IL ≤ 0.3 dB Mechanical Durability (500 times) IL ≤ 0.3 dB

FAQ

What is the function of the mechanical locking sleeve?
The locking sleeve is used to secure the bare fiber after insertion, preventing fiber movement and improving mechanical stability during installation and long-term use.
No. The installation process remains simple and does not require fusion splicing or epoxy, only slightly longer than standard fast connectors.
Yes. The connector supports multiple reuse cycles (≥5 times) when properly unlocked and reinstalled.
