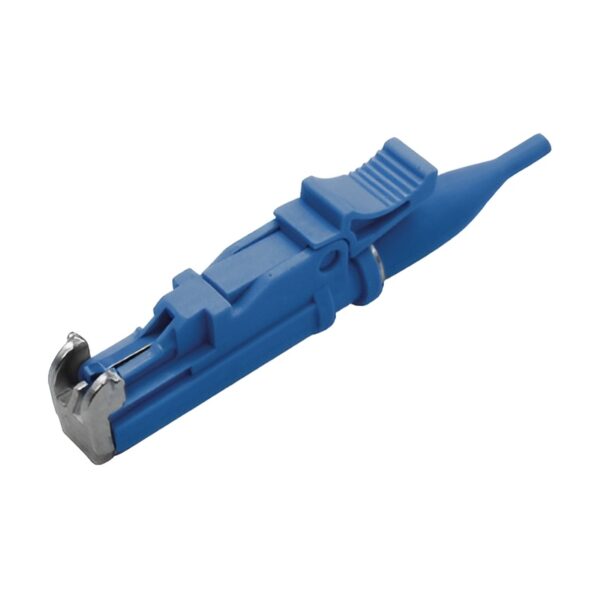

E2000 UPC 0.9mm Connectors
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
The E2000 UPC 0.9mm Connector is a high-reliability solution for single-mode simplex fiber applications, offering excellent optical performance and a spring-loaded shutter for automatic dust protection. It features UPC polishing, achieving insertion loss ≤0.25dB and return loss ≥55dB.
With a compact 0.9mm blue boot, durable ferrule assembly, and secure locking mechanism, it’s ideal for telecom systems, instrumentation, and FTTx terminal boxes. Rated for over 1000 mating cycles, it ensures consistent signal quality in demanding environments.
Connector Parts: Dust Cap, Blue Outer Housing, Ferrule Assembly, Spring, Stopper, Blue boot
Product Specifications
| Fiber Count: | Simplex | Insertion Loss: | ≤0.25dB |
| Fiber Mode: | Single Mode | Return Loss: | ≥55dB (UPC) |
| Polish Type: | UPC | Durability: | >1000times |
| Cable Diameter: | 0.9mm | Operating Temp: | -40~85°C |
| Color: | Blue | Customize: | Contact Us |
FAQ
What makes the E2000 connector different from LC or SC types?
Can this connector be used in field deployments?
What polish type does this model use, and what does it mean?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
