48 Cores Horizontal Type Fiber Optic Splice Closure
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

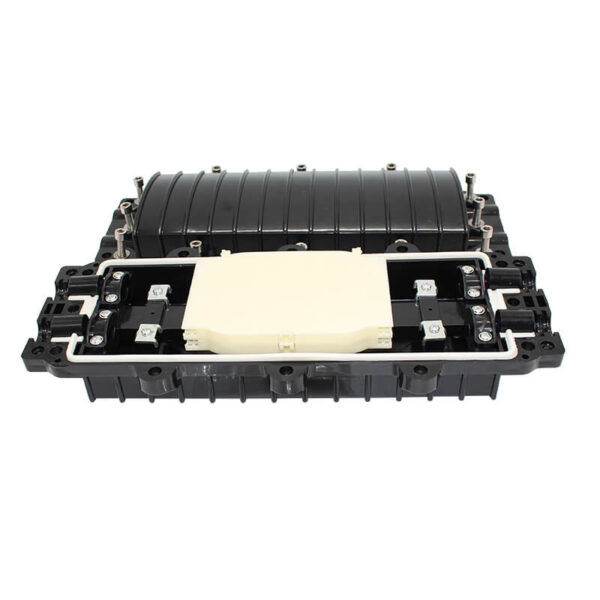

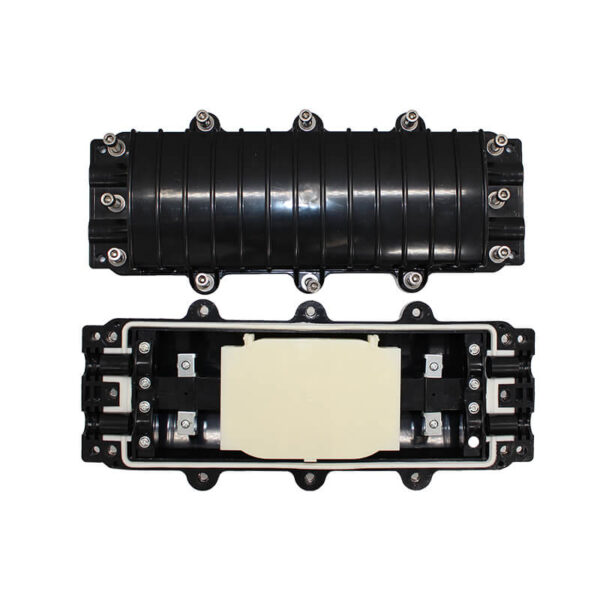

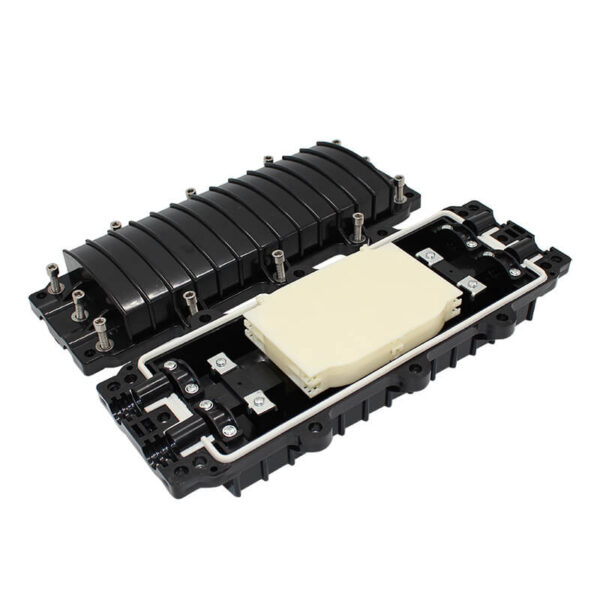

48 Core Horizontal Fiber Splice Closure – Rugged Design, Maximum Protection
Built to endure harsh environments, this 48-core horizontal fiber optic splice closure offers robust protection and efficient cable management for aerial fiber networks. With a mechanical seal design and PC+ABS body, it ensures long-term durability and weather resistance in a compact 385×190×100mm form factor.
It features 4 cable entry ports (Φ10–Φ16mm) and supports up to 2 splice trays, accommodating a total of 48 fibers. The anti-removable screw-type cover provides easy access during maintenance while ensuring a secure seal. Ideal for aerial installations in FTTX, backbone, or distribution networks.
Whether for rural deployments or urban aerial cable routes, this closure delivers a reliable and secure fiber splicing solution.
Product Specifications
| Sealing Type: | Mechanical Seal Type | Dimensions: | 385*190*100mm |
| Weight: | 1.5KG | Cable Ports: | 4 Entries (2 on each side) |
| Diameter Of Cable Ports: | Ф10～Ф16 | Number of splice trays(max): | 2 |
| Max capacity of fiber: | 48 | Working Temperature: | -40~65°C |
| Opening Type: | Anti-removable Screw-Type | Installation Type: | Aerial |
| Material: | PC+ABS |
FAQ
Is this closure waterproof or weather-resistant?
What installation types is it suitable for?
How is the closure accessed during maintenance?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
