4 Port Tyoe-B Fiber Optic Outlet Box
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!

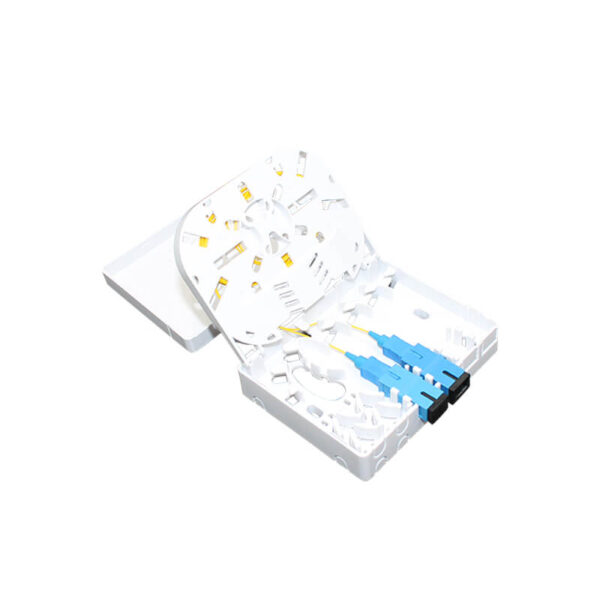

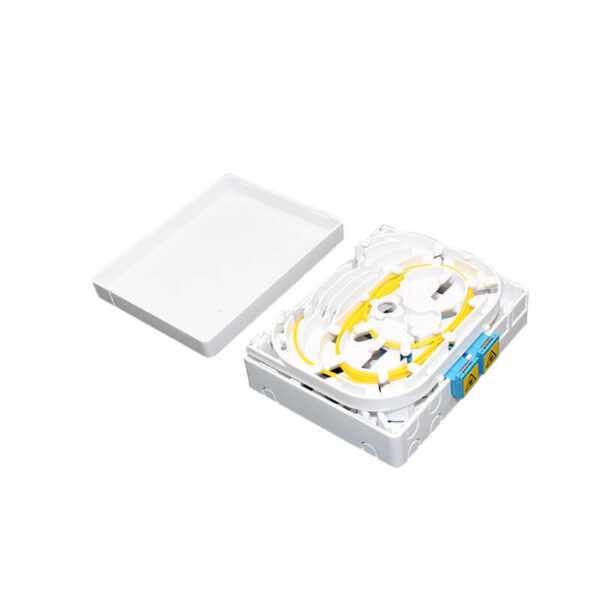

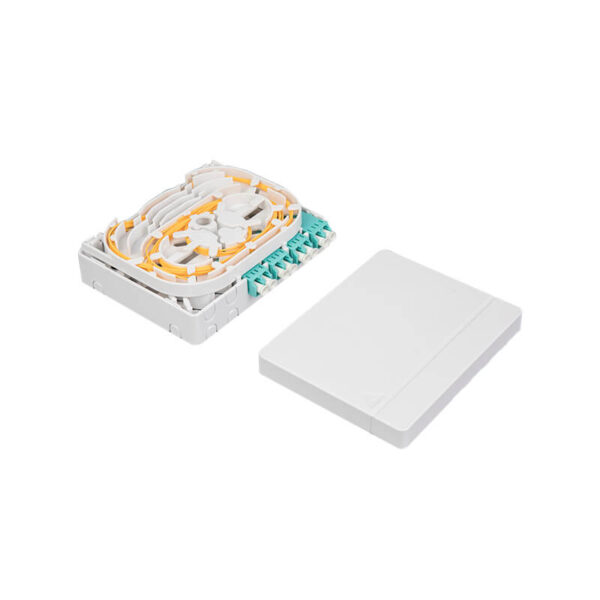

This 4-port desktop fiber optic outlet box features a dual-layer design with removable adapter ports, offering enhanced flexibility and cable management for high-density fiber applications. It supports both internal (protected) and external (easily accessible) mounting of SC simplex or LC duplex adapters — accommodating up to 4 SC simplex or 4 LC duplex connections. Ideal for home, office, or communication room use, this box ensures safe, organized fiber termination with a compact footprint.
Supports 4 SC simplex or 4 LC duplex adapters
Dual-layer internal structure for improved routing and bend radius protection
Removable adapter panel allows quick changes and maintenance
Adapters can be mounted internally for safety or externally for easy access
Suitable for FTTH, FTTD, and indoor telecom wiring
Product Specifications
| Product Name： | Fiber Optic Distribution Outlet Box | Application: | FTTX |
| Port: | 4 port | Adapter Capacity: | 4pcs |
| Size((H*W*D): | 100mm*80mm*30mm | Weight: | 75g |
| Color: | White | Adapter Type: | SC Simplex / LC Duplex |
| Fiber Mode: | Singlemode/Multimode | Work Enironment: | Indoor |
| Working Temperature: | -40℃~+65℃ | ROHS Compliancy Status: | Compliant |
FAQ
Does the dual-layer design affect fiber bending or routing?
What kind of environments is this box suitable for?
FACTORY SHOWCASE
YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.
