24 Port Outdoor Fiber Optic Distribution Box A01

This 24-port outdoor fiber optic distribution box is designed for higher-capacity FTTx fiber termination and distribution applications. It supports up to two incoming fiber optic cables, integrated splitter installation, and up to twenty-four fiber terminations, providing a reliable and cost-effective solution for outdoor access networks requiring greater distribution capacity.

• 2 In / 24 Out Configuration: Supports termination of up to 2 feeder fiber cables and distribution to 24 output ports, suitable for high-density FTTx deployments.
• High-Capacity Splicing Support: Provides internal space for up to 24 fiber splices, meeting the requirements of expanding access networks.
• Splice and Patch Separation Structure: Independent routing areas for fiber splicing and patch cords allow easy capacity expansion and simplify maintenance.
• SC Adapter Compatibility: Supports installation of up to 24 SC adapters for standardized and reliable fiber connections.
• Mini PLC Splitter Compatibility: Supports 1×8 or 1×16 mini type PLC splitters, offering flexible optical distribution options.

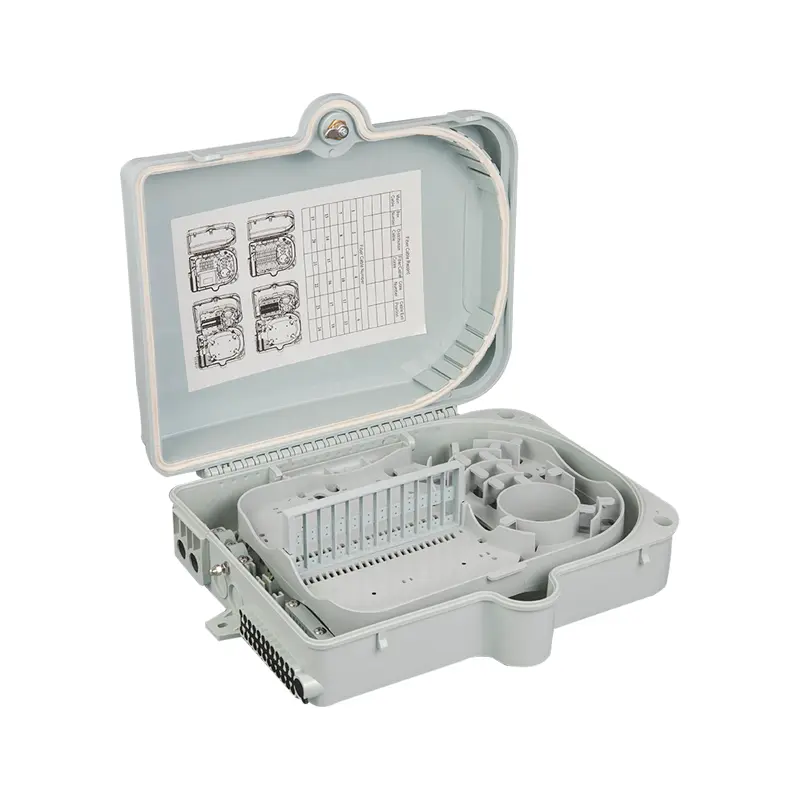

• Internal Turnover Structure: Flip-style internal design allows convenient access to internal components during installation and maintenance.
• Durable Plastic Enclosure: Made of high-quality plastic with a clean appearance, designed for stable long-term outdoor performance.

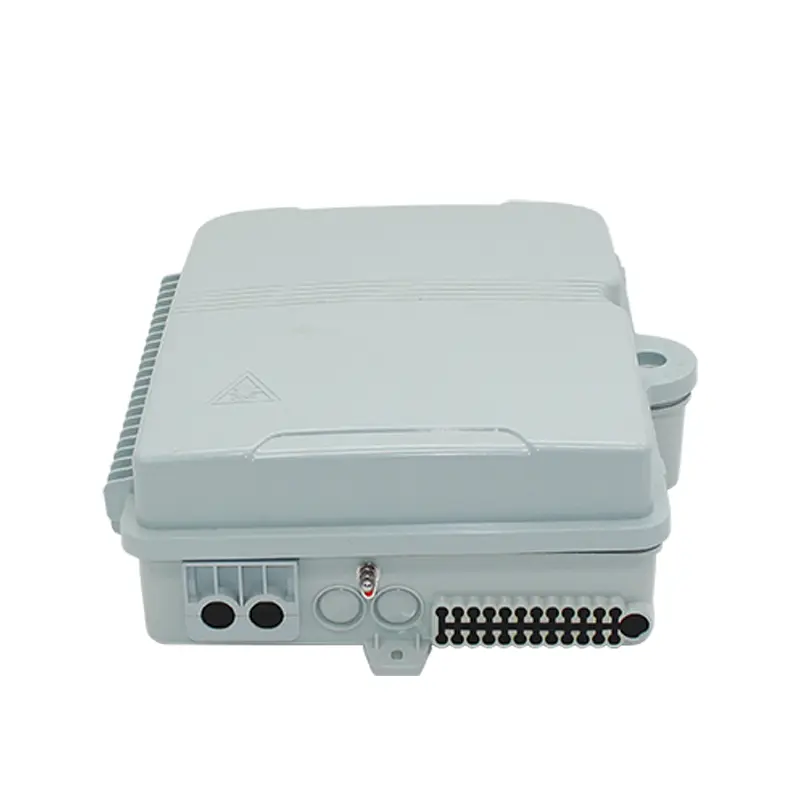

• Multiple Drop Cable Exits: Supports up to 24 drop cable outlets for organized cable management.
• Outdoor Protection Level: IP55-rated enclosure provides protection against dust and water splashes.

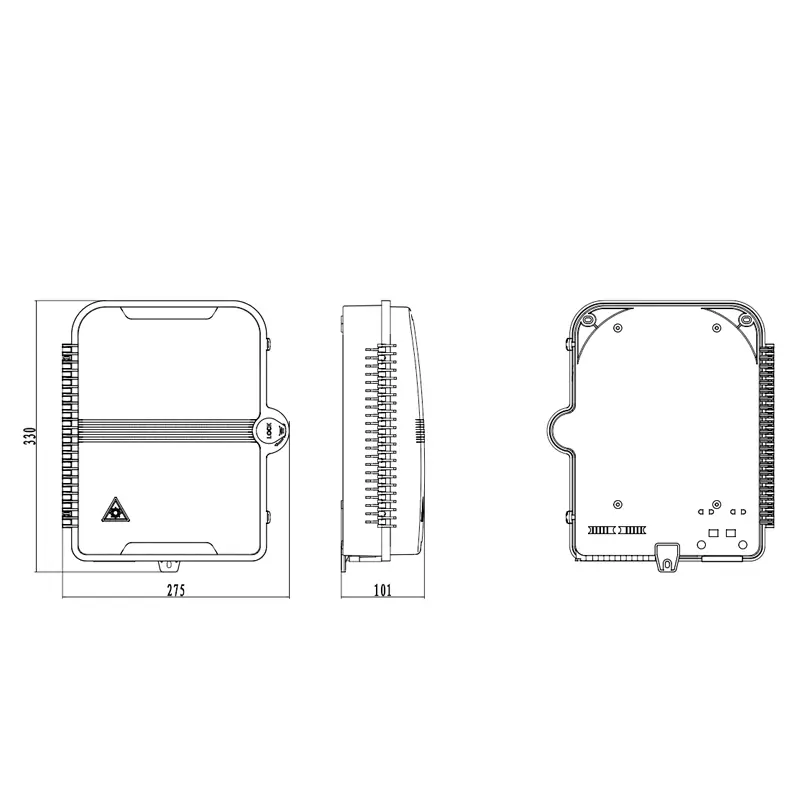

• Compact Size with High Capacity: Overall dimensions of 330 × 275 × 101 mm, balancing high port density with a compact footprint.
• Lightweight Design: Net weight of approximately 1.25 kg, easy to handle and install on-site.
