2 Port Type-E Fiber Optic Distribution Outlet Box

2 port type E fiber outlet box-Front View

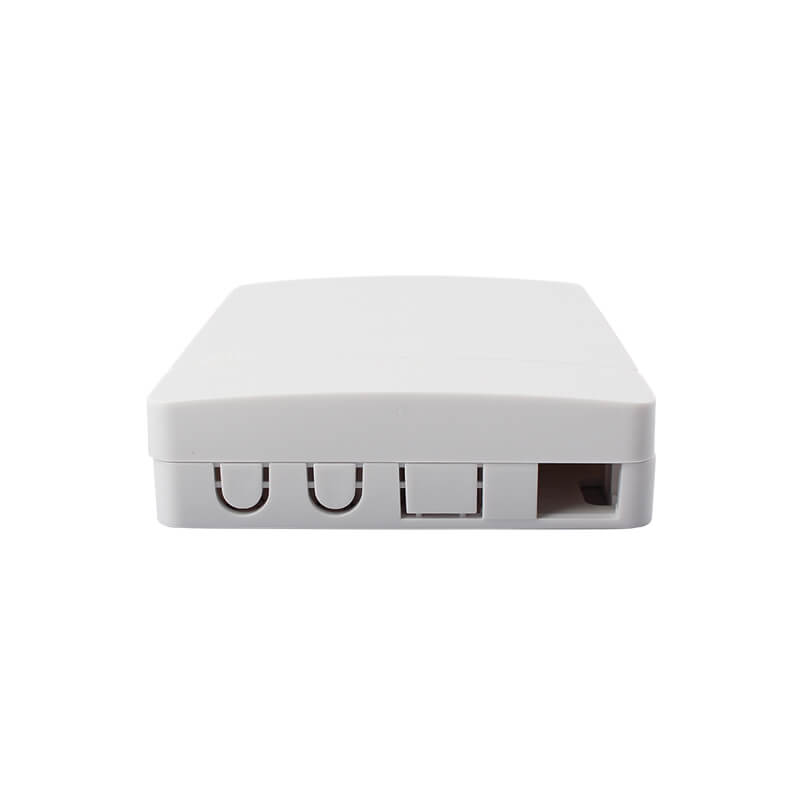

2 port type E fiber outlet box-side view

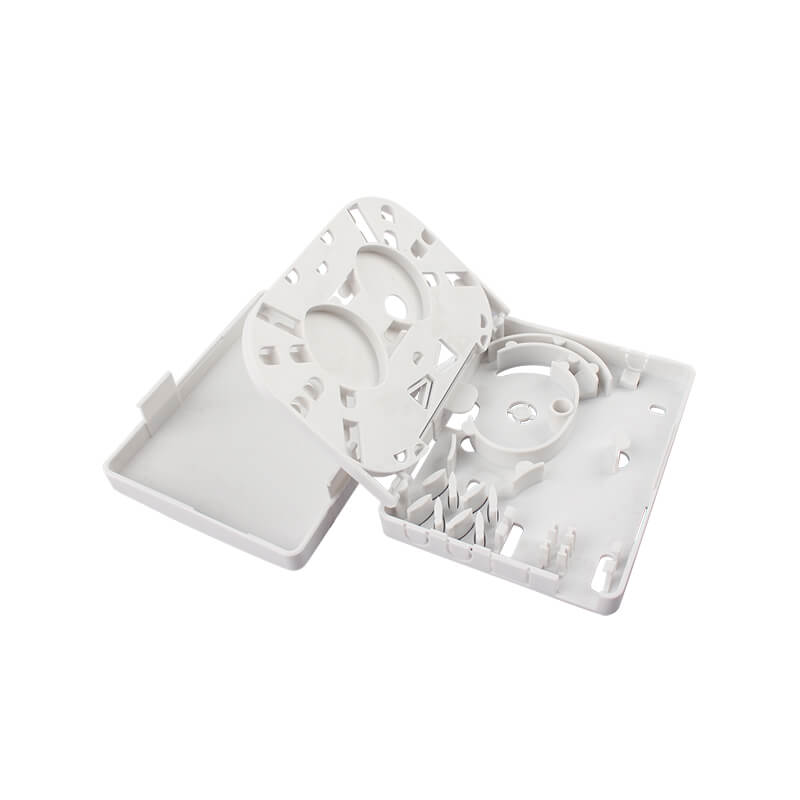

2 port type E fiber outlet box-Open view
2 port type E fiber outlet box-Steeel Open
2 port type E fiber outlet box-accessories
2 port type E fiber outlet box-Front View
2 port type E fiber outlet box-side view
2 port type E fiber outlet box-Open view
2 port type E fiber outlet box-Steeel Open
2 port type E fiber outlet box-accessories

Product Inquiry

Kindly send us your product you want or project details. We will quote for you within 24 hours!

This 2 Port Type-E fiber optic outlet box is designed for high-density indoor use / FTTH deployment / wall-mount scenarios. Compared with other models, it features unique trait such as  dual-layer structure. Made from high-quality ABS, it ensures reliable performance for both singlemode and multimode fibers.

  • Ultra Compact Design: Optimized size (only 22mm thickness) for use in desktop/wall-mounting.
  • Strong Mechanical Performance: Supports proper fiber bending radius and offers effective protection for incoming/outgoing fibers.
  • Adapter Compatibility: Supports 2 SC Simplex APC/UPC or 2 LC Duplex APC/UPC adapters.
  • Cold Connector Compatibility: Supports direct connection of cold connectors, tail fibers, or drop cables without additional splicing.
  • Dust Protection: Equipped with a clamshell-style dustproof cover for better cleanliness.
  • Easy Snap-Fit Design：Equipped with a snap-fit latch system that offers both secure closure and convenient tool-free disassembly.
  • Flexible Adapter Mounting: Internal position for better protection or external for easy access.

Product Specifications

Product Name： Fiber Optic Distribution Outlet Box Application: FTTX
Port: 2 port Adapter Capacity: 2pcs
Size((H*W*D): 100mm*80mm*22mm Weight: 75g
Color: White Adapter Type: SC Simplex / LC Duplex
Fiber Mode: Singlemode/Multimode Work Enironment: Indoor
Working Temperature: -40℃~+65℃ ROHS Compliancy Status: Compliant

FAQ

Can this box be used for wall-mounted and desktop installations?
Yes, it is designed for both types of installations depending on your deployment needs.
Yes, we have a very strong mold team and support ODM/OEM.

FACTORY SHOWCASE

YingFeng has led the fiber optics industry as China’s No.1 manufacturer of connectors and adapters — supplying nearly 50% of the global capacity with unmatched precision and consistency.

YingFeng fiber optic manufacturing factory in China — 40,000㎡ production area with in-house cable and connector assembly lines
fiber optic outlet box plastic injection machine line
Injection Molding Machine at Yingfeng Factory
OEM high speed milling machines
Workers assembling fiber optic patch cords at Yingfeng’s workshop
Automated ferrule assembly workshop for high-precision fiber optic components
Technician performing quality testing on fiber optic products in factory lab
