16 Port Outdoor Fiber Optic Distribution Box A01

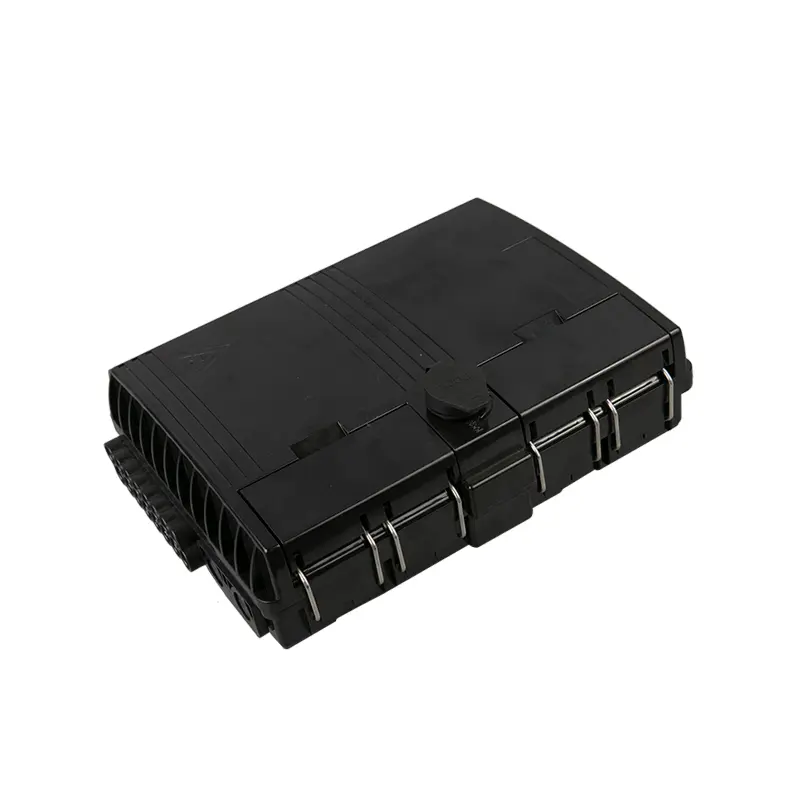

16 cores fiber distribution box a01- front view
16 cores fiber distribution box a01-side view

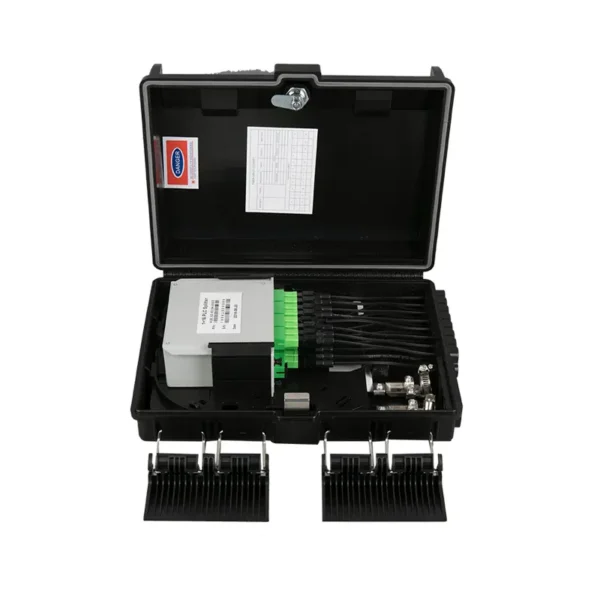

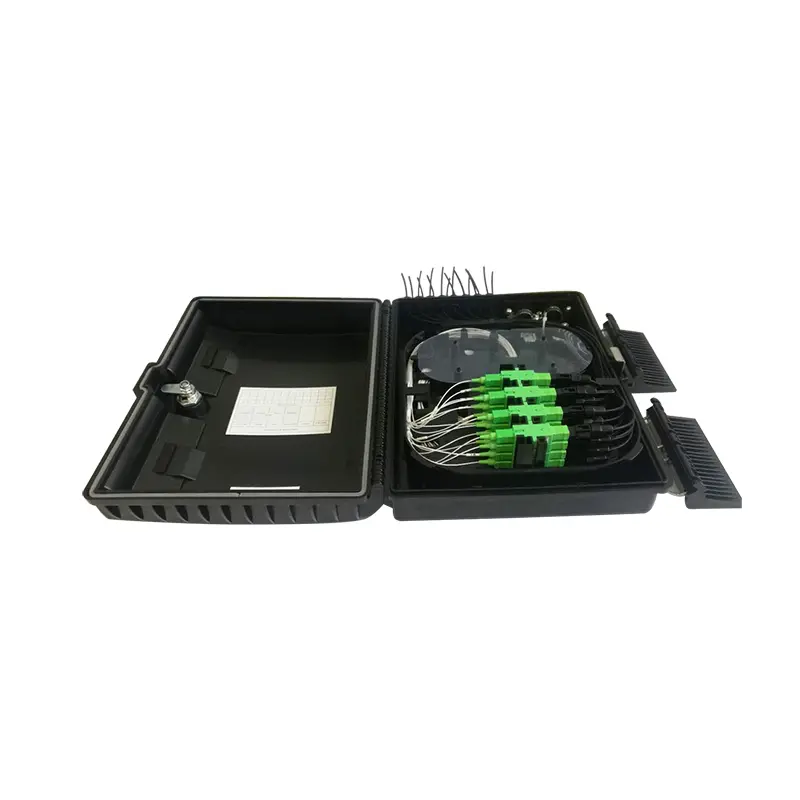

16 cores fiber distribution box a01-inner view
16 cores fiber distribution box a01-side view

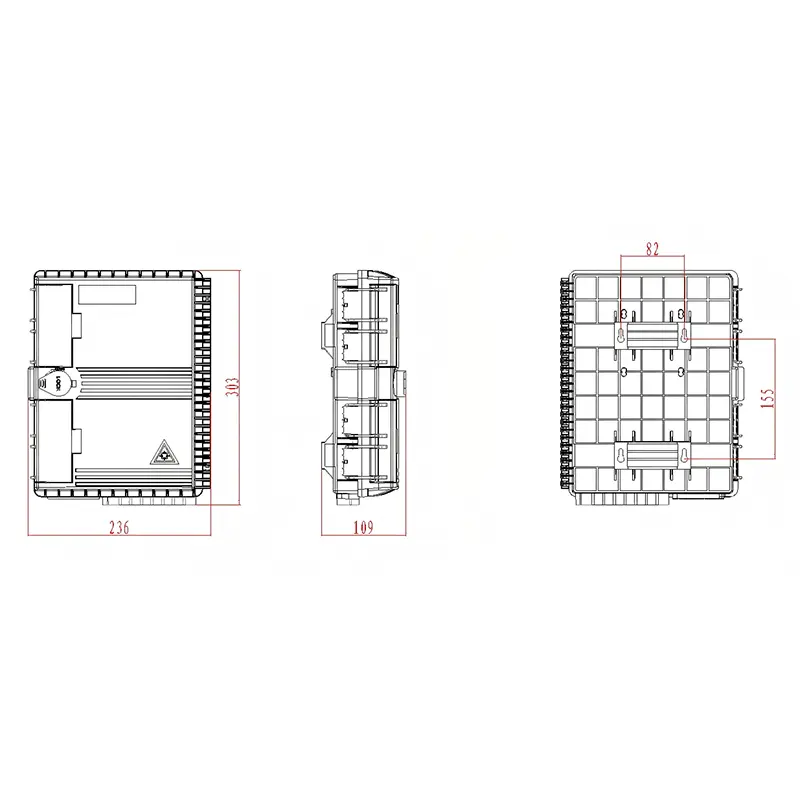

16 cores fiber distribution box a01- size
16 cores fiber distribution box a01- front view
16 cores fiber distribution box a01-side view
16 cores fiber distribution box a01-inner view
16 cores fiber distribution box a01-side view
16 cores fiber distribution box a01- size

Product Inquiry

Kindly send us your product you want or project details. We will quote for you within 24 hours!

This 16-port outdoor fiber optic distribution box is designed for higher-capacity FTTx fiber termination and distribution applications. It supports up to two incoming fiber optic cables, integrated splitter installation, and up to sixteen fiber terminations, providing a reliable and cost-effective solution for expanding outdoor access networks.

  • 2 In / 16 Out Configuration: Supports termination of up to 2 feeder fiber cables and distribution to 16 output ports, suitable for medium to high-density FTTx deployments.
  • High-Capacity Splicing Support: Provides internal space for up to 16 fiber splices, meeting increased network expansion requirements.
  • Splice and Patch Separation Structure: Independent routing areas for fiber splicing and patch cords allow easier capacity expansion and simplified maintenance.
  • SC Adapter Compatibility: Supports installation of up to 16 SC adapters for standardized and reliable fiber connections.
  • Flexible Splitter Installation Options: Compatible with both mini type optical splitters and cassette PLC splitters, offering greater flexibility in network design.

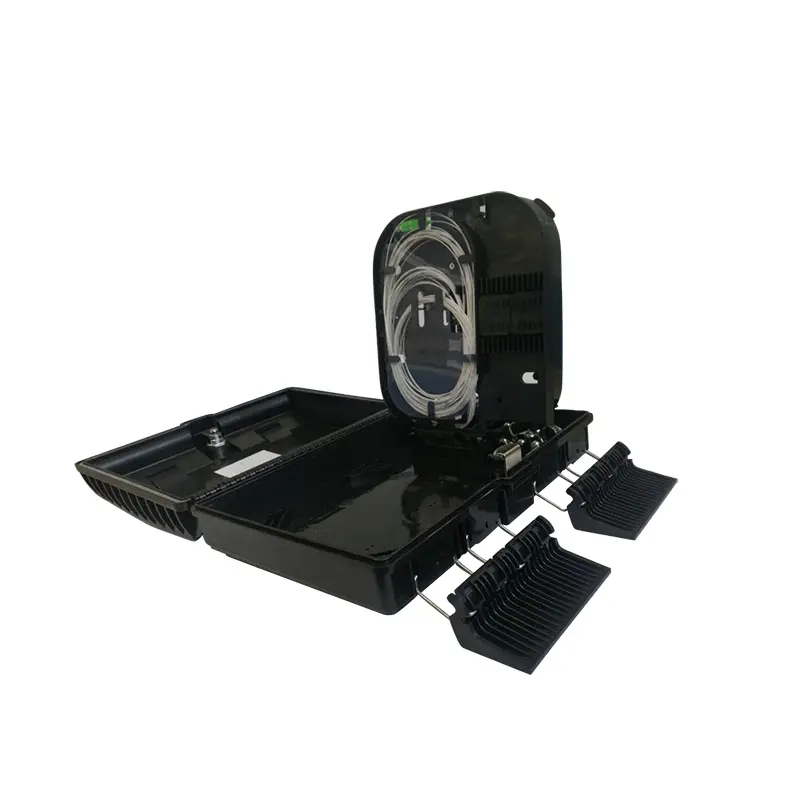

  • Internal Turnover Structure: Flip-style internal layout allows quick and convenient access during installation and routine maintenance.
  • Durable Plastic Enclosure: Made of high-quality plastic with a clean and professional appearance, suitable for long-term outdoor use.
  • Multiple Drop Cable Exits: Supports up to 16 drop cable outlets for organized fiber routing.
  • Outdoor Protection Level: IP55-rated enclosure provides protection against dust and water splashes in outdoor environments.

Product Specifications

Product Type: 16 Cores Material: ABS
Dimensions(H*W*D): 303mm*236mm*109mm Weight: 1.35kg
Adapter Capacility 16 PCs Splitter Type 1*8 /1*16 Cassette PLC splitter,1*8/1*16 mini type splitter
Number of Cable Entrance(s) and Exit(s) 2:16 Cable Inlet Caliber: 16mm
Working Temperature -40°C～+65°C Optional Accessories Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter
Package Contents Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set Package Material Carton box

FAQ

What splitter types are supported in this 16-port distribution box?
This box supports both mini type optical splitters and cassette PLC splitters, allowing flexible splitter configuration.
It supports up to 2 incoming fiber cables, 16 fiber splices, and installation of 16 SC adapters for outgoing connections.
Yes. The separated splicing and patching design, combined with the internal turnover structure, makes maintenance and future expansion convenient.
