16 Port Compact Fiber Optic Distribution Box B01
Product Inquiry
Kindly send us your product you want or project details. We will quote for you within 24 hours!
This compact 16-port outdoor fiber optic distribution box is designed for space-limited FTTx deployment scenarios. Compared with standard 16-port models, it features a smaller footprint and a more compact internal layout, while still supporting high-density fiber termination and reliable outdoor performance.
- 4 In / 16 Out Configuration: Supports up to 4 incoming fiber optic cables and distribution to 16 output ports, suitable for flexible feeder routing in FTTx access networks.
- Compact High-Density Design: Optimized enclosure size with a tighter internal layout, ideal for installations where space is limited.
- Splice and Patch Separation Structure: Independent routing for fiber splicing and patch cords enables easier capacity expansion and simplifies maintenance.

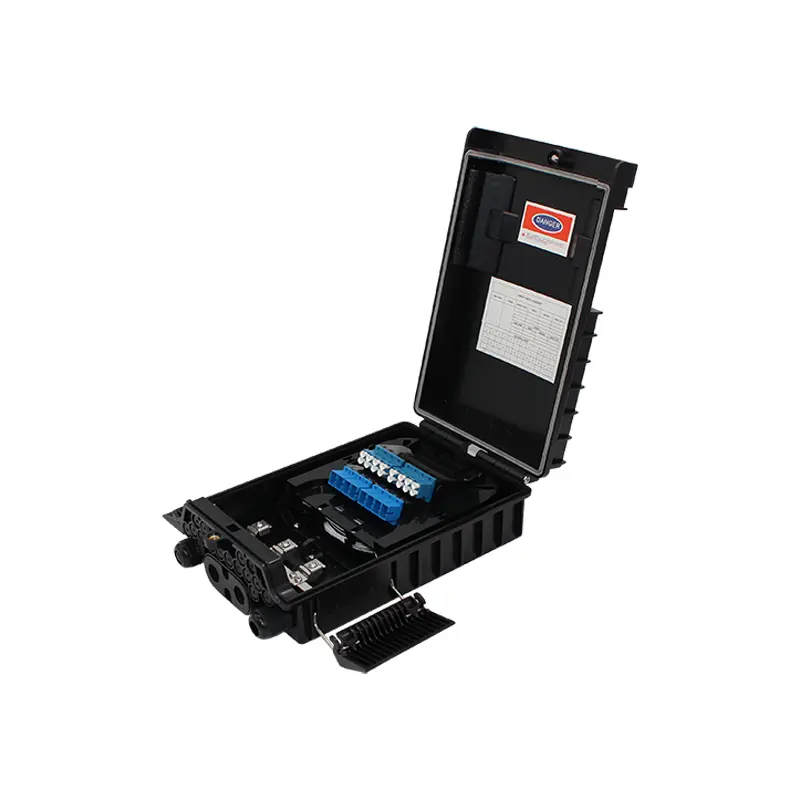

- SC Adapter Compatibility: Supports installation of up to 16 SC adapters for standardized fiber connections.
- Mini Splitter Support: Compatible with mini type optical splitters, optimized for compact internal space.

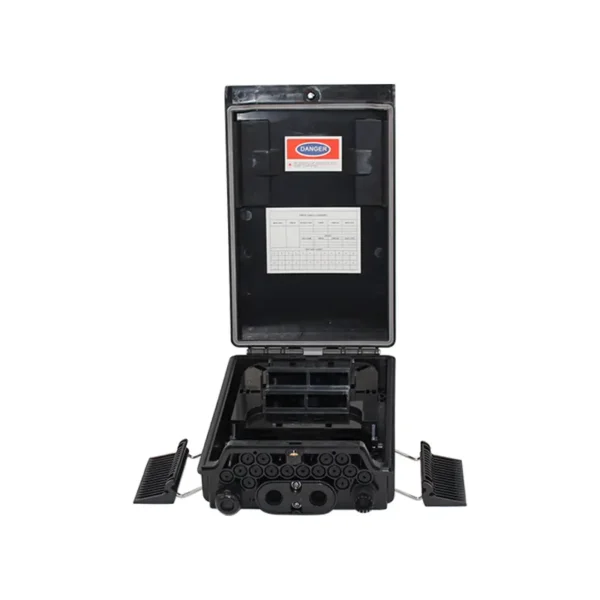

- Internal Turnover Structure: Flip-style internal design allows quick access to internal components during installation and servicing.

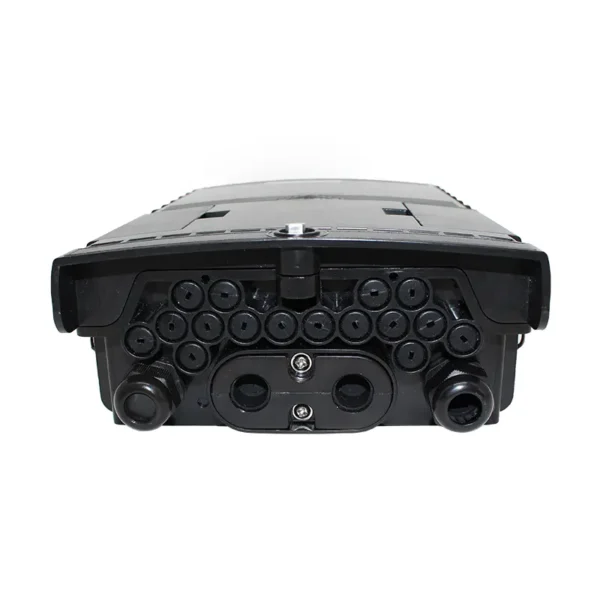

- Durable Plastic Enclosure: Made from high-quality plastic with a clean appearance, designed for long-term outdoor use.Multiple Drop Cable Exits: Supports up to 16 drop cable outlets for organized fiber routing.
- Outdoor Protection Level: IP55-rated enclosure provides reliable protection against dust and water splashes.
Product Specifications
| Product Type: | 16 Cores | Material: | ABS |

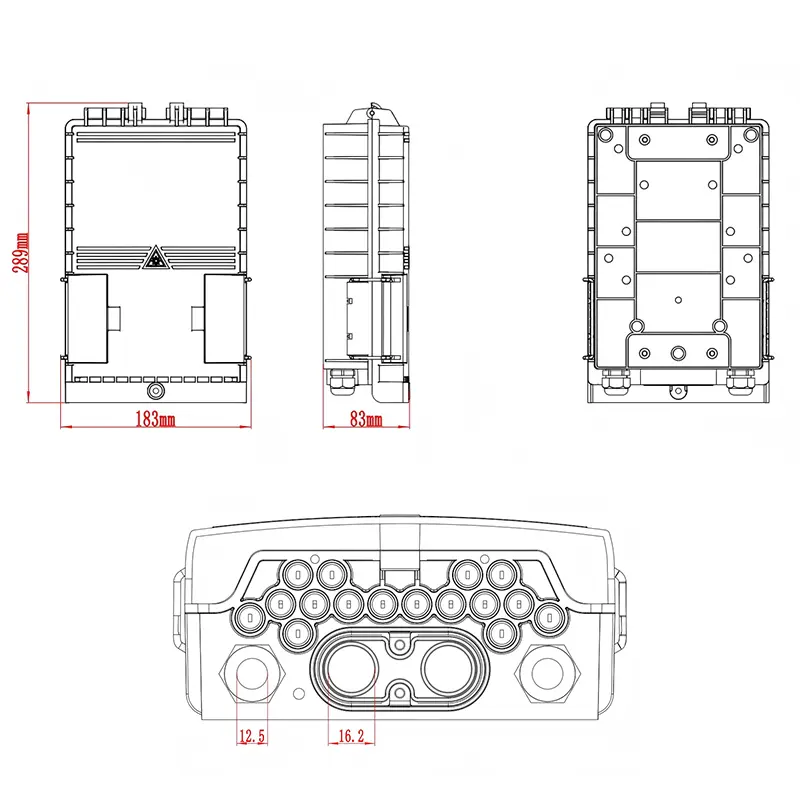

| Dimensions(H*W*D): | 289mm*183mm*83mm | Weight: | 890 g |
| Adapter Capacility | 16 PCs | Splitter Type | 1*8/1*16 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 4:16 | Cable Inlet Caliber: | Two inlets are 16mm and the other two are 12mm |
| Working Temperature | -40°C～+65°C | Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set | Package Material | Carton box |
FAQ
What is the main difference between this box and a standard 16-port distribution box?
This model features a more compact enclosure and optimized internal layout, making it suitable for space-constrained installations, while still supporting 16 fiber terminations.
How many feeder cables can be connected to this box?
It supports up to 4 incoming fiber optic cables and 16 outgoing drop cables.
