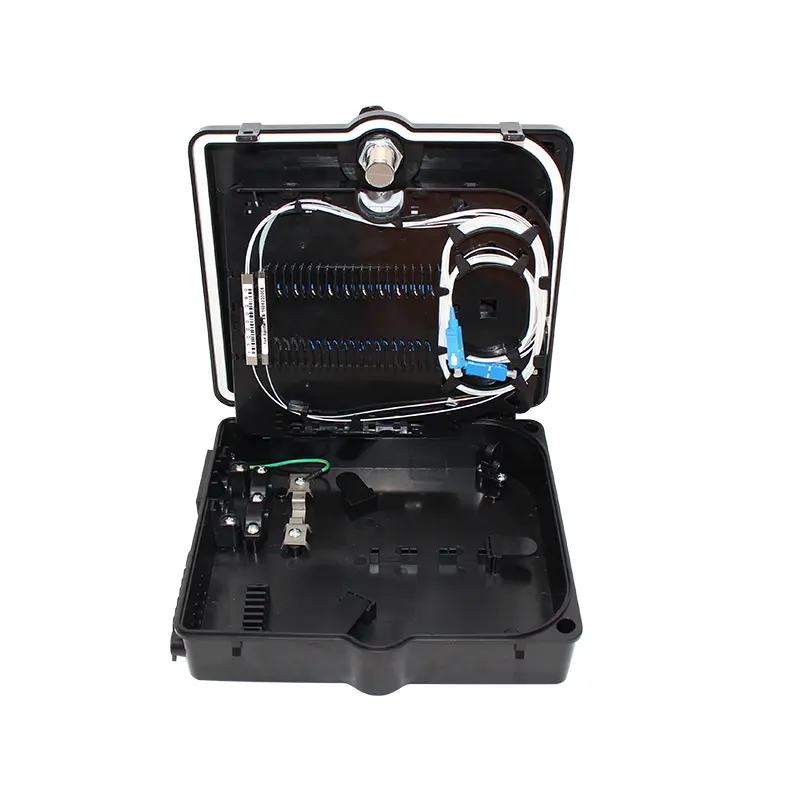

12 core fiber distribution box-inner

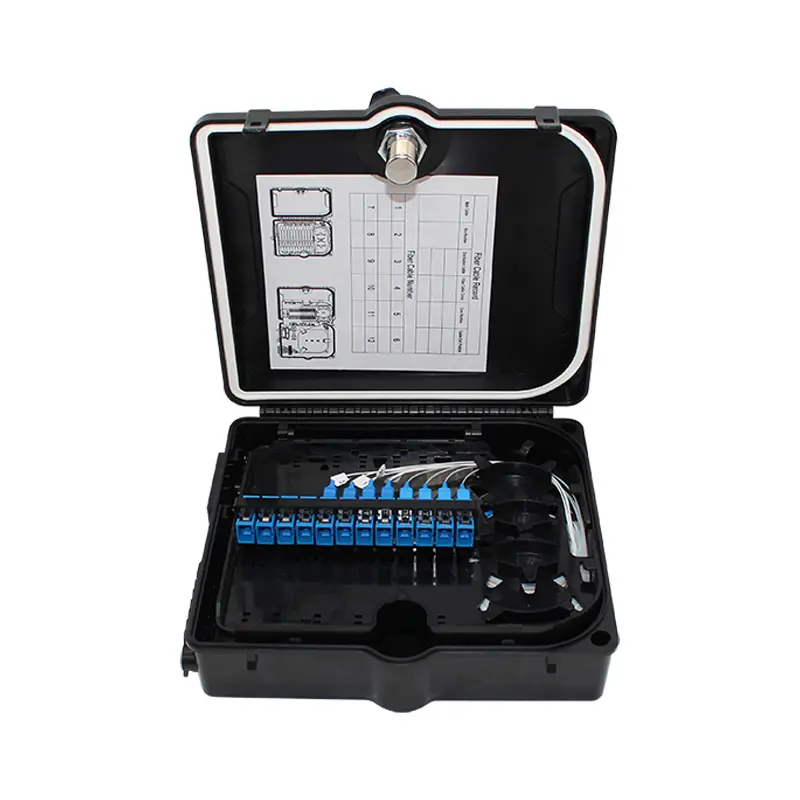

12 core fiber distribution box-a01 inner view

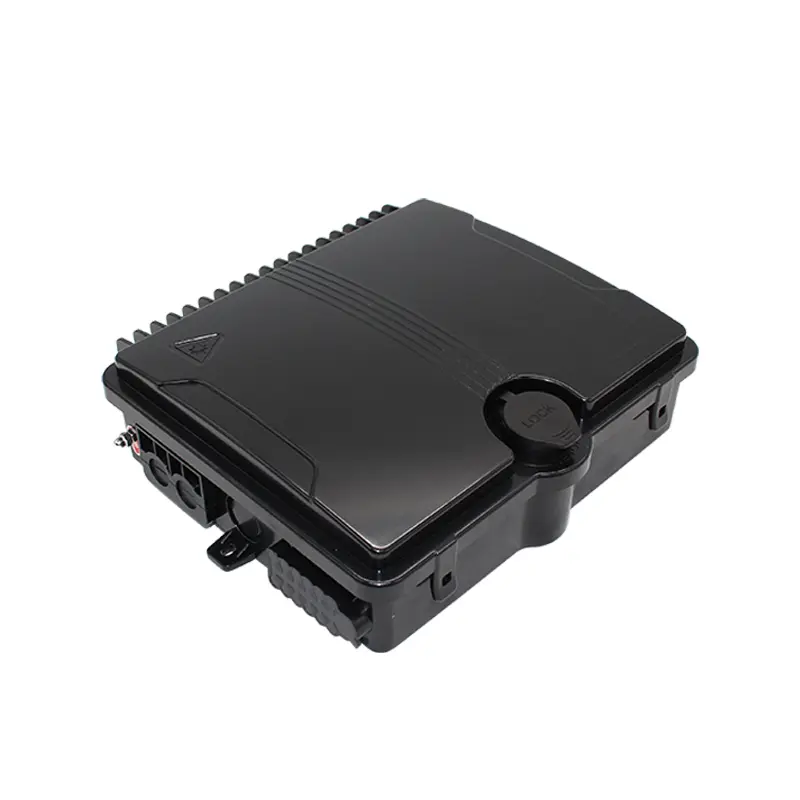

12 core fiber distribution box-a01 complete view

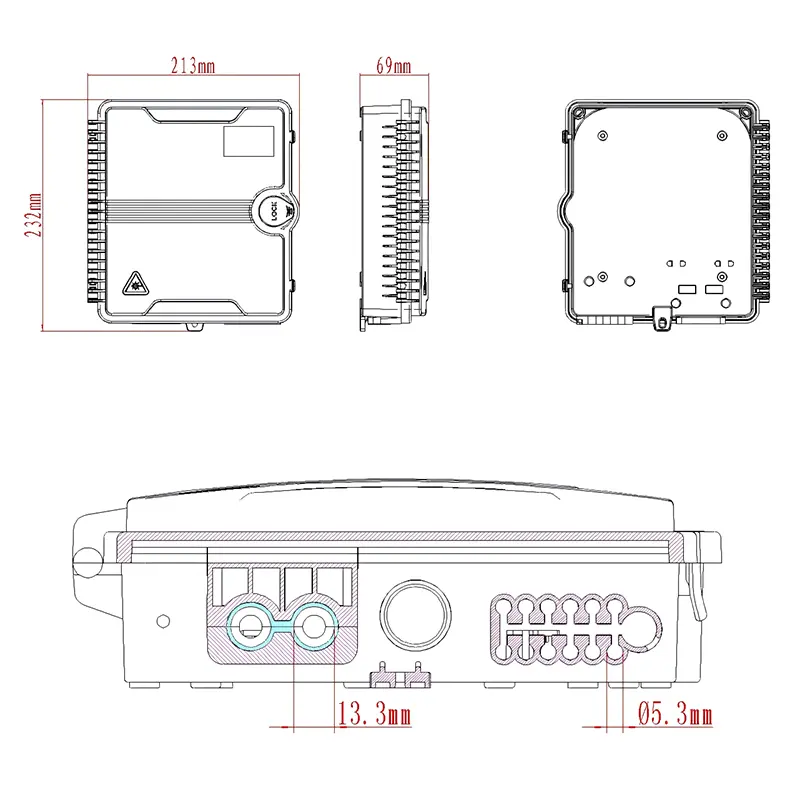

12 core fiber distribution box-size
12 core fiber distribution box-front view
12 core fiber distribution box-inner
12 core fiber distribution box-a01 inner view
12 core fiber distribution box-a01 complete view
12 core fiber distribution box-size

Product Inquiry

Kindly send us your product you want or project details. We will quote for you within 24 hours!

This 12-port outdoor fiber optic distribution box is designed for FTTx fiber termination and distribution applications. It supports up to two incoming fiber optic cables, integrated splitter installation, and up to twelve fiber terminations, providing a reliable and cost-effective solution for last-mile fiber network deployment in outdoor environments.

  • 2 In / 12 Out Configuration: Supports termination of up to 2 incoming fiber optic cables and distribution to 12 output ports, suitable for FTTx access networks.
  • High-Capacity Splicing Support: Provides space for up to 12 fiber splices, meeting medium-capacity distribution requirements.
  • Splice and Patch Separation Structure: Independent areas for fiber splicing and patch cord routing allow easier capacity expansion and simplify maintenance.
  • SC Adapter Compatibility: Supports installation of up to 12 SC adapters for standardized and stable fiber connections.
  • Mini Splitter Installation: Compatible with mini type optical splitters, enabling flexible fiber signal distribution within a compact enclosure.

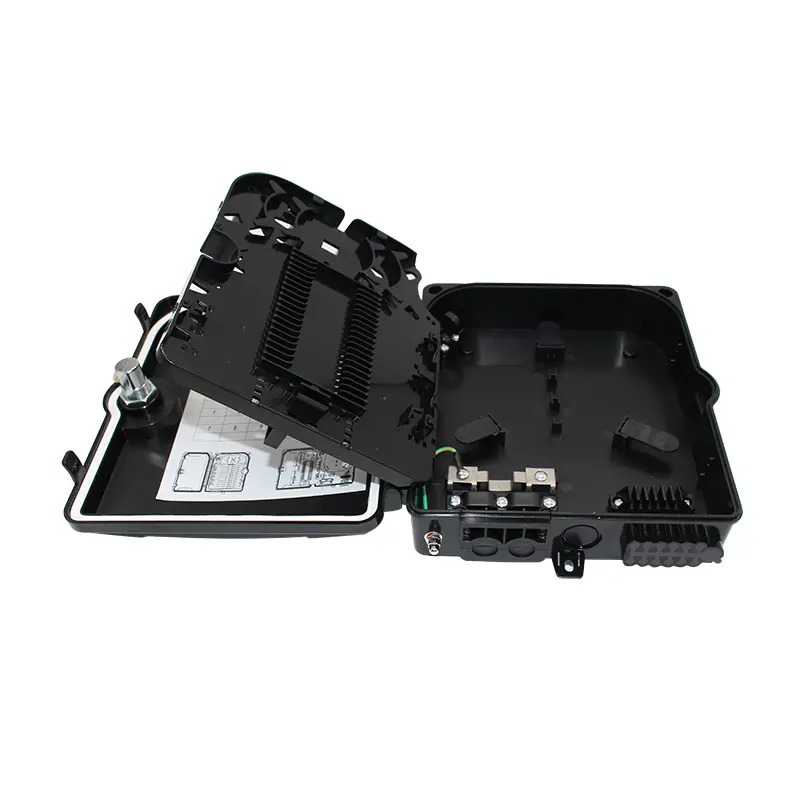

  • Easy Maintenance Design: Internal turnover structure offers convenient access to internal components during installation and servicing.
  • Durable Plastic Housing: Made of high-quality plastic with a clean and professional appearance, suitable for outdoor applications.
  • Multiple Drop Cable Exits: Supports up to 12 drop cable outlets for organized and flexible cable routing.
  • Outdoor Protection Level: IP55-rated enclosure provides reliable protection against dust and water splashes.

Product Specifications

Product Type: 12 Cores Material: ABS
Dimensions(H*W*D): 232mm*213mm*69mm Weight: 730g
Adapter Type SC Simplex/LC Duplex Splitter Type 1*4/1*8 mini type splitter
Number of Cable Entrance(s) and Exit(s) 2:12 Cable Inlet Caliber: 13
Working Temperature -40°C～+65°C Optional Accessories Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter
Package Contents Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set Package Material Carton box

FAQ

Is the box easy to maintain after installation?
Yes. The internal turnover structure and separated splicing/patching design make maintenance and future expansion easier.
