In the fast-paced world of modern networking, bandwidth demand is exploding. From hyperscale data centers to enterprise networks, the backbone of connectivity relies on high-density fiber optic solutions. To meet these requirements, multi-fiber connectors were developed, allowing multiple fibers to be connected in a single push.

Among these, two names dominate the conversation: MPO (Multi-Fiber Push-On) and MTP (Mechanical Transfer Push-on). Many engineers, technicians, and even purchasing managers often assume these terms are interchangeable. In reality, while they are compatible and serve similar functions, there are critical mechanical and performance differences that directly affect reliability, cost, and long-term efficiency.

This article takes a deep dive into what sets MPO and MTP apart, why it matters for your network, and how to make informed decisions when choosing between them.

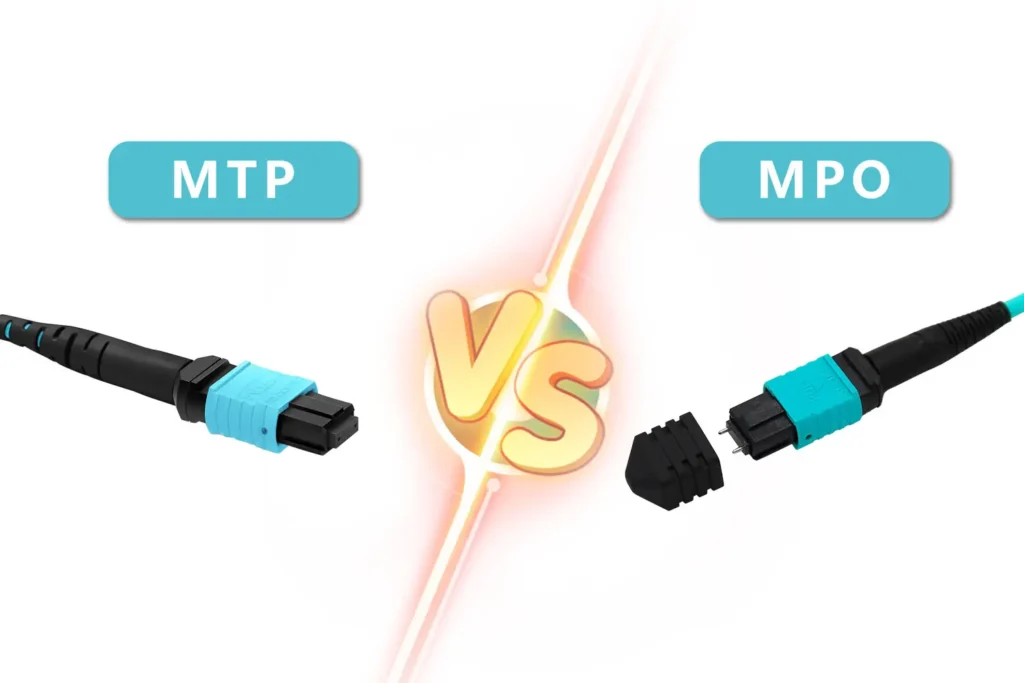

mpo vs mtp what is true different

TABLE OF CONTENTS

What Are MPO and MTP?

Before exploring the differences, let’s establish the basics.

  • MPO (Multi-Fiber Push-On):
    MPO is a generic, industry-standard connector defined by IEC-61754-7 and TIA-604-5 (FOCIS-5). It is widely manufactured by multiple suppliers around the world. MPO connectors can house 8, 12, 16, 24 fibers in a single rectangular ferrule, making them essential for high-density cabling systems.
  • MTP (Mechanical Transfer Push-on):
    MTP is a trademarked, high-performance version of MPO, developed by US Conec. It complies with the same industry standards, meaning it is fully compatible with MPO connectors. However, it introduces several mechanical enhancements that improve durability, optical performance, and ease of use.

👉 In short: All MTP connectors are MPO, but not all MPO connectors are MTP.

What difference about MPO and MTP

Housing Design: Fixed vs. Removable

One of the most visible differences lies in the housing.

MPO:

  • Traditional MPO connectors use a fixed housing. Once assembled, it cannot be adjusted.
  • This creates limitations: if polarity needs to be reversed or components replaced, the connector often must be discarded and rebuilt.

MTP:

  • MTP connectors feature a removable housing.
  • This small innovation provides major flexibility:
  • Polarity changes can be performed onsite, without discarding the connector.
  • Field maintenance and testing become easier.
  • Part replacements are straightforward, extending connector life.

📌 In high-density environments where polarity errors are costly, the removable housing is a significant advantage.

Guide Pins: Flat vs. Elliptical

MPO VS. MTP: guide pins different

MPO connector VS. MTP connector: Guide Pins differrent

Alignment is everything in fiber optics. The guide pins ensure that the fibers of two connectors align perfectly.

MPO:

  • Uses flat-ended guide pins.
  • These pins often collide during mating, producing tiny debris and causing wear on the ferrule.
  • Over time, this wear reduces alignment accuracy, increasing insertion loss.

MTP:

  • Employs elliptical stainless steel guide pins.
  • The elliptical shape allows smoother entry, minimizing friction and reducing debris accumulation.
  • The result: more stable alignment across repeated mating cycles.

This mechanical refinement translates directly to cleaner optical connections and improved long-term reliability.

Pin Clamps and Spring Design

While often overlooked, pin clamps and springs play a critical role in connector stability.

MPO:

  • Typically uses plastic pin clamps.
  • These are functional but fragile, prone to breakage with frequent use.
  • Springs are basic, providing limited clearance for alignment adjustments.

MTP:

  • Uses metal pin clamps, offering far greater durability.
  • Breakage risk is drastically reduced, especially in environments where connectors are frequently inserted and removed.
  • The elliptical spring design in MTP provides additional clearance, enhancing alignment accuracy and maintaining stable end-face contact.

Together, these mechanical upgrades ensure that MTP connectors perform reliably over thousands of mating cycles, where MPO connectors might degrade much faster.

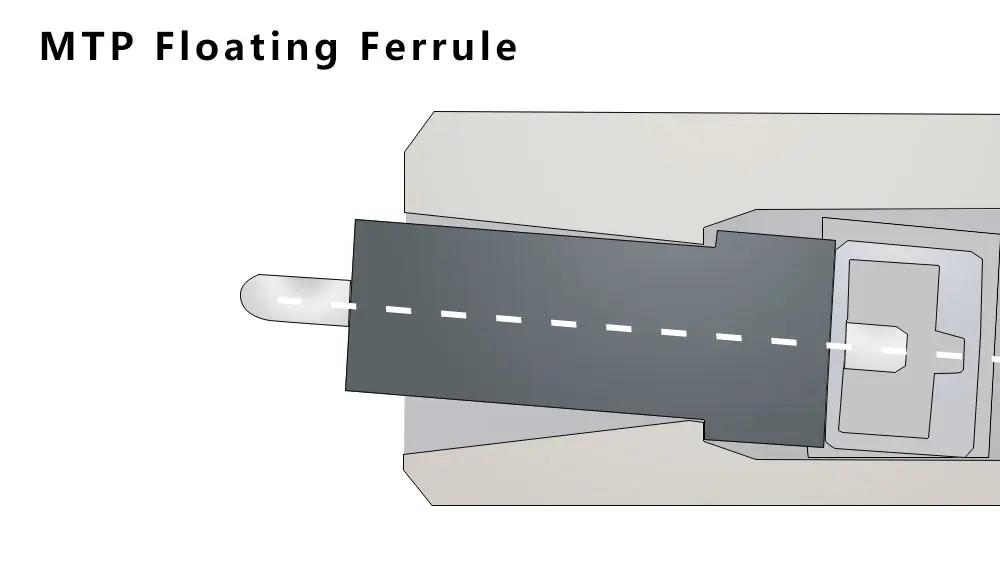

Floating Ferrule Technology

The ferrule is the heart of any fiber optic connector, holding the fibers in precise position.

MPO:

  • The ferrule is fixed within the housing.
  • Any misalignment or external pressure during mating directly stresses the fiber end face.

MTP:

Features floating ferrule technology, this allows the ferrule to move slightly within the housing, automatically adjusting itself during mating.

Benefits include:

  • Maintaining consistent end-face contact even under stress.
  • Compensating for minor misalignment.
  • Reducing long-term wear.

This innovation is one of the main reasons MTP connectors are favored in high-performance, mission-critical networks.

Performance Implications

All these mechanical improvements have a direct impact on optical performance.

MPO Connectors:

  • Suitable for short-reach connections where cost is a priority.
  • Insertion loss values are typically higher, making them less ideal for long-haul or ultra-high-speed transmission.

MTP Connectors:

  • Offer lower insertion loss and more consistent performance thanks to tighter tolerances and better alignment.
  • Especially advantageous in 400G/800G data centers, where link budgets are tight and even small variations matter.
  • Their longer lifespan and stability make them more cost-effective in demanding environments, despite higher upfront cost.

📌 While the performance gap in raw numbers (such as dB of insertion loss) may appear small, the cumulative impact across hundreds or thousands of connectors in a data center is significant.

MPO vs MTP: Performance Comparison

When evaluating fiber optic connectors, two performance metrics dominate the discussion: insertion loss (IL) and return loss (RL). These directly determine signal quality, link reliability, and overall network performance.

Here’s a simplified comparison:

Parameter MPO MTP Impact in Practice
Insertion Loss (IL)
~0.35 dB (typical)
~0.25 dB (typical)
Lower IL in MTP allows more connections in the same channel before exceeding link budget.
Return Loss (RL)
>20 dB (standard)
>25 dB (enhanced)
Higher RL stability reduces signal reflection, improving high-speed transmission.

📌 From a purely technical standpoint, MTP outperforms MPO in almost every category. However, the real question is: does this performance gap justify the cost difference?

Price vs. Performance: Is MTP Really Worth It?

We all know MTP connectors are superior in design and quality — but do you really need them for your project?

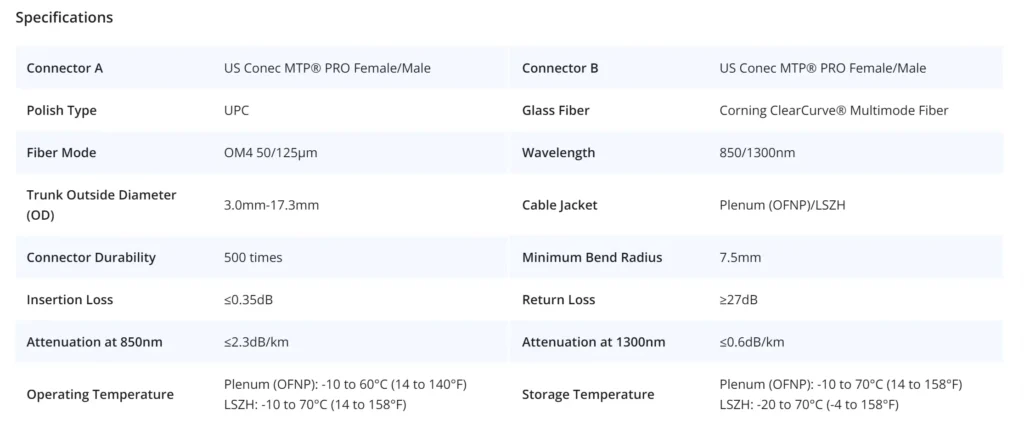

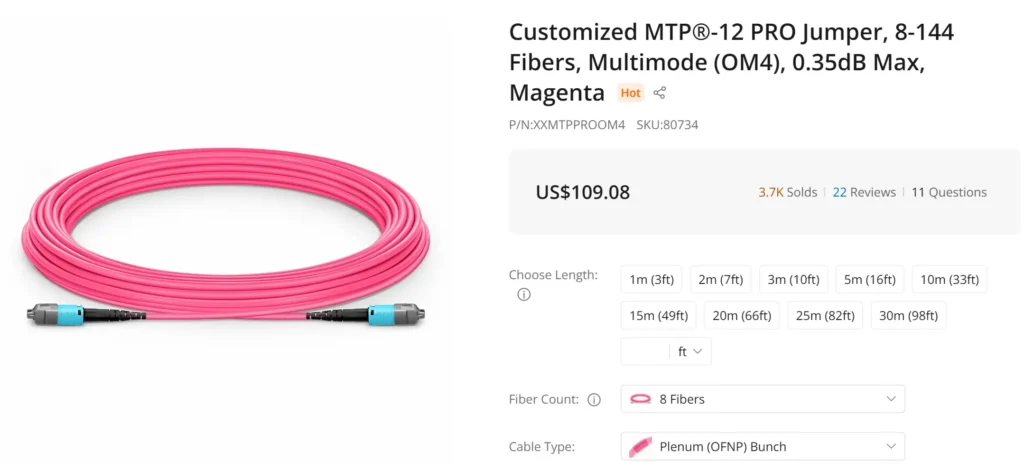

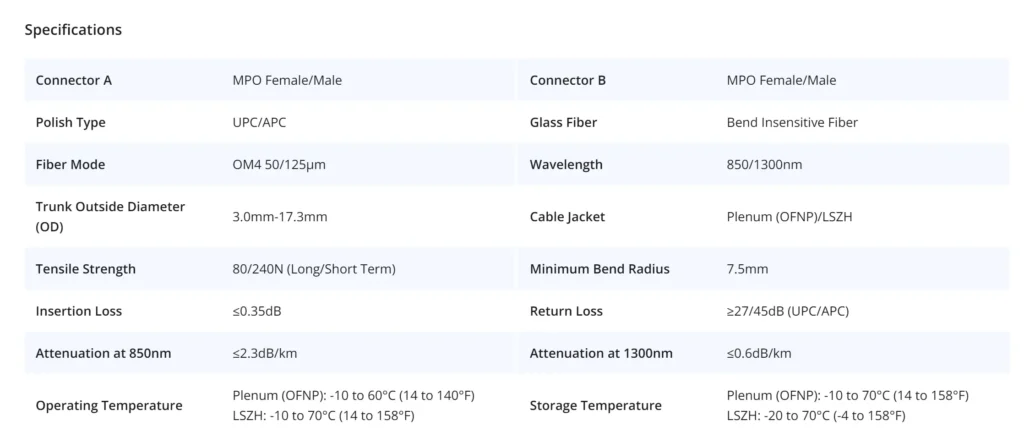

Let’s look at  MPO and MTP price example from FS.com:

  • MPO-12 Jumper (OM4, 1m): $36
  • MTP®-12 PRO Jumper (OM4, 1m): $109.08
  • MPO assemblies typically use standard optical fibers, while MTP assemblies often incorporate premium fibers from brands like Corning. As a result, MTP products generally come at a significantly higher price due to the superior material quality.

That’s a 3x price difference for products that, on paper, share the same maximum insertion loss specification (0.35 dB). And FS is not alone — across most brands, MTP connectors cost two to three times more than MPO equivalents. In addition, if you’re an experienced buyer with the right connections, you may even source MPO jumpers from factories at 30%–50% lower prices than FS offers — with identical quality. Of course, that requires a rigorous vendor qualification and testing process, which is a topic for another day.

So the key question becomes:

Are MTP’s performance advantages worth paying two or three times the price?

Let’s take it easy, think of MPO and MTP in terms of scores:
MPO ≈ 85 points
MTP ≈ 90–95 points
Both are passing, both are reliable — but MTP pushes closer to perfection.

For a small deployment with just a few links, that 5–10 point gap may not matter much. But in a large-scale data center, with hundreds or thousands of connectors, those small differences compound dramatically. Suddenly, the margin between 85 and 90 feels like the difference between “good enough” and “mission-critical.”

Real-World Scenarios

  • Enterprise LAN: A medium-sized business deploying a few MPO patch cords for short distances may find MPO perfectly adequate. Paying triple for MTP would bring little practical benefit.
  • Hyperscale Data Center: With 400G/800G links, tight loss budgets, and thousands of connections, MTP’s lower insertion loss and superior durability pay off in fewer failures, less downtime, and reduced maintenance costs.
  • Telecom Backbone: For long-haul transmission where every 0.1 dB matters, MTP helps maximize link budgets and minimize risk.

A Perspective Rarely Discussed

Most articles conclude simply: “MTP is better.” While that’s true, it’s incomplete. The real conversation should be about value, not just performance.

  • If your goal is extreme reliability and lowest possible loss, MTP is the right choice.

  • If your goal is “good enough” performance at a fraction of the cost, MPO may be the smarter investment.

In other words, you must ask yourself: Do you need the best of the best, or just a reliable, cost-effective solution?

When to Choose MPO

  • Cost-sensitive projects with limited budgets.
  • Enterprise networks or campus backbones where insertion loss budgets are not extremely tight.
  • Short-reach connections (40G/100G over OM3/OM4) where MPO’s performance is sufficient.
  • Scenarios where volume is high and price difference directly affects ROI.

When to Choose MTP

  • Hyperscale data centers and cloud providers running 400G/800G links.
  • Environments with high mating cycles (frequent patching, testing, or reconfiguration).
  • Telecom operators managing long-haul or metro networks with strict optical budgets.
  • Any project where performance, stability, and long-term reliability outweigh initial cost.

The Bigger Picture

The MPO vs MTP debate is not just about connectors. It reflects the broader tension in network design:

  • Cost vs Performance
  • “Good enough” vs “Future-proof”
  • CapEx vs OpEx

Making the right choice means balancing these trade-offs against your organization’s priorities.

In Summary

MPO and MTP connectors share the same foundation, but MTP’s mechanical enhancements translate into lower loss, better alignment, and longer durability. These advantages are undeniable — but they come at a significant premium.

If budget is tight and your application doesn’t push the limits of performance, MPO is more than capable. If you’re building a hyperscale, mission-critical network where every 0.1 dB counts, MTP is worth every extra dollar.

At the end of the day, the decision isn’t simply about which connector is “better.” It’s about which is better for your specific needs. Do you want peak performance at a premium, or a reliable, cost-efficient solution that gets the job done?
